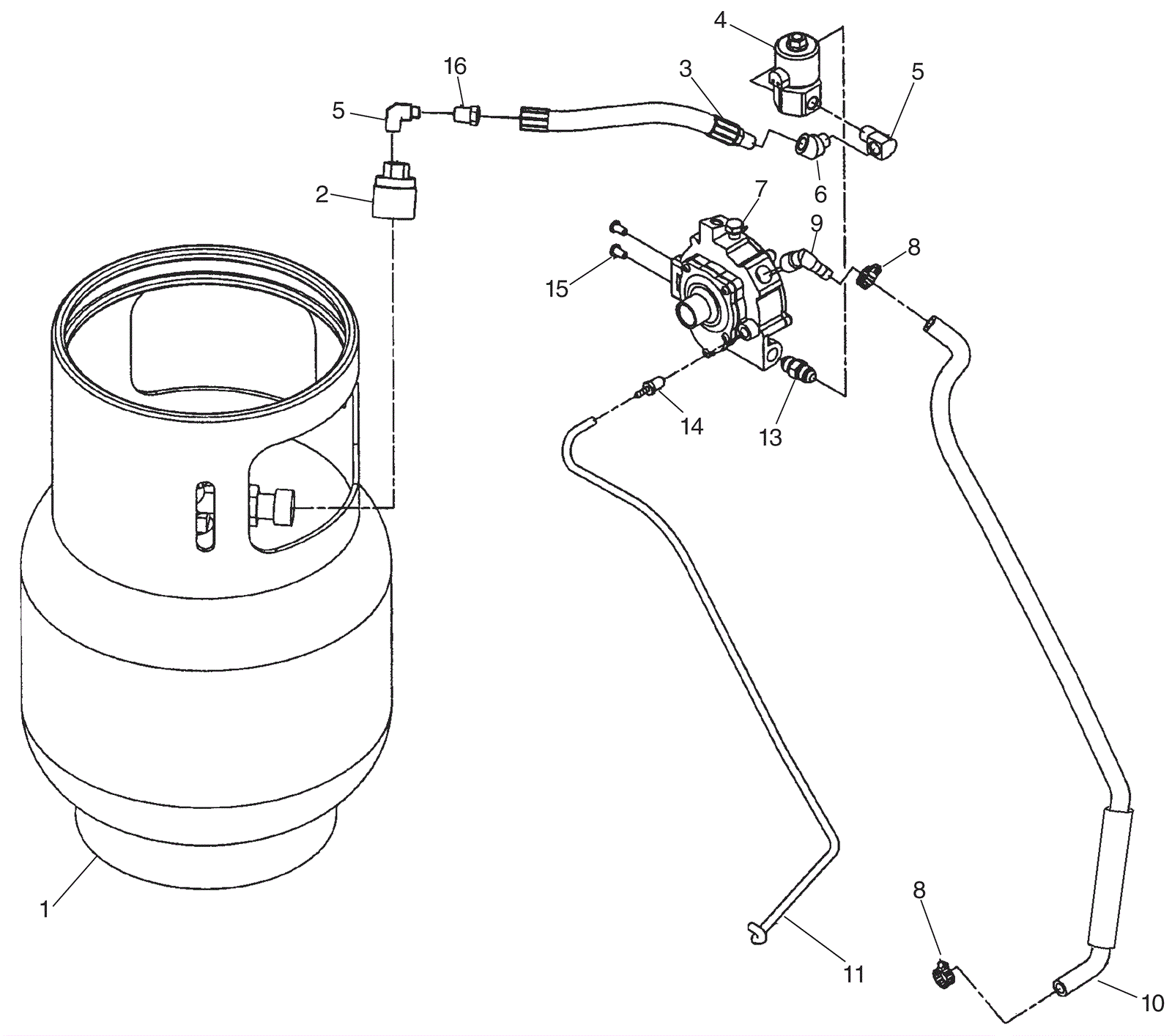

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
161-0003
|
Aluminum propane tank |
1 |
|
|
1b |
161-0004
|
Steel propane tank |
1 |
|
|
2 |
991-6004
|
Female quick coupler |
1 |
|
|
3 |
170-3180
|
3/8 inch propane hose |
1 |
|
|
4 |
991-6015
|
12V fuel lock off (Model 121) |
1 |
|
|
5 |
160-0054
|
45 degree elbow fitting |
2 |
|
|
6 |
170-1784
|
Elbow 1/4 (OBSOLETE) |
1 |
|
|
7 |
991-6001
|
Fuel regulator (T60) |
1 |
|
|
8 |
997-2002
|
Hose clamp #6 |
2 |
|
|
9 |
170-3120
|
Hose barb elbow |
1 |
|
|
10 |
170-7873
|
3/8 inch hose assembly with insert |
1 |
|
|
11 |
991-1403
|
Vacuum hose (sold by the foot) |
2.5 ft |
|
|
13 |
170-3055
|
1/4 hex nipple |
1 |
|
|
14 |
160-0052
|
Fitting 1/4 barb x 1/4mp |
1 |
|
|
15 |
999-0323
|
Screw 1/4-20 x 1/2 pan head slotted zinc plated |
2 |
|
|
16 |
170-3181
|
Check valve |
1 |
|
|
