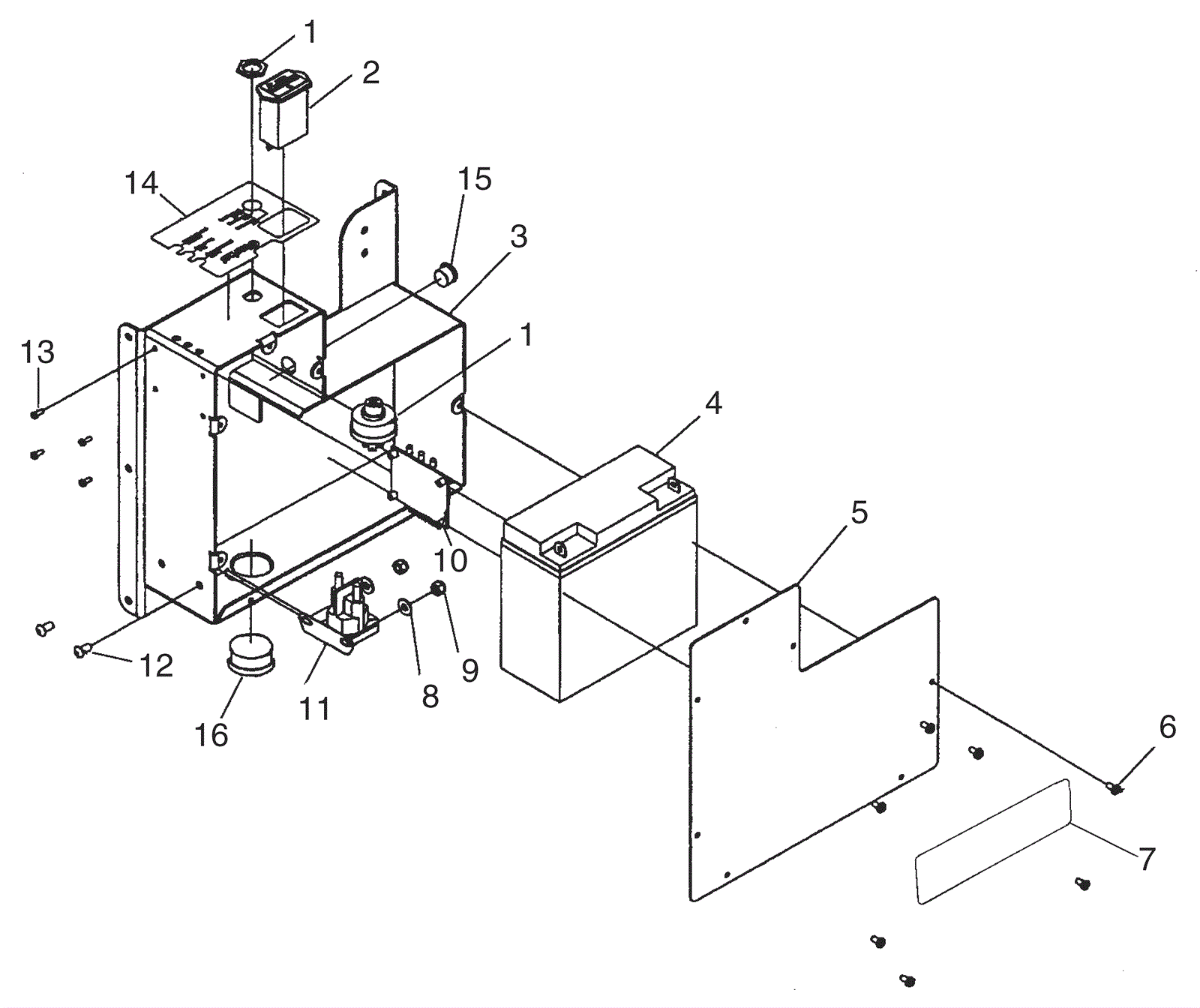

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
169-0016
|
Key switch assembly with two keys |
1 |
|
|
1b |
991-1901
|
Key |
1 |
|
|
2a |
170-0052
|
Hour meter |
1 |
(OEM) |
|
2b |
991-7137
|
Hour meter |
1 |
(NON-OEM) |
|
3 |
170-1971
|
Control box weldment |
1 |
|
|
4 |
162-0006
|
12V 18Ah AGM battery (size 6) |
1 |
|
|
5 |
170-1972
|
Control box cover |
1 |
|
|
6 |
999-0321
|
Screw 10-32 x 3/8 pan head slotted zinc plated |
7 |
|
|
7 |
270-0036
|
PBU decal |
1 |
|
|
8 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
9 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
10 |
170-1974
|
Carb guard circuit board with three lights (OBSOLETE) |
1 |
|
|
11 |
170-3062
|
12V starter solenoid |
1 |
|
|
12 |
999-0323
|
Screw 1/4-20 x 1/2 pan head slotted zinc plated |
2 |
|
|
13 |
999-0463
|
Screw 6-32 x 3/8 pan head slotted zinc plated |
4 |
|
|
14 |
170-1975
|
Carb guard decal (OBSOLETE) |
1 |
|
|
15 |
270-0037
|
Bushing |
1 |
|
|
16 |
270-0038
|
Bushing (OBSOLETE) |
1 |
|
|
