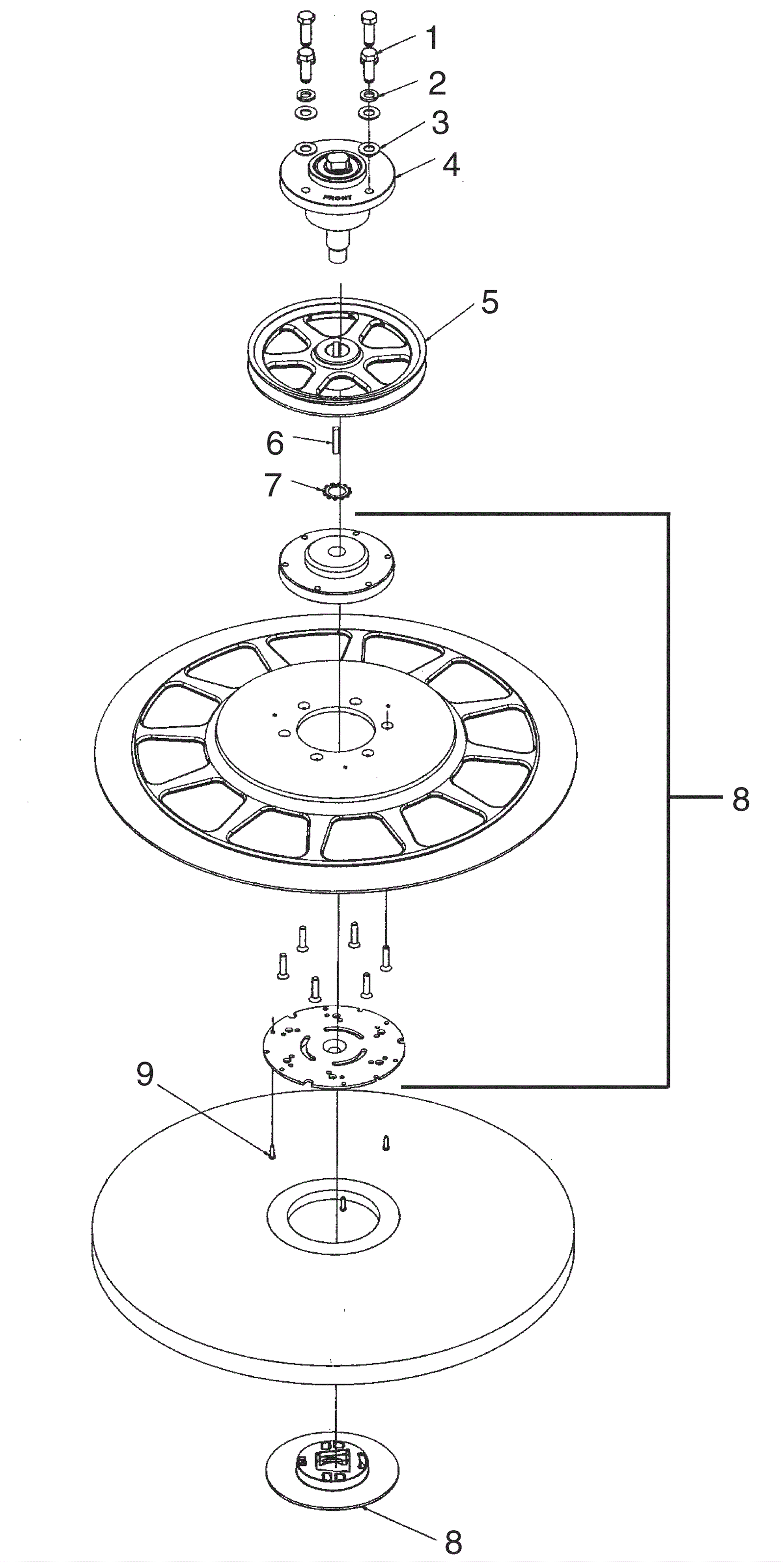

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0043
|
Bolt 7/16-20 x 1 1/4 hex head grade 5 zinc plated |
4 |
|
|
2 |
999-0044
|
Washer 7/16 medium split lock |
4 |
|
|
3 |
170-0304
|
Washer 15/32 x 1/32 |
4 |
|
|
4 |
170-1996
|
Bearing assembly (OBSOLETE) |
1 |
|
|
5 |
170-3072
|
7.5 inch pulley (OBSOLETE) |
1 |
|
|
6 |
170-3075
|
Square keyway |
1 |
|
|
7 |
999-0854
|
Washer 3/4 external lock zinc plated |
1 |
|
|
8a |
170-1997
|
21 inch pad driver assembly |
1 |
|
|
8b |
189-8297
|
27 inch pad driver assembly flex |
1 |
|
|
9 |
999-0678
|
Screw 8-18 x 5/8 pan head self-drilling stainless steel |
3 |
|
|
10 |
170-3102
|
21 inch pad driver assembly steel |
1 |
|
|
N/S |
170-1998
|
B-47 v-belt |
1 |
|
|
N/S |
991-2206
|
Center-Lok 3 pad holder |
1 |
|
|
