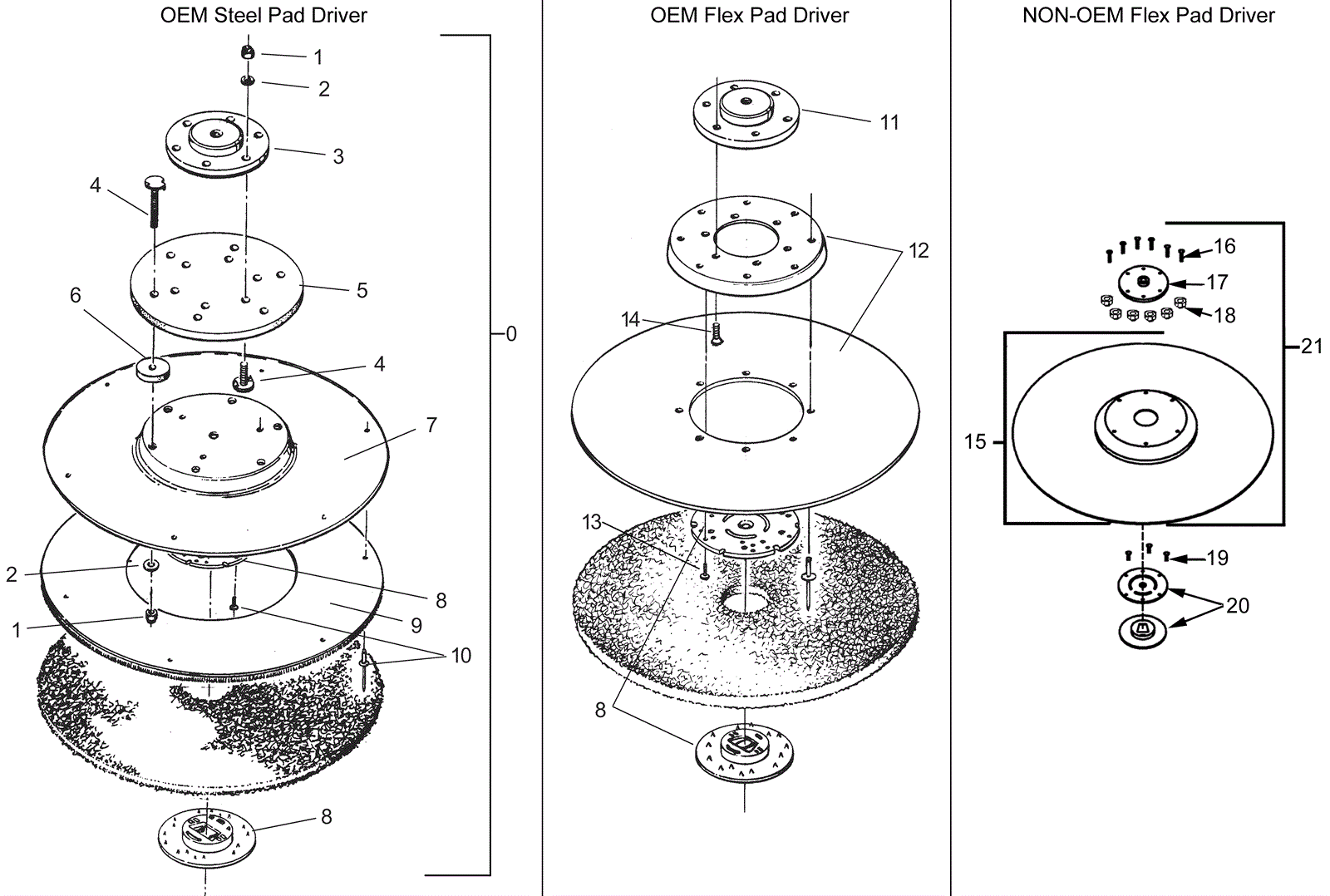

PBU 2113B Pad Driver Assembly

#PartDescriptionPriceReqNotesAvailability
0a 170-3102 21 inch pad driver assembly steel $1,681.81 1 21 inch usually ships 1-5 days
0b 170-3104 24 inch pad driver assembly (OBSOLETE) $585.56 1 24 inch usually ships 1-5 days
0c 170-3105 27 inch pad driver assembly $671.43 1 27 inch ships same day
1 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 12 21, 24, and 27 inch ships same day
2 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 12 21, 24, and 27 inch ships same day
3 170-3092 Shaft plate steel (OBSOLETE) $57.75 1 21, 24, and 27 inch usually ships 16-41 days
4 170-3093 Elevator bolt $11.99 12 21, 24, and 27 inch usually ships 16-41 days
5 170-3094 Belting coupler $72.17 1 21, 24, and 27 inch usually ships 16-41 days
6 170-3095 Coupling spacer (OBSOLETE) $11.00 6 21, 24, and 27 inch usually ships 16-41 days
7a 170-3096 21 inch powder coated steel disk (OBSOLETE) $908.82 1 21 inch usually ships 1-5 days
7b 170-3097 24 inch powder coated disk (OBSOLETE) $76.87 1 24 inch usually ships 1-5 days
7c N/A Not available Call for price 1 (27 inch powder coated steel disk) usually ships 3-26 days
8 991-2206 Center-Lok 3 pad holder $35.50 1 21, 24, and 27 inch and 21 inch flex ships same day
9b 170-6228 24 inch pad gripper (OBSOLETE) $108.64 1 24 inch usually ships 16-41 days
9c 170-6229 27 inch pad gripper $94.53 1 27 inch usually ships 16-41 days
10a 170-3101 Aluminum pop rivet $11.99 11 21 inch usually ships 1-5 days
10b 170-3101 Aluminum pop rivet $11.99 23 24 and 27 inch usually ships 1-5 days
11 270-0046 Shaft plate flex $110.44 1 21 inch flex usually ships 16-41 days
12 270-0047 21 inch pad driver flex $231.75 1 21 inch flex usually ships 16-41 days
13 999-0678 Screw 8-18 x 5/8 pan head self-drilling stainless steel $0.99 3 21 inch flex ships same day
14 999-0538 Screw 1/4-20 x 1 flat head slotted stainless steel $0.99 6 21 inch flex ships same day
15a 996-5061 21 inch flex and riser assembly $167.72 1 ships same day
15b 996-5059 27 inch flex and riser assembly $163.44 1 usually ships 3-26 days
16 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 6 ships same day
17 991-8516 5 inch flange $138.81 1 usually ships 3-12 days
18 999-0069 Nut 5/16-18 hex $0.99 6 ships same day
19 999-1296 Screw 12 x 5/8 pan head phillips $0.99 3 ships same day
20a 991-2201 Center-Lok II pad holder - right hand thread (black) $28.62 1 ships same day
20b 991-2202 Big mouth pad holder set (blue) $17.75 1 (NON-OEM) ships same day
20c 991-8577 Pad retainer $19.76 1 (NON-OEM) ships same day
21a 996-6106 21 inch complete pad driver assembly $189.00 1 (includes 15-18) usually ships 1-5 days
21b 996-6107 27 inch complete pad driver assembly $200.65 1 (includes 15-18) ships same day
