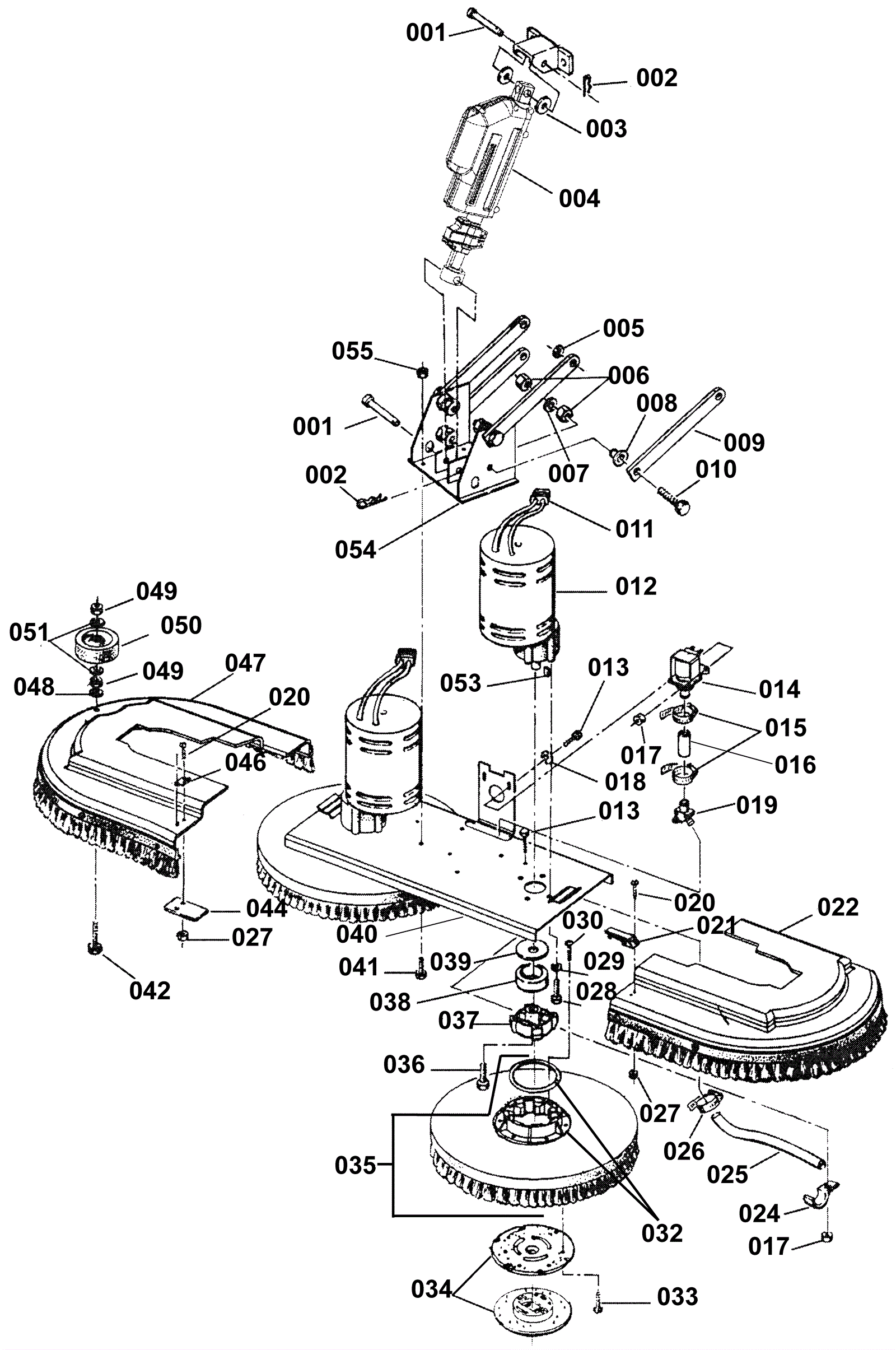

FOCUS L28 Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-0196 Clevis pin $12.31 2 usually ships 16-41 days
002 997-2516 Cotter pin $0.99 2 ships same day
003 170-7007 Nylon spacer $10.52 2 usually ships 1-5 days
004a 170-7425 Actuator and tube assembly (S and D series machines only) $1,571.79 1 (S series) usually ships 1-5 days
004b 170-7426 Actuator and tube assembly (for L series machines only) $850.85 1 (L series) usually ships 1-5 days
005 170-0705 Washer 1/2 x 3/64 $2.70 4 usually ships 4-15 days
006 999-0714 Nut 1/2-20 hex jam stainless steel $1.25 16 ships same day
007 999-0126 Washer 1/2 split lock $1.28 8 ships same day
008 170-0212 Flanged bearing $12.73 8 usually ships 1-5 days
009 170-0211 Linkage bar $79.20 4 usually ships 1-5 days
010 999-0711 Bolt 1/2-20 x 1 1/2 hex head grade 5 zinc plated $1.63 8 ships same day
011a 170-0218 Contact pins for charger plug (sold individually) $9.26 4 usually ships 16-41 days
011b 170-0009 Connector housing $16.95 4 ships same day
012a 170-0209 36V brush motor assembly $1,789.15 2 (OEM) usually ships 1-5 days
012b 991-2122 36V .75HP brush motor assembly with gear box $1,099.40 2 (NON-OEM) (you will also need to order 999-0130) ships same day
012c 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish $0.99 2 (for NON-OEM brush motor) ships same day
012d 991-8524 36V 1.0HP brush motor assembly with gear box $1,044.51 2 (NON-OEM) usually ships 5-16 days
013 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
014 170-7011 Solenoid valve $254.96 1 usually ships 1-5 days
015 997-2001 Hose clamp $2.42 2 ships same day
016 170-7012 Hose $9.50 1 usually ships 16-41 days
017 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 5 ships same day
018 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
019 170-7013 Solution splitter $23.01 1 usually ships 16-41 days
020 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 4 ships same day
021 170-7019 Brush deck latch $41.15 1 ships same day
022a 170-7427 28 inch left brush housing $42.60 1 (skirt trim not available separately) ships same day
022b 170-7428 33 inch left brush housing $213.55 1 (skirt trim not available separately) usually ships 16-41 days
024 170-0198 Hose clamp $10.85 2 ships same day
025 170-7018 Hose $10.85 2 usually ships 16-41 days
026 997-2001 Hose clamp $2.42 2 ships same day
027 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 4 ships same day
028 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 8 ships same day
029 999-0659 Washer 3/8 medium split lock stainless steel $0.39 8 ships same day
030 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated $0.99 6 ships same day
032 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages Call for price 2 usually ships 3-26 days
033 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 6 ships same day
034 991-2206 Center-Lok 3 pad holder $35.50 2 usually ships 6-18 days
035 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages Call for price 2 usually ships 3-26 days
036 170-1599 Screw 5/16-18 x 3/4 socket head nylock $5.39 2 usually ships 16-41 days
037a 170-0207 Male gimbal with collar $18.08 2 ships same day
037b 170-0207 Male gimbal with collar $18.08 ships same day
038 170-0233 Brush driver collar - See pop-up (OBSOLETE) $9.02 2 usually ships 16-41 days
039 170-0706 Washer 3/4 rubber $10.85 2 usually ships 16-41 days
040a 170-7021 28 inch brush plate $320.45 1 usually ships 1-5 days
040b 170-7431 33 inch brush plate $380.05 1 usually ships 1-5 days
041 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 4 ships same day
042 999-0712 Screw 3/8-16 x 2 1/2 truss head slotted stainless steel $11.77 1 ships same day
044 170-7026 Latch tab $11.57 1 ships same day
046 170-7029 Keeper $3.75 1 ships same day
047a 170-7432 28 inch right brush housing $47.32 1 (skirt trim not available separately) ships same day
047b 170-7433 33 inch right brush housing $213.55 1 (skirt trim not available separately) usually ships 16-41 days
048 999-0659 Washer 3/8 medium split lock stainless steel $0.39 1 ships same day
049 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 2 ships same day
050 170-0163 Guide wheel $34.87 1 usually ships 16-41 days
051 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
053 164-0132 Square keyway 1/4 x 1/4 $4.95 2 usually ships 1-5 days
054 170-7009 Brush head mounting bracket (OBSOLETE) $105.05 1 usually ships 16-41 days
055 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 6 ships same day
N/S 170-0226 Moving warning decal $16.95 2 (attaches to brush motor) usually ships 1-5 days
