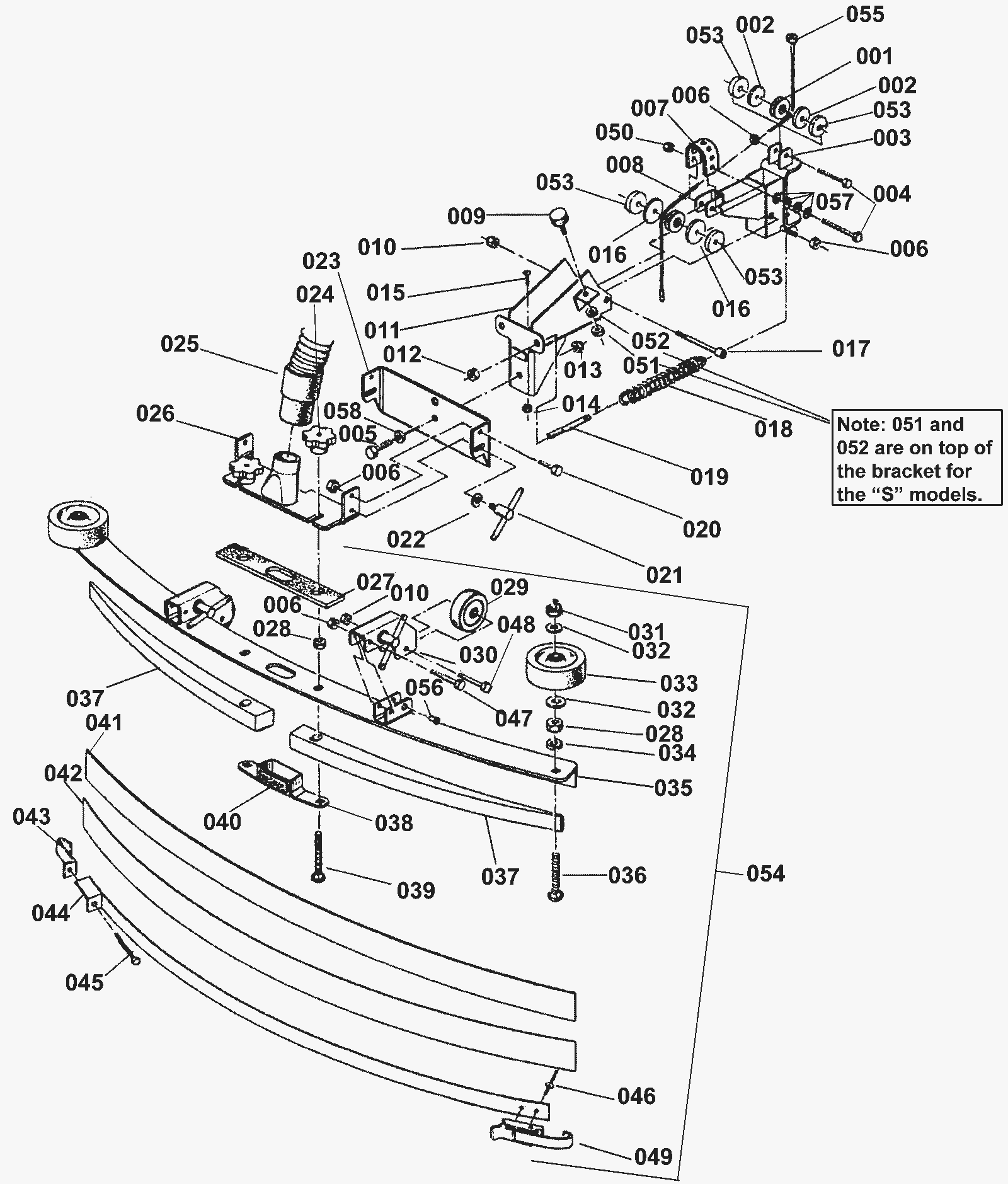

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
372-2615
|
Squeegee pulley cable |
2 |
|
|
002 |
170-7109
|
Washer 1 1/4 nylon |
2 |
|
|
003 |
170-7110
|
Front swing arm |
1 |
|
|
004 |
999-0506
|
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
2 |
|
|
005 |
999-0649
|
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
1 |
|
|
006 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
6 |
|
|
007 |
170-7111
|
Strap |
1 |
|
|
008 |
170-7112
|
Lower cable |
1 |
|
|
009 |
170-7113
|
Bumper |
1 |
|
|
010 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
3 |
|
|
011 |
170-7114
|
Rear swing arm |
1 |
|
|
012 |
999-0069
|
Nut 5/16-18 hex |
2 |
|
|
013 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
|
014 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
|
015 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
1 |
|
|
016 |
170-7115
|
Washer 1 1/2 x 1/8 flat nylon |
2 |
|
|
017 |
170-2069
|
Screw 3/8-16 x 2 shoulder |
1 |
|
|
018 |
170-7116
|
Squeegee pressure spring |
2 |
|
|
019 |
170-7117
|
Stud (OBSOLETE) |
2 |
|
|
020 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
|
021 |
170-0714
|
T-handle |
3 |
|
|
022 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
023 |
170-7118
|
Squeegee mounting bracket |
1 |
|
|
024 |
170-0171
|
Knob |
2 |
|
|
025 |
170-7084
|
Squeegee vacuum hose with 1 cuff |
1 |
|
|
026 |
170-7119
|
Squeegee hose bracket |
1 |
|
|
027 |
170-9420
|
Gasket |
1 |
|
|
028 |
999-0628
|
Nut 3/8-16 hex jam stainless steel |
4 |
|
|
029 |
170-7121
|
Wheel |
2 |
|
|
030 |
170-7122
|
Wheel mounting bracket |
2 |
|
|
031 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
2 |
|
|
032 |
999-0032
|
Washer 3/8 USS flat plain finish |
4 |
|
|
033 |
170-0163
|
Guide wheel |
2 |
|
|
034 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
2 |
|
|
035a |
170-7123
|
28 inch squeegee weldment (OBSOLETE) |
1 |
|
|
035b |
170-7124
|
33 inch squeegee weldment |
1 |
|
|
035c |
170-1632
|
38 inch squeegee weldment |
1 |
|
|
036 |
999-0712
|
Screw 3/8-16 x 2 1/2 truss head slotted stainless steel |
2 |
|
|
037a |
170-0155
|
28 inch spacer |
2 |
|
|
037b |
170-0154
|
33 inch spacer |
2 |
|
|
037c |
170-0184
|
38 inch spacer |
2 |
|
|
038 |
170-7126
|
Air duct (OBSOLETE) |
1 |
|
|
039 |
999-0887
|
Bolt 3/8-16 x 3 hex head hot dipped galvanized |
2 |
|
|
040 |
170-0166
|
Squeegee gripping pad |
1 |
|
|
041a |
170-0158
|
Squeegee blade 35 7/8 inch gum rubber front (black) |
1 |
(28) (OEM) |
|
041b |
994-0015
|
Squeegee blade 36 inch gum rubber front (black) |
1 |
(28) (NON-OEM) |
|
041c |
170-0157
|
Squeegee blade 40 3/8 inch neoprene front (black) |
1 |
(33) (OEM) |
|
041d |
994-0014
|
Squeegee blade 40 3/8 inch neoprene front (black) |
1 |
(33) (NON-OEM) |
|
041e |
170-0185
|
Squeegee blade 46 1/4 inch neoprene front (black) |
1 |
(38) (OEM) |
|
041f |
994-0017
|
Squeegee blade 46 inch neoprene front (black) |
1 |
(38) (NON-OEM) |
|
042a |
170-0152
|
Squeegee blade 38 1/4 inch gum rubber rear (tan) |
1 |
(28) (OEM) |
|
042b |
994-0012
|
Squeegee blade 33 inch gum rubber rear (tan) |
1 |
(28) (NON-OEM) |
|
042c |
170-0151
|
Squeegee blade 33 inch gum rubber rear (tan) |
1 |
(33) (OEM) |
|
042d |
994-0013
|
Squeegee blade 38 1/4 inch gum rubber rear (tan) |
1 |
(33) (NON-OEM) |
|
042e |
170-0183
|
Squeegee blade 47 3/4 inch gum rubber rear (tan) |
1 |
(38) (OEM) |
|
042f |
994-0016
|
Squeegee blade 48 inch gum rubber rear (tan) |
1 |
(38) (NON-OEM) |
|
043 |
170-0150
|
End clamp (OBSOLETE) |
1 |
|
|
044a |
170-7127
|
29 inch weldment clamp (OBSOLETE) |
1 |
(28) |
|
044b |
170-7128
|
Weldment clamp (OBSOLETE) |
1 |
(33) |
|
044c |
170-1629
|
Weldment clamp |
1 |
(38) |
|
045 |
999-0506
|
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
1 |
|
|
046 |
170-7130
|
Rivet |
2 |
|
|
047 |
999-1064
|
Bolt 1/4-20 x 1 3/4 hex head cap grade 5 zinc plated |
2 |
|
|
048 |
999-0551
|
Bolt 5/16-18 x 1 3/4 hex head stainless steel |
2 |
|
|
049 |
170-7131
|
Squeegee strap latch (OBSOLETE) |
1 |
|
|
050 |
999-0609
|
Nut 1/4-20 hex stainless steel |
1 |
|
|
051 |
999-0190
|
Nut 1/4-20 hex plain finish |
1 |
|
|
052 |
999-0060
|
Washer 1/4 split lock plain finish |
1 |
|
|
053 |
170-7132
|
Washer 1 1/4 |
4 |
|
|
054a |
170-7133
|
28 inch squeegee assembly (OBSOLETE) |
1 |
(includes 006, 010, 027-049 and 056) |
|
054b |
170-7134
|
33 inch squeegee assembly (OBSOLETE) |
1 |
(includes 006, 010, 027-049 and 056) |
|
054c |
170-1636
|
38 inch squeegee assembly (OBSOLETE) |
1 |
(includes 006, 010, 027-049 and 056) |
|
055 |
999-1650
|
Nut 1/4-28 hex jam stainless steel |
1 |
|
|
056 |
170-7136
|
Threaded insert 5-16 x 24 |
2 |
|
|
057 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
058 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
1 |
|
|
