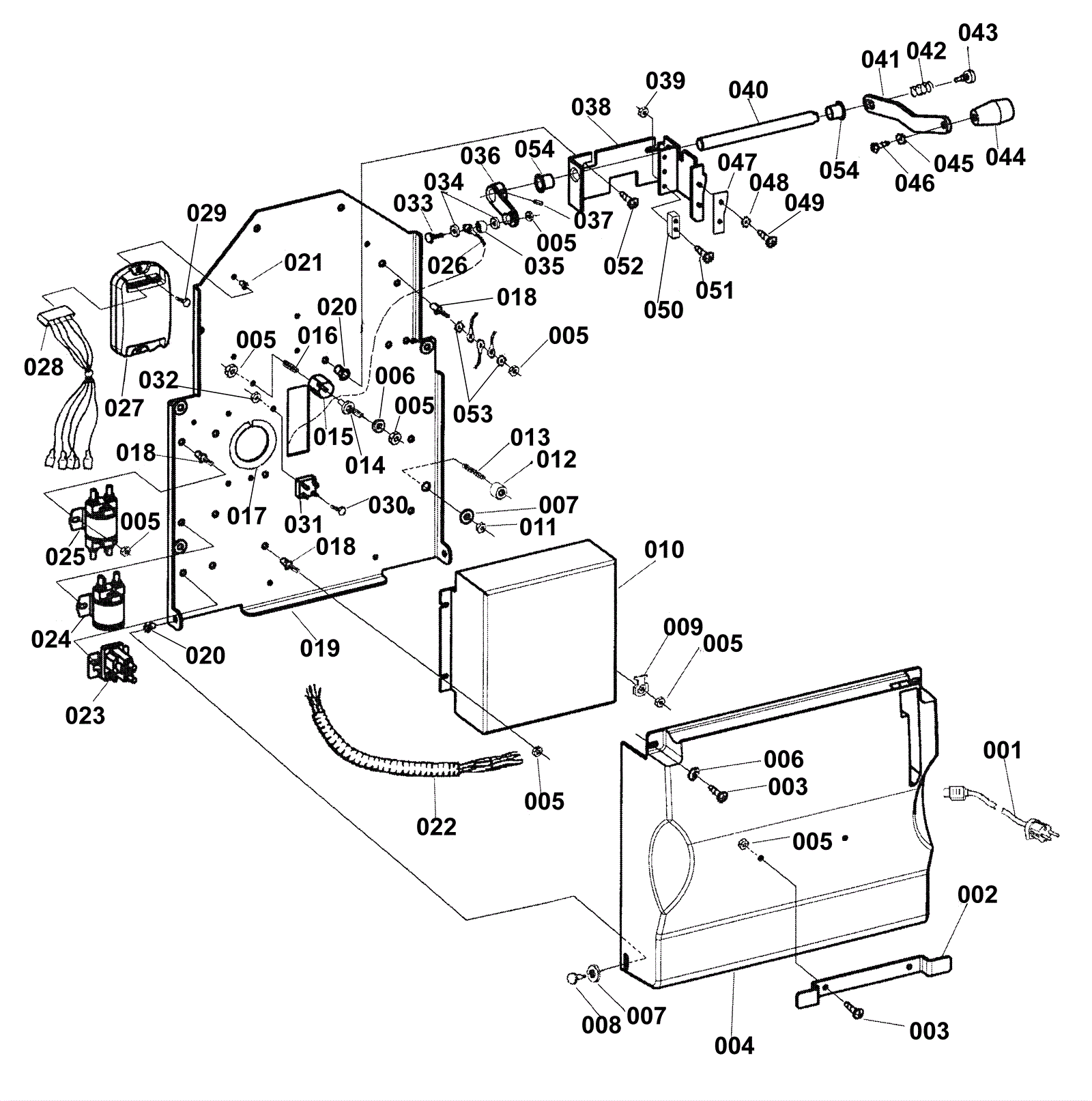

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-7385
|
Onboard charger cord |
1 |
|
|
002 |
170-7386
|
Cord wrapping bracket |
1 |
|
|
003 |
999-0081
|
Screw 1/4-20 x 5/8 pan head slotted zinc |
4 |
|
|
004 |
170-7387
|
Rear cover |
1 |
|
|
005 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
16 |
|
|
006 |
999-0016
|
Washer 1/4 flat plain finish |
3 |
|
|
007 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
|
008 |
170-7389
|
Bolt 5/46 x 1/2 shoulder |
2 |
|
|
009 |
170-7388
|
1/4 tab |
1 |
|
|
010 |
272-2224
|
36V onboard battery charger |
1 |
|
|
011 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
|
012 |
170-7391
|
Spacer |
4 |
|
|
013 |
999-9117
|
Screw 5/16-18 x 1 3/4 socket cup point set stainless steel |
4 |
|
|
014 |
170-0064
|
Stud 1/4-20 |
1 |
|
|
015 |
170-0063
|
Insulated stand off |
1 |
|
|
016 |
999-0715
|
Screw 1/4-20 x 3/4 cup point socket set alloy plain finish |
1 |
|
|
017 |
170-7070
|
Gasket |
1 |
|
|
018 |
170-7074
|
Stud 1/4-20 |
11 |
|
|
019 |
170-7393
|
Electrical panel (OBSOLETE) |
1 |
|
|
020 |
170-7076
|
Insert 1/4-20 |
4 |
|
|
021 |
170-7075
|
Insert 8-32 |
2 |
|
|
022 |
170-7394
|
Main wiring harness - standard (OBSOLETE) |
1 |
|
|
023 |
172-2805
|
36V contactor |
1 |
|
|
024 |
172-2805
|
36V contactor |
1 |
|
|
025 |
272-1322
|
Motor contactor |
1 |
|
|
026 |
170-7064
|
Upper cable assembly |
1 |
|
|
027 |
170-7395
|
Solo controller (OBSOLETE) |
1 |
|
|
028 |
170-7396
|
Traverse harness (OBSOLETE) |
1 |
|
|
029 |
999-1196
|
Screw 8-32 x 1 pan head phillips black oxide stainless steel |
2 |
|
|
030 |
999-0341
|
Nut 5/16-24 hex left hand plain finish |
1 |
|
|
031 |
163-0063
|
240V rectifier |
1 |
|
|
032 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
|
033 |
999-0197
|
Screw 1/4-20 x 1 socket head alloy plain finish |
1 |
|
|
034 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
035 |
170-0117
|
Spacer |
1 |
|
|
036 |
170-7063
|
Lever weldment (OBSOLETE) |
1 |
|
|
037 |
999-0627
|
Screw 5/16-18 x 1/2 socket cup point set ss |
2 |
|
|
038 |
170-7399
|
Squeegee lift bracket (OBSOLETE) |
1 |
|
|
039 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
|
|
040 |
170-7400
|
Squeegee lift shaft (OBSOLETE) |
1 |
|
|
041 |
170-7401
|
Squeegee lift lever (OBSOLETE) |
1 |
|
|
042 |
170-0113
|
Spring (OBSOLETE) |
1 |
|
|
043 |
170-0112
|
Shoulder screw (OBSOLETE) |
1 |
|
|
044 |
170-7402
|
Squeegee lift knob |
1 |
|
|
045 |
999-0201
|
Washer 3/8 internal star lock |
1 |
|
|
046 |
999-0587
|
Screw 3/8-16 x 5/8 round head slotted zinc |
1 |
|
|
047 |
170-0121
|
Wear plate (OBSOLETE) |
1 |
|
|
048 |
154-3992
|
Washer 3/16 star |
2 |
|
|
049 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
|
050 |
170-0111
|
Vacuum switch assembly (OBSOELTE) |
1 |
|
|
051 |
999-0511
|
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
|
052 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
2 |
|
|
053 |
999-0017
|
Washer 1/4 external star lock |
2 |
|
|
054 |
170-0088
|
Flanged bearing (OBSOLETE) |
2 |
|
|
