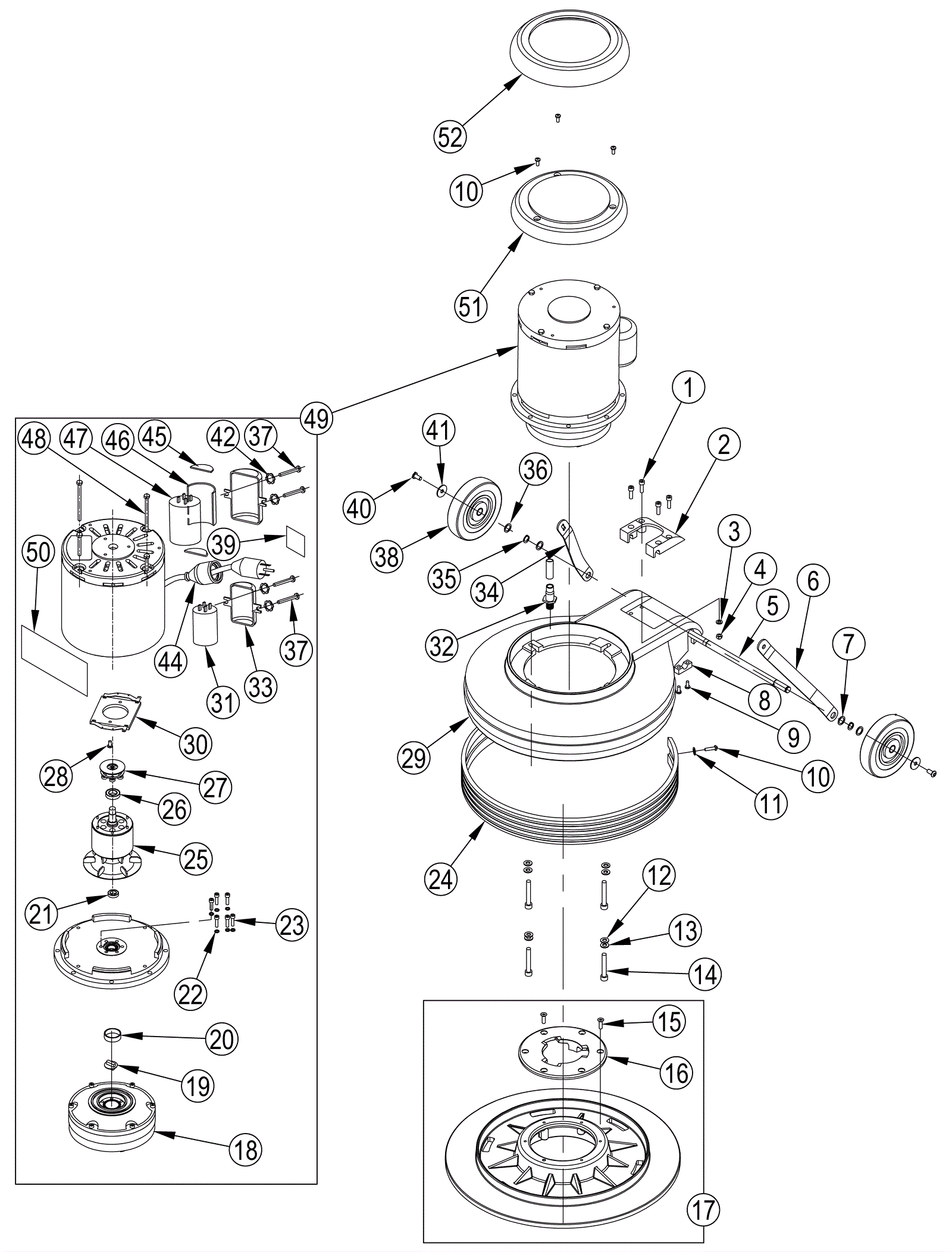

6UFR5 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-0843 Screw M6 x 30mm socket cap $9.71 4 ships same day
2 240-6624 Bracket kit $19.87 1 ships same day
3 240-0367 Washer M6 plain finish $9.71 4 usually ships 16-41 days
4 240-0038 Nut M6 $9.71 4 ships same day
5 240-0844 Axle $17.61 1 usually ships 16-41 days
6 240-0845 Left handle bracket $33.96 1 usually ships 16-41 days
7 240-0769 Washer M13 plain finish $9.71 4 usually ships 16-41 days
8 240-0310 Clamp lock $9.71 2 usually ships 16-41 days
9 240-0066 Screw M5 x 20 self tapping $9.71 4 ships same day
10 240-0067 Screw M5 x 16mm $9.71 5 usually ships 16-41 days
11 240-0068 Plain washer $9.71 4 ships same day
12 240-0043 Plain washer $9.71 4 usually ships 16-41 days
14 240-0216 Screw M8 x 30 $9.71 4 usually ships 16-41 days
15 240-0439 Screw 1/4 x 1 self-tapping $9.71 6 usually ships 16-41 days
16 991-2208 3 hole clutch plate (formerly 6 hole) $7.52 1 ships same day
17a 240-0846 16 inch pad holder $115.52 1 (includes 15 and 16) usually ships 16-41 days
17b 240-0071 19 inch pad holder $148.78 1 (includes 15 and 16) ships same day
18 240-0076 Gear box $672.06 1 usually ships 16-41 days
19 240-0077 Coupling $16.07 1 ships same day
20 240-0078 Sleeve $9.71 1 usually ships 16-41 days
21 240-0849 Bearing $36.07 1 usually ships 16-41 days
22 999-0876 Washer M6 split lock plain finish $0.99 6 ships same day
23 240-0080 Screw M5 x 30 hex socket $9.71 6 usually ships 16-41 days
24a 240-5005 BUMPER 17IN $16.07 1 usually ships 16-41 days
24b 240-5007 BUMPER 20IN $32.55 1 usually ships 16-41 days
25 240-6512 120V motor with gearbox $839.64 1 usually ships 16-41 days
26 240-0856 Bearing $39.03 1 usually ships 16-41 days
27 240-0857 Centrifugal switch $25.36 1 usually ships 16-41 days
28 240-0050 Screw M5 x 10 $9.71 2 usually ships 16-41 days
29a 240-5450 FRAME 17 $231.75 1 usually ships 16-41 days
29b 240-1142 20 inch frame $263.58 1 usually ships 16-41 days
30 240-0858 Stationary switch $31.83 1 usually ships 16-41 days
31 240-0091 Running capacitor $46.92 1 ships same day
32 240-0074 Hose barb $9.71 1 usually ships 16-41 days
33 240-0859 Small capacitor mounting frame $20.35 1 usually ships 1-5 days
34 240-0860 Right handle bracket $33.96 1 usually ships 16-41 days
35 240-0197 External retaining ring $9.71 2 ships same day
36 999-0806 Washer M12 wave zinc plated $1.39 2 ships same day
37 240-0861 Screw M5 x 8mm $9.71 4 usually ships 16-41 days
38 240-0198 5 inch wheel $35.37 2 ships same day
39 240-0110 Read manual decal $12.83 1 usually ships 16-41 days
40 240-0200 Screw M6-1 x 12mm $9.71 2 ships same day
41 240-0199 Washer M6 flat $9.71 2 ships same day
42 240-0186 Washer M5 star lock $9.71 4 ships same day
43 240-0862 Large capacitor mounting frame $20.86 1 usually ships 1-5 days
44 240-0262 Large female plug protector $9.71 1 usually ships 16-41 days
45 240-0863 Clear cover $9.71 4 usually ships 1-5 days
46 240-0864 Capacitor wrap $12.83 2 usually ships 1-5 days
47 240-0090 Starting capacitor $46.92 1 ships same day
48 240-0865 Bolt assembly $9.71 4 usually ships 16-41 days
49 240-0866 110V 1.5HP motor $691.23 1 (includes 18-23, 25-28, 30-31, 33, 37, 39, 42, 44, and 45-48) usually ships 16-41 days
50 240-5470 Clarke decal $9.71 1 usually ships 16-41 days
51 240-1143 Top motor cover $22.41 1 ships same day
52 240-0089 Top cover bumper $17.61 1 usually ships 16-41 days
