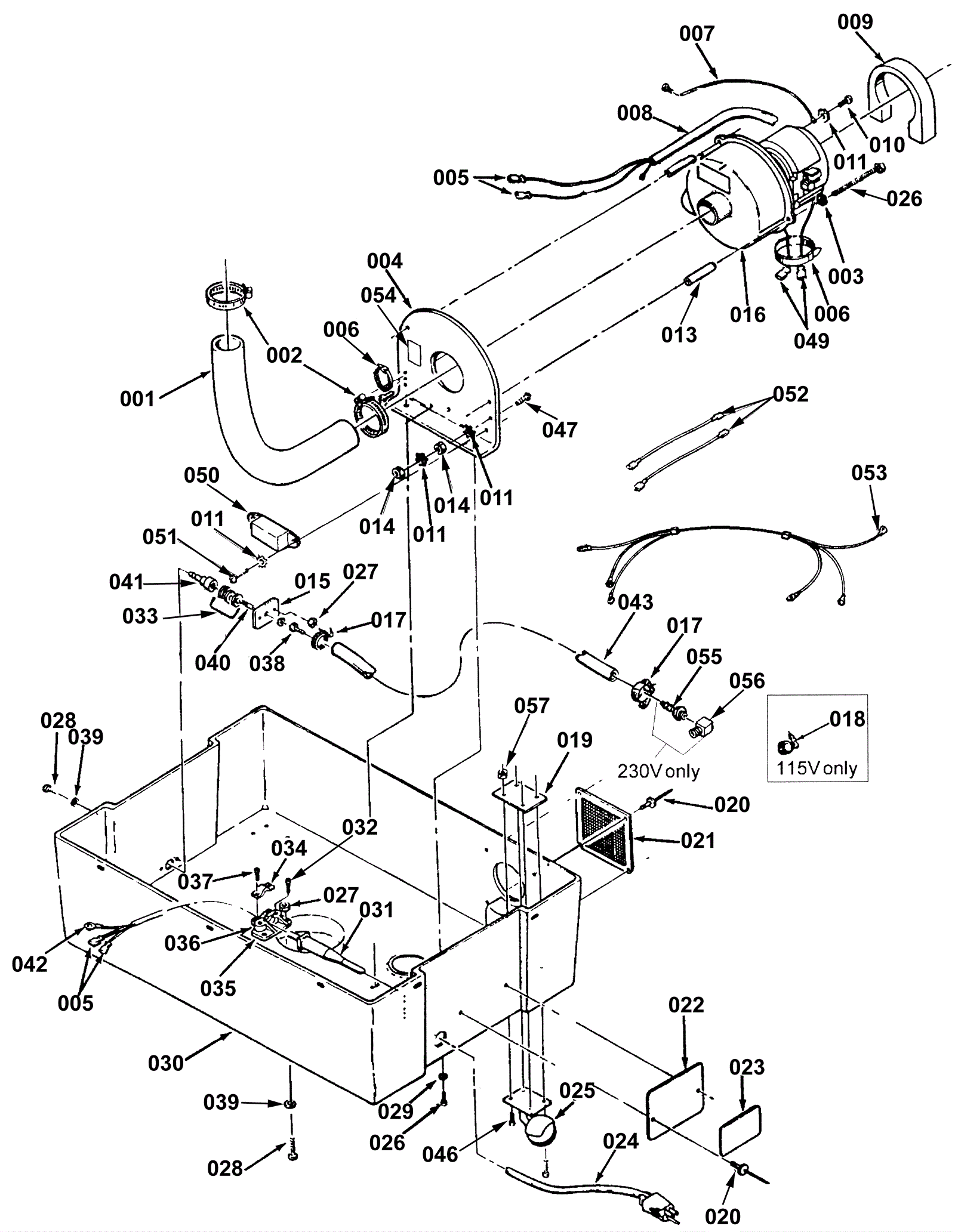

EXT311 Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-3804 Vacuum to tank hose (OBSOLETE) $32.08 1 usually ships 1-5 days
002 997-2000 Hose clamp $2.37 2 ships same day
003 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
004 170-3805 Vacuum motor mount (OBSOLETE) $33.86 1 usually ships 1-5 days
005 170-6013 1/4 terminal $4.00 2 usually ships 1-5 days
006 170-0080 Wire tie $11.99 2 usually ships 16-41 days
007 N/A Not available Call for price 1 Green wire assembly usually ships 3-26 days
008 170-3806 Control harness (OBSOLETE) $37.42 usually ships 1-5 days
009 170-3807 Intake air gasket (OBSOLETE) $10.57 1 usually ships 1-5 days
010 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 1 ships same day
011 999-0311 Washer #10 external star lock zinc plated $0.99 3 ships same day
013 170-3808 Spacer $11.75 3 usually ships 1-5 days
014 170-3809 Nut (OBSOLETE) Call for price 2 usually ships 1-5 days
015 170-6150 Mounting Plate (OBSOLETE) $8.03 1 usually ships 1-5 days
016 170-3336 Vac motor 120V (OBSOLETE) $359.92 1 usually ships 1-5 days
017 997-2001 Hose clamp $2.42 2 ships same day
018 170-6063 Swivel elbow $18.41 1 usually ships 16-41 days
019 170-3810 Nut plate (OBSOLETE) $7.01 4 usually ships 1-5 days
020 170-0775 1/8 inch rivet pop aluminum $11.99 6 usually ships 16-41 days
021 170-2749 Grill-Housing (OBSOLETE) $33.26 1 usually ships 1-5 days
022 170-3811 Label mounting plate (OBSOLETE) Call for price 1 usually ships 1-5 days
023 N/A Not available Call for price 1 Serial number label usually ships 3-26 days
024 170-6129 Power Cord 120 Volt (OBSOLETE) $49.06 1 usually ships 1-5 days
025 170-3812 Ball caster 2 inch (OBSOLETE) $35.05 4 usually ships 1-5 days
026 170-3815 Screw $13.40 3 usually ships 1-5 days
027 999-0062 Nut 10-24 hex $0.99 4 ships same day
028 999-1191 Screw 10-24 x 5/8 round head slotted stainless steel $0.99 4 ships same day
029 999-0016 Washer 1/4 flat plain finish $0.99 5 ships same day
030 170-3813 Rotomold base (OBSOLETE) $256.66 1 usually ships 1-5 days
031 170-6131 Relief Strain (OBSOLETE) $9.68 1 usually ships 1-5 days
032 170-8055 Screw 5mm - 0.8 x 16 pan head phillips $9.27 2 usually ships 1-5 days
033 999-0032 Washer 3/8 USS flat plain finish $2.42 3 ships same day
034 170-8057 Cord clamp (OBSOLETE) $7.92 1 usually ships 1-5 days
035 170-8058 Strain relief bracket (OBSOLETE) $9.03 1 usually ships 1-5 days
036 170-8056 Strain relief clamp (OBSOLETE) $7.01 1 usually ships 1-5 days
037 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated $0.99 2 ships same day
038 170-6149 Adapter $8.80 1 usually ships 1-5 days
039 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
040 170-3123 1/8 close pipe nipple (OBSOLETE) $9.13 1 usually ships 16-41 days
041 991-8149 1/8 inch male quick disconnect $5.93 1 Need 991-8157 to mate ships same day
042 170-1231 Terminal ring $3.52 1 usually ships 1-5 days
043 170-6064 14 inch solution hose $9.13 1 usually ships 1-5 days
046 999-0323 Screw 1/4-20 x 1/2 pan head slotted zinc plated $0.99 12 ships same day
047 999-0389 Screw 10-32 x 1 round head slotted zinc plated $0.99 1 ships same day
049 270-0219 24V I-Drive relay $15.07 2 usually ships 16-41 days
050 170-3826 Filter (OBSOLETE) $470.45 1 usually ships 1-5 days
051 999-0068 Screw 10-32 x 1/4 round head slotted zinc plated $0.99 6 ships same day
052 170-3814 Lead assembly (OBSOLETE) $7.01 2 usually ships 1-5 days
053 170-3816 Grounding harness (OBSOLETE) $31.48 1 usually ships 1-5 days
054 170-6011 Ground symbol decal $5.50 1 usually ships 1-5 days
057 N/A Not available Call for price Washer usually ships 3-26 days
