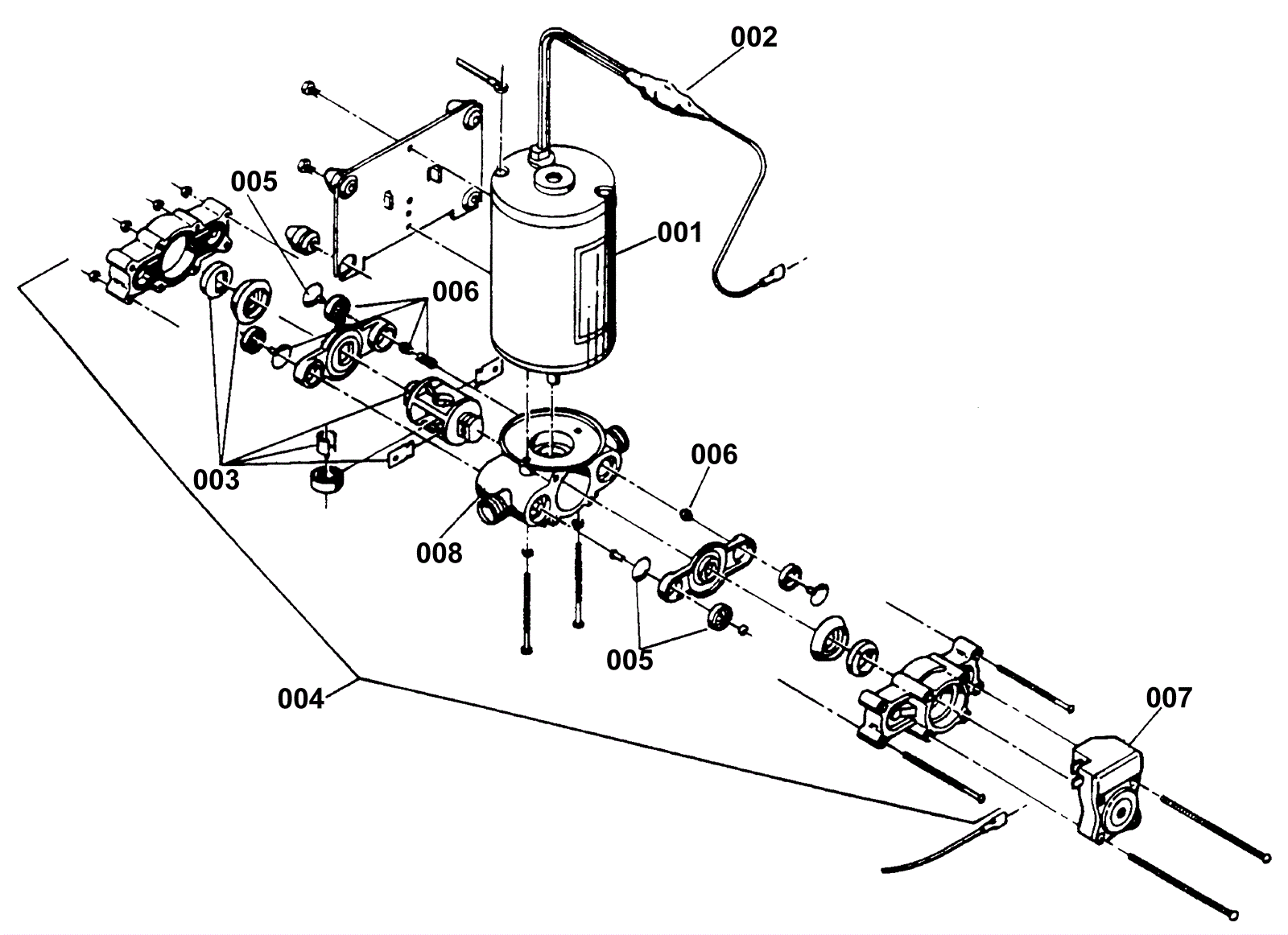

Pump Assembly

#PartDescription ReqNotesAvailability
001 170-4744 Motor (OBSOLETE)
002 170-4745 Rectifier (OBSOLETE)
003 170-4746 Piston and eccentric (OBSOLETE) Includes 2 ring lock, 2 piston cap, 1 eccestric, 1 bearing, 2 plate wear, 1 piston
004 170-4747 Complete head assembly (OBSOLETE)
005 170-4748 Elastomer kit (OBSOLETE) Includes 4 valve seat, 3 valve, 2 diaphragm, 1 valve, 1 o'ring,
006 170-4749 Bypass valve (OBSOLETE) Includes 2 valve seat, 2 valve, 1 spring, 2 stem valve
007 170-4750 Micro switch (OBSOLETE)
008 170-4751 Housing pump (OBSOLETE)
