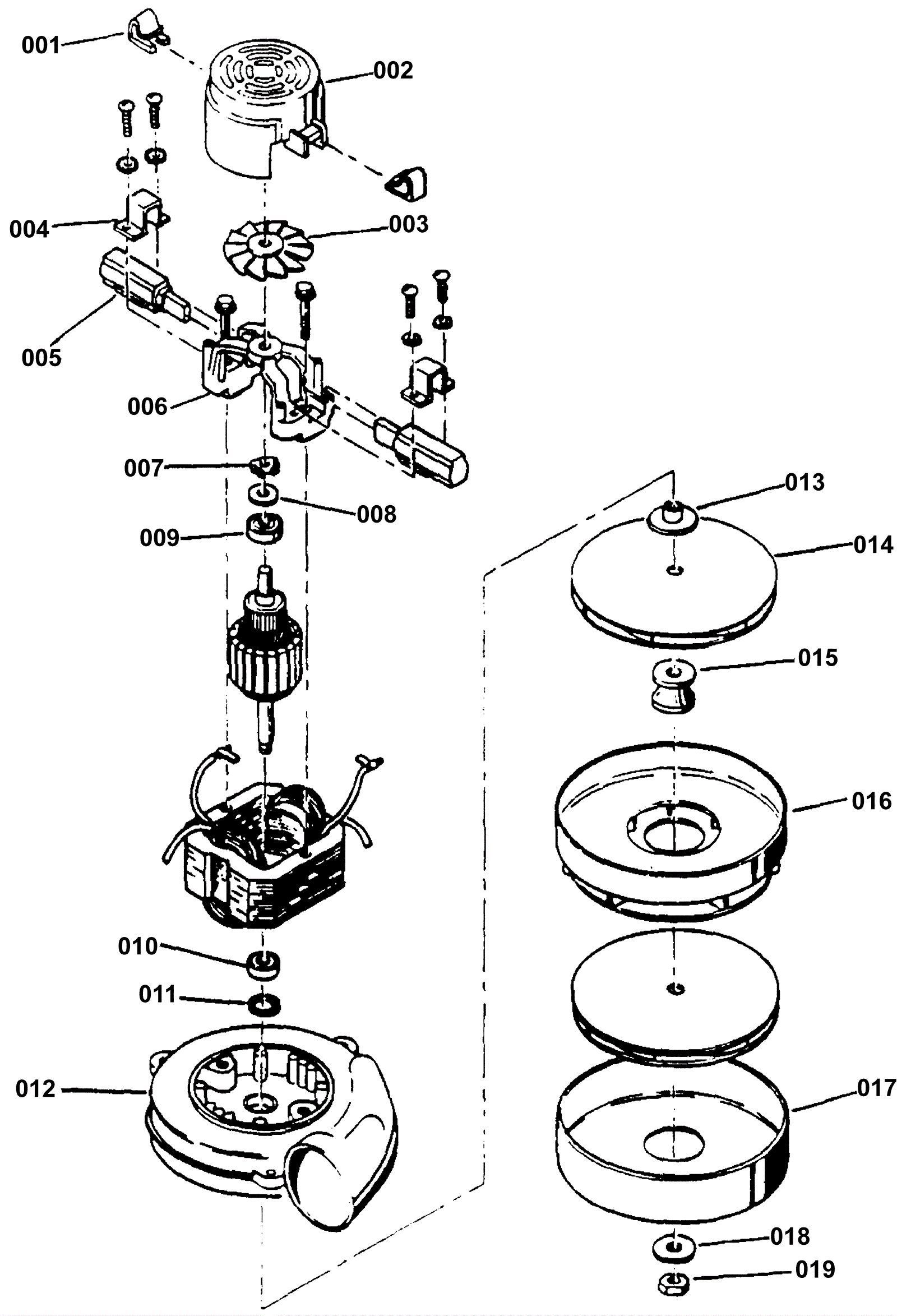

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-0354
|
Clip |
2 |
|
|
002 |
170-0335
|
Armature assembly (OBSOLETE) |
1 |
|
|
003 |
170-0356
|
Vent fan |
1 |
|
|
004 |
170-0358
|
Clamp |
2 |
|
|
005 |
170-4741
|
Carbon brush set of 2 |
1 |
|
|
006 |
170-0359
|
Communicator end bracket |
1 |
|
|
007 |
170-2157
|
Drain Hose (OBSOLETE) |
1 |
|
|
008 |
170-0360
|
Disc (OBSOLETE) |
1 |
|
|
010 |
170-0362
|
Radial ball bearing |
1 |
|
|
011 |
170-0363
|
Washer neoprene |
1 |
|
|
012 |
170-0364
|
Bracket and shell |
1 |
|
|
013 |
170-0365
|
Spacer |
1 |
|
|
014 |
170-0366
|
Rotating fan |
2 |
|
|
015 |
170-0367
|
Spacer (OBSOLETE) |
1 |
|
|
016 |
170-0368
|
Stationary fan |
1 |
|
|
017 |
170-4490
|
Fan shell (OBSOLETE) |
1 |
|
|
018 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
1 |
|
|
019 |
999-0341
|
Nut 5/16-24 hex left hand plain finish |
1 |
|
|
