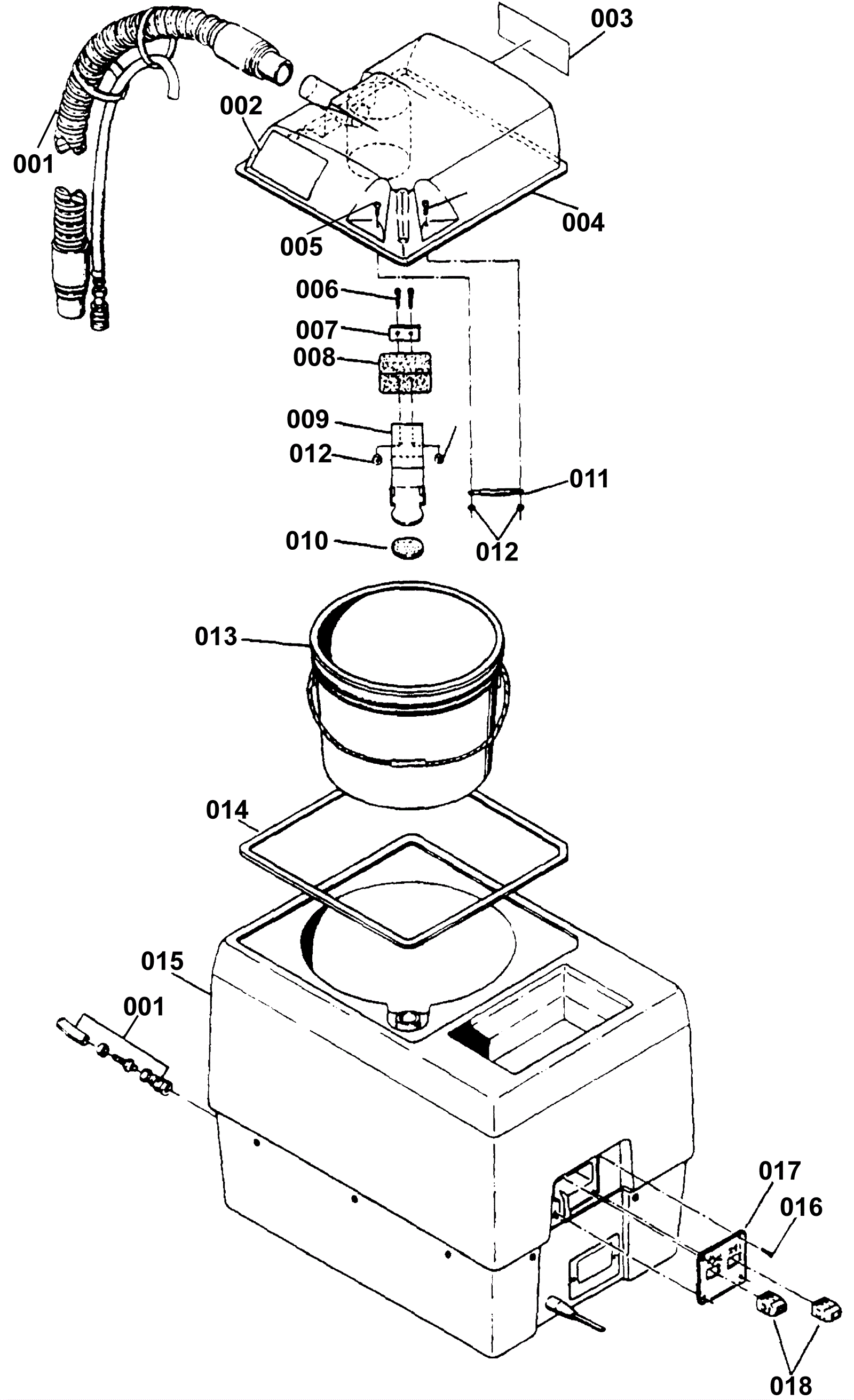

| # | Part | Description |
Req | Notes | Availability |
|---|
002 |
170-3792
|
Warning label (OBSOLETE) |
1 |
|
|
003 |
170-3793
|
Instruction label (OBSOLETE) |
1 |
|
|
004 |
170-4726
|
Dome and label assembly (OBSOLETE) |
1 |
|
|
006 |
170-3795
|
Screw 8x 32 x 2 1/2 pan head |
2 |
|
|
007 |
170-3796
|
Float clamp (OBSOLETE) |
1 |
|
|
008 |
170-0454
|
Squeegee bracket guide |
1 |
|
|
009 |
170-3798
|
Float bracket (OBSOLETE) |
1 |
|
|
010 |
170-3799
|
Float shut-off gasket (OBSOLETE) |
1 |
|
|
011 |
170-3800
|
Float pivet rod (OBSOLETE) |
1 |
|
|
012 |
170-2034
|
Nut 8-32 |
4 |
|
|
013 |
170-4728
|
Recovery pail (OBSOLETE) |
1 |
|
|
014 |
170-3338
|
Dome gasket (OBSOLETE) |
1 |
|
|
015 |
170-4713
|
Tank (OBSOLETE) |
1 |
|
|
016 |
999-0811
|
Screw 10-32 x 3/8 pan head phillips stainless steel |
4 |
|
|
017 |
170-3825
|
Switch plate (OBSOLETE) |
1 |
|
|
018 |
170-6163
|
On/off switch |
2 |
|
|
