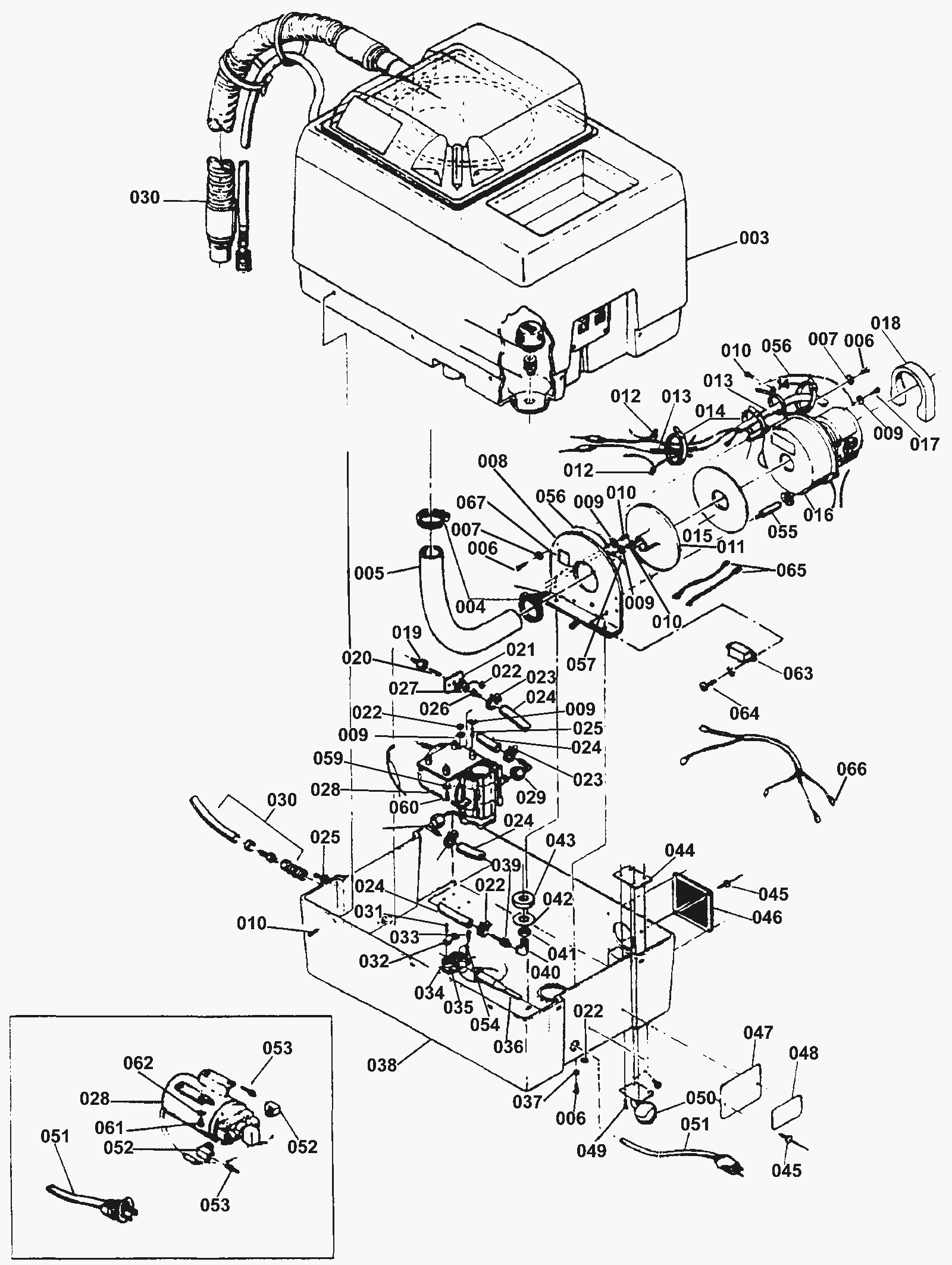

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-6192
|
Solution Tank Strainer (OBSOLETE) |
1 |
|
|
002 |
170-6193
|
Filter Adapter (OBSOLETE) |
1 |
|
|
003 |
170-4713
|
Tank (OBSOLETE) |
|
|
|
004 |
997-2000
|
Hose clamp |
2 |
|
|
005 |
170-3804
|
Vacuum to tank hose (OBSOLETE) |
1 |
|
|
006 |
999-0081
|
Screw 1/4-20 x 5/8 pan head slotted zinc |
7 |
|
|
007 |
999-0017
|
Washer 1/4 external star lock |
5 |
|
|
008 |
170-3805
|
Vacuum motor mount (OBSOLETE) |
1 |
|
|
009 |
999-0311
|
Washer #10 external star lock zinc plated |
7 |
|
|
010 |
999-0811
|
Screw 10-32 x 3/8 pan head phillips stainless steel |
14 |
|
|
011 |
170-4715
|
Vacuum motor adapter (OBSOLETE) |
1 |
|
|
012 |
170-6201
|
Nut wire (orange) |
4 |
|
|
013 |
170-4716
|
Wire harness assembly (OBSOLETE) |
1 |
|
|
014 |
170-8007
|
Nylon wire tie |
3 |
|
|
015 |
170-4717
|
Gasket vacuum motor adapter (OBSOLETE) |
1 |
|
|
016 |
170-8008
|
115V motor assembly (OBSOLETE) |
1 |
|
|
017 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
1 |
|
|
018 |
170-3807
|
Intake air gasket (OBSOLETE) |
1 |
|
|
019 |
991-8149
|
1/8 inch male quick disconnect |
1 |
Need 991-8157 to mate |
|
020 |
170-3123
|
1/8 close pipe nipple (OBSOLETE) |
1 |
|
|
021 |
170-6150
|
Mounting Plate (OBSOLETE) |
1 |
|
|
022 |
999-0062
|
Nut 10-24 hex |
5 |
|
|
023 |
997-2002
|
Hose clamp #6 |
4 |
|
|
024 |
170-1462
|
Intake hose (OBSOLETE) |
2 |
|
|
025 |
999-0231
|
Screw 10-24 x 1/2 round head slotted zinc plated |
3 |
|
|
026 |
170-6149
|
Adapter |
1 |
|
|
027 |
170-4720
|
Nut 1/8 pipe lock (OBSOLETE) |
1 |
|
|
028 |
170-4721
|
120 Volt pump (OBSOLETE) |
1 |
|
|
029 |
170-6063
|
Swivel elbow |
2 |
|
|
030 |
170-1427
|
10 foot hide a hose |
|
|
|
031 |
999-1182
|
Screw M5-.8 x 16mm pan head slotted stainless steel |
2 |
|
|
032 |
170-8057
|
Cord clamp (OBSOLETE) |
1 |
|
|
033 |
170-8055
|
Screw 5mm - 0.8 x 16 pan head phillips |
2 |
|
|
034 |
170-8056
|
Strain relief clamp (OBSOLETE) |
1 |
|
|
035 |
170-8058
|
Strain relief bracket (OBSOLETE) |
1 |
|
|
036 |
170-6131
|
Relief Strain (OBSOLETE) |
1 |
|
|
037 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
038 |
170-3813
|
Rotomold base (OBSOLETE) |
1 |
|
|
039 |
170-6051
|
Hosebarb (OBSOLETE) |
1 |
|
|
040 |
N/A
|
Not available |
1 |
(Street elbow) |
|
041 |
170-5723
|
Nozzle Clamp (OBSOLETE) |
1 |
|
|
042 |
999-9114
|
Washer 3/4 flat stainless steel |
1 |
|
|
043 |
999-0752
|
Nut 3/4-16 hex jam zinc plated |
1 |
|
|
044 |
170-3810
|
Nut plate (OBSOLETE) |
4 |
|
|
045 |
170-0775
|
1/8 inch rivet pop aluminum |
6 |
|
|
046 |
170-2749
|
Grill-Housing (OBSOLETE) |
1 |
|
|
047 |
170-3811
|
Label mounting plate (OBSOLETE) |
1 |
|
|
048 |
N/A
|
Not available |
1 |
Serial no label |
|
049 |
999-0323
|
Screw 1/4-20 x 1/2 pan head slotted zinc plated |
16 |
|
|
050 |
170-3812
|
Ball caster 2 inch (OBSOLETE) |
4 |
|
|
051 |
170-3462
|
Power cord 35ft (OBSOLETE) |
1 |
|
|
054 |
999-0269
|
Screw 10-24 x 5/8 pan head phillips zinc plated |
2 |
|
|
055 |
170-4724
|
Screw 1/4 - 20 set (OBSOLETE) |
1 |
|
|
056 |
N/A
|
Not available |
1 |
Ground wire assembly |
|
057 |
170-4725
|
Wire ground lead 120 volt only (OBSOLETE) |
1 |
|
|
058 |
170-0584
|
Vacuum motor bracket spacer (OBSOLETE) |
2 |
|
|
059 |
999-0006
|
Washer 3/16 flat zinc plated |
4 |
|
|
060 |
999-0389
|
Screw 10-32 x 1 round head slotted zinc plated |
4 |
|
|
063 |
170-3826
|
Filter (OBSOLETE) |
1 |
|
|
064 |
999-0068
|
Screw 10-32 x 1/4 round head slotted zinc plated |
6 |
|
|
065 |
170-3814
|
Lead assembly (OBSOLETE) |
2 |
|
|
066 |
170-3816
|
Grounding harness (OBSOLETE) |
1 |
|
|
067 |
170-6011
|
Ground symbol decal |
1 |
|
|
