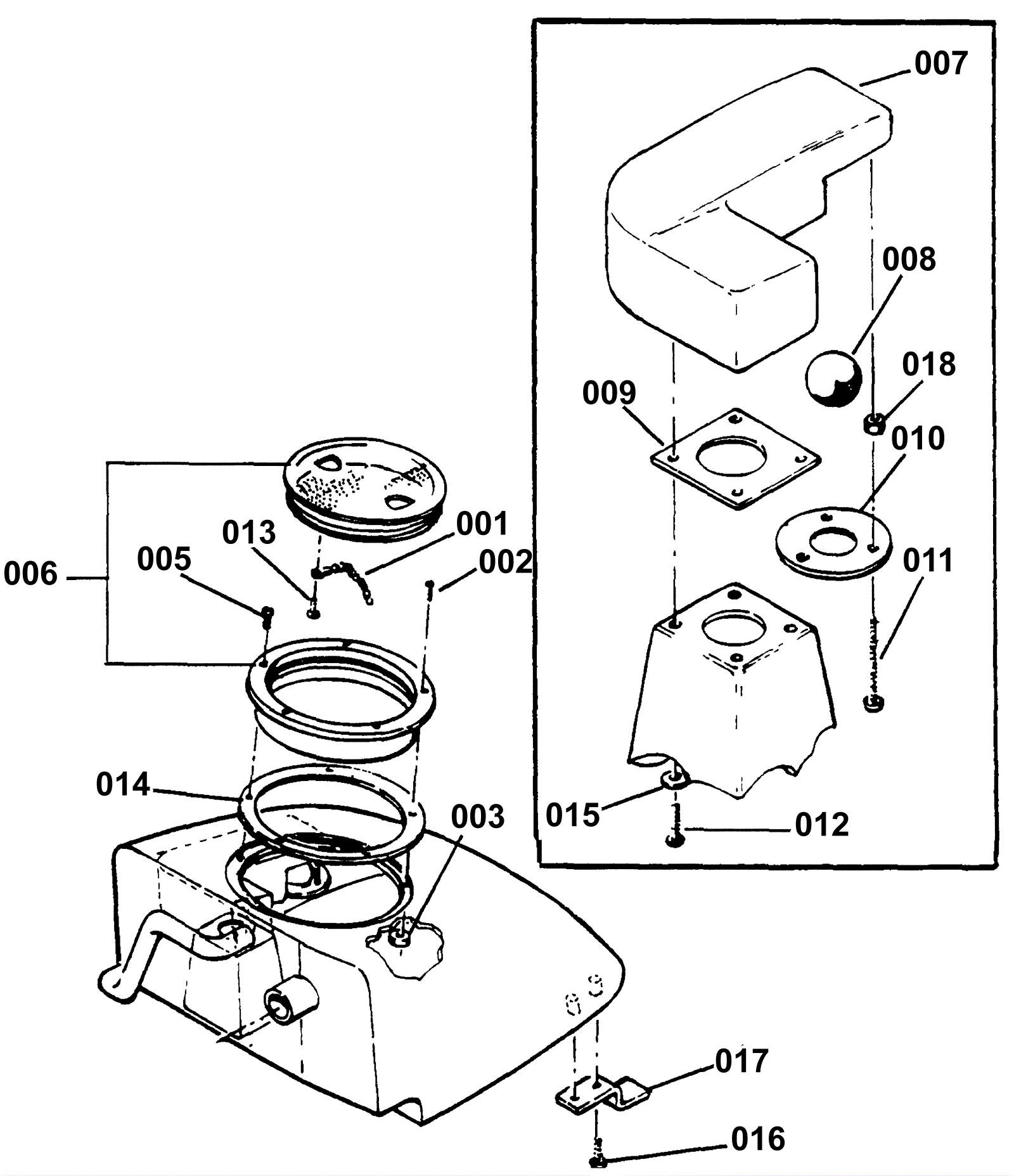

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
172-2474
|
8 inch chain |
1 |
|
|
002 |
999-1541
|
Screw 10-24 x 1 1/4 truss head stainless steel |
1 |
|
|
003 |
170-3757
|
Keps nut 10-24 |
1 |
|
|
004 |
170-4687
|
Recovery tank (OBSOLETE) |
1 |
|
|
005 |
272-8907
|
Screw #10-16 x 1 (OBSOLETE) |
4 |
|
|
006 |
170-4688
|
Recovery lid |
1 |
|
|
007 |
170-4689
|
Vacuum chamber (OBSOLETE) |
1 |
|
|
008 |
170-4690
|
Float shut off ball (OBSOLETE) |
1 |
|
|
009 |
170-4691
|
Vacuum chamber gasket (OBSOLETE) |
1 |
|
|
010 |
170-4692
|
Flat retainer (OBSOLETE) |
1 |
|
|
011 |
999-1244
|
Screw 10-32 x 3 pan head phillips stainless steel |
3 |
|
|
012 |
999-0723
|
Screw 10-32 x 1/2 pan head slotted stainless steel |
4 |
|
|
013 |
999-0663
|
Screw 10-24 x 3/8 pan head phillips thread cutting |
1 |
|
|
014 |
170-6212
|
Gasket lid |
1 |
|
|
015 |
999-0006
|
Washer 3/16 flat zinc plated |
4 |
|
|
016 |
170-4461
|
Screw 10-24 x 3/8 stainless steel |
2 |
|
|
017 |
170-4694
|
Retaining bracket (OBSOLETE) |
1 |
|
|
018 |
999-0460
|
Nut 10-32 hex |
1 |
|
|
