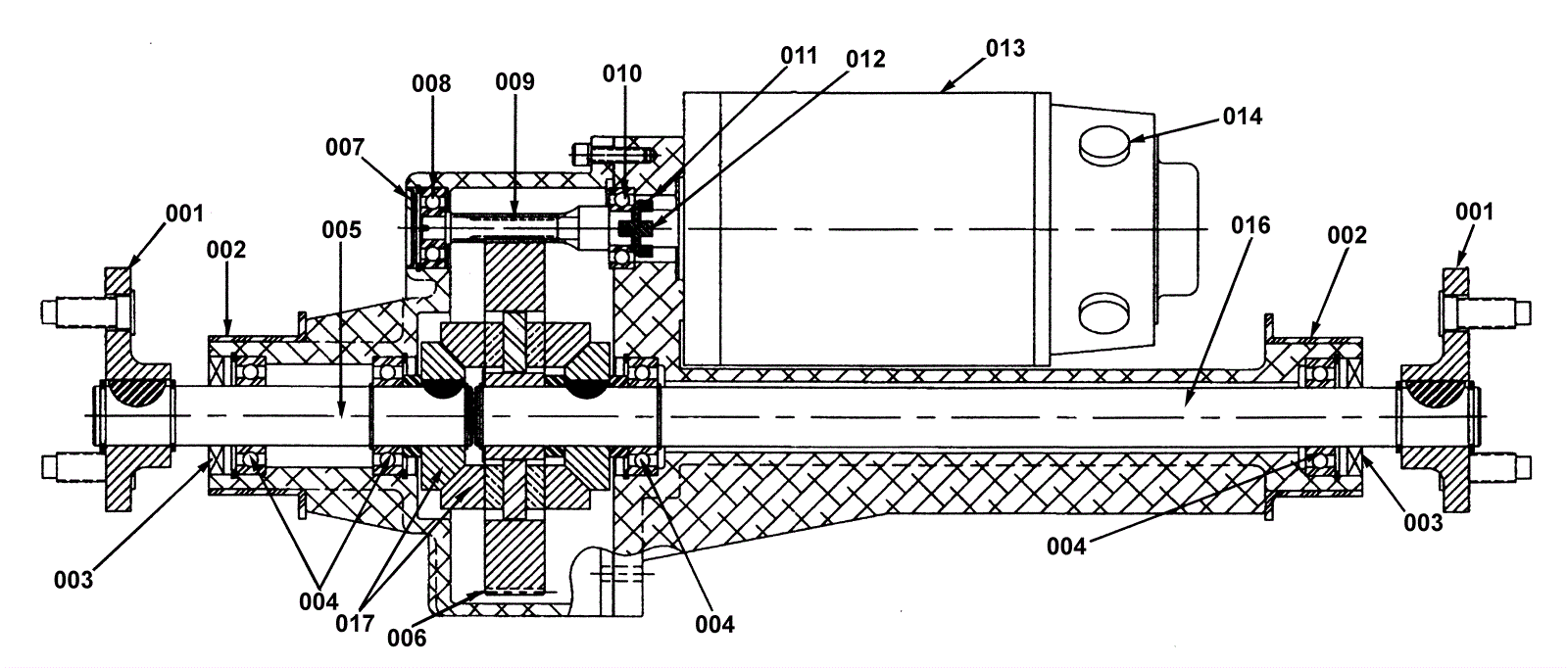

FOCUS C28 Imperial Transaxle Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-7199 36V transaxle hub kit $140.73 2 usually ships 16-41 days
002 170-7438 Rubber mount $68.46 2 usually ships 16-41 days
003 170-5853 Axle oil seal $23.95 2 usually ships 16-41 days
004 170-5854 Sealed axle bearing $40.45 4 usually ships 16-41 days
005 170-7439 Short axle $121.31 1 usually ships 16-41 days
006 170-7440 Output gear $516.82 1 usually ships 1-5 days
007 170-7441 Input plug $11.99 1 usually ships 1-5 days
008 170-7442 Outer pinion bearing $26.58 1 usually ships 1-5 days
009 170-7443 Pinion (OBSOLETE) $391.36 1 usually ships 16-41 days
010 170-7444 Inner pinion bearing $29.16 1 usually ships 1-5 days
011 170-7445 Coupler steel ring $28.60 1 usually ships 1-5 days
012 170-0694 Odum coupling $13.41 1 ships same day
013a 270-0028 Motor without brake (OBSOLETE) $778.73 1 usually ships 1-5 days
013b 270-0029 Motor with brake (OBSOLETE) $1,208.20 1 usually ships 1-5 days
014a 270-0030 Carbon brush with springs (pkg of 4) (OBSOLETE) $100.98 1 usually ships 16-41 days
014b 170-3568 Carbon brush (pkg of 4) $30.87 1 ships same day
016a 170-2926 Long axle $231.75 1 usually ships 16-41 days
016b 170-7446 Gearbox assembly without motor $3,204.93 1 usually ships 1-5 days
017 170-7447 Miter gear $79.84 4 usually ships 1-5 days
