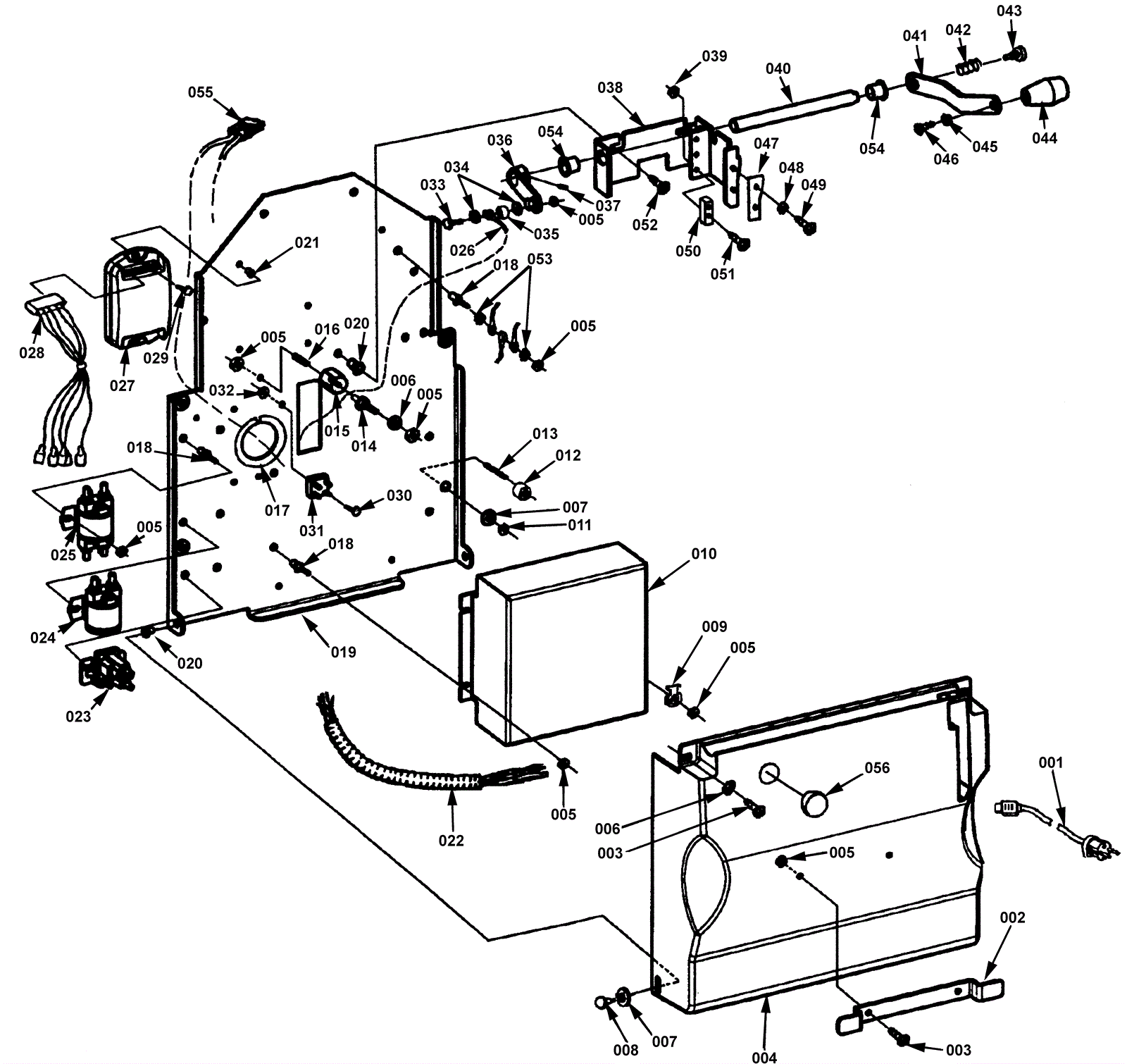

FOCUS C28 Electrical Panel Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-7385 Onboard charger cord $28.74 1 usually ships 16-41 days
002 170-7386 Cord wrapping bracket $12.83 1 usually ships 1-5 days
003 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 4 ships same day
004 170-7387 Rear cover $264.00 1 usually ships 1-5 days
005 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 16 ships same day
006 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
007 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
008 170-7389 Bolt 5/46 x 1/2 shoulder $10.52 2 usually ships 1-5 days
009 170-7388 1/4 tab $11.99 1 usually ships 1-5 days
010 272-2358 24V onboard battery charger $1,228.89 1 usually ships 16-41 days
010b 164-7292 Replacement AC cord and panel assembly (Delta Q) (OBSOLETE) $107.75 1 usually ships 1-5 days
011 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
012 170-7391 Spacer $10.52 4 usually ships 1-5 days
013 999-9117 Screw 5/16-18 x 1 3/4 socket cup point set stainless steel $2.70 4 ships same day
014 170-0064 Stud 1/4-20 $11.99 1 usually ships 1-5 days
015 170-0063 Insulated stand off $11.75 1 usually ships 1-5 days
016 999-0715 Screw 1/4-20 x 3/4 cup point socket set alloy plain finish $0.99 1 ships same day
017 170-7070 Gasket $11.99 1 usually ships 16-41 days
018 170-7074 Stud 1/4-20 $10.52 11 usually ships 1-5 days
019 170-7393 Electrical panel (OBSOLETE) $325.51 1 usually ships 1-5 days
020 170-7076 Insert 1/4-20 $11.99 4 usually ships 1-5 days
021 170-7075 Insert 8-32 $11.99 2 usually ships 1-5 days
022 270-0017 Main wiring harness (OBSOLETE) $258.48 1 usually ships 1-5 days
023 172-2805 36V contactor $97.47 1 ships same day
024a 172-2163 24V solenoid 4 post (2 large 2 small) $122.72 1 ships same day
024b 991-1226 24V solenoid 4 post (2 large 2 small) $54.00 1 (NON-OEM) usually ships 6-7 days
025 170-1931 Main solenoid contactor $156.64 1 ships same day
026 170-7064 Upper cable assembly $96.09 1 usually ships 16-41 days
027 472-7588 I-DRIVE CONTROLLER KIT (OBSOLETE) $1,177.40 1 usually ships 16-41 days
028 170-7396 Traverse harness (OBSOLETE) $97.90 1 usually ships 1-5 days
029 999-0827 Screw 8-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
030 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated $0.99 1 ships same day
031 163-0063 240V rectifier $10.65 1 ships same day
032 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
033 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 1 ships same day
034 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
035 170-0117 Spacer $27.93 1 usually ships 1-5 days
036 170-7063 Lever weldment (OBSOLETE) $107.65 1 usually ships 16-41 days
037 999-0627 Screw 5/16-18 x 1/2 socket cup point set ss $5.41 2 ships same day
038 170-7399 Squeegee lift bracket (OBSOLETE) $91.83 1 usually ships 16-41 days
039 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
040 170-7400 Squeegee lift shaft (OBSOLETE) $95.66 1 usually ships 16-41 days
041 170-7401 Squeegee lift lever (OBSOLETE) $58.95 1 usually ships 16-41 days
042 170-0113 Spring (OBSOLETE) $10.56 1 usually ships 16-41 days
043 170-0112 Shoulder screw (OBSOLETE) $34.66 1 usually ships 16-41 days
044 170-7402 Squeegee lift knob $25.36 1 usually ships 16-41 days
045 999-0201 Washer 3/8 internal star lock $0.99 1 ships same day
046 999-0587 Screw 3/8-16 x 5/8 round head slotted zinc $0.99 1 ships same day
047 170-0121 Wear plate (OBSOLETE) $28.74 1 usually ships 16-41 days
048 154-3992 Washer 3/16 star $1.21 2 usually ships 4-15 days
049 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
050 170-0111 Vacuum switch assembly (OBSOELTE) $127.07 1 usually ships 16-41 days
051 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
052 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 ships same day
053 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
054 170-0088 Flanged bearing (OBSOLETE) $13.40 2 usually ships 16-41 days
055 270-0019 Cable (OBSOLETE) $70.27 1 usually ships 1-5 days
056 270-0020 Hole plug 1 3/8 inch $10.52 1 usually ships 1-5 days
