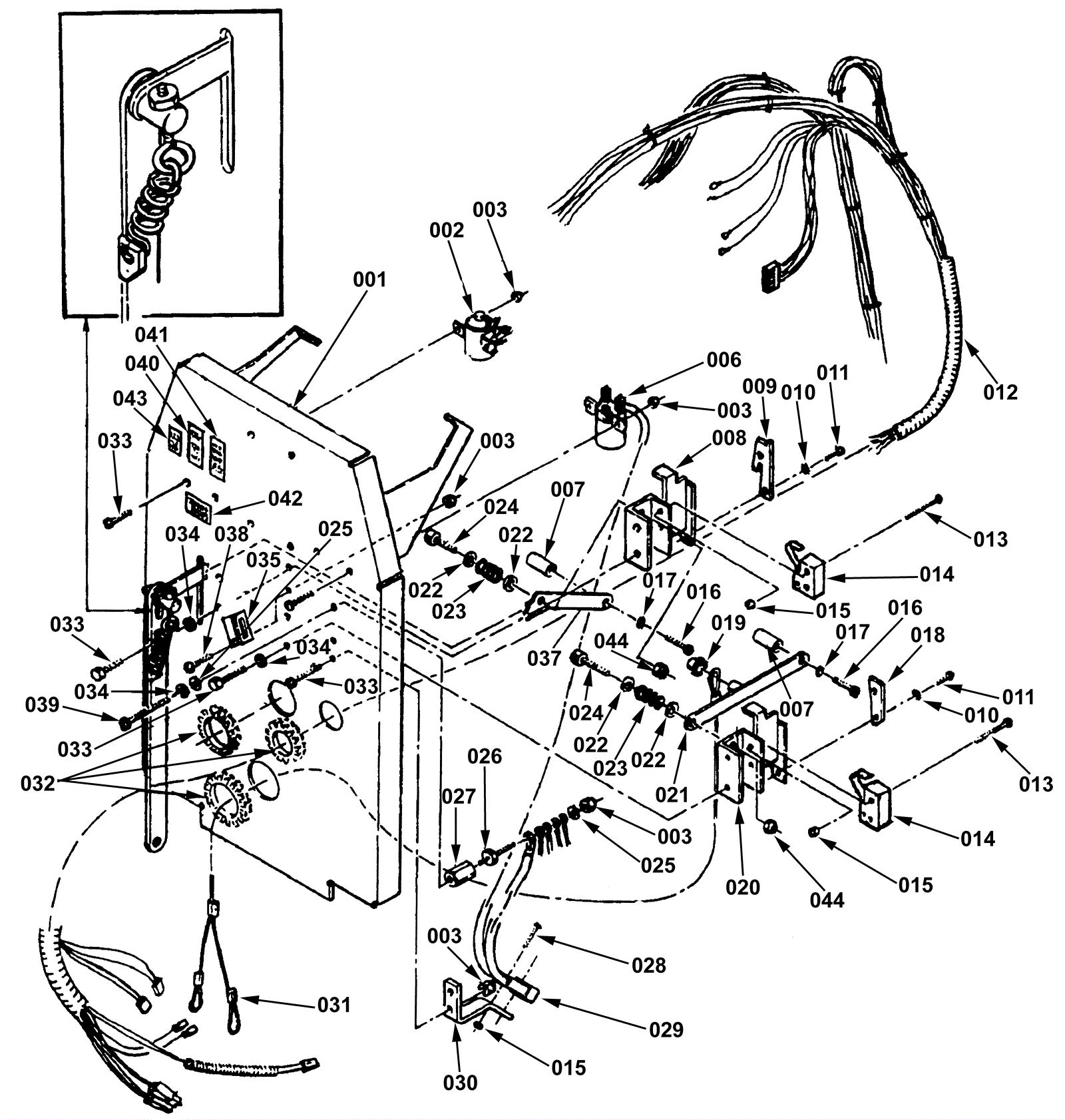

ENCORE S20 Rear Panel Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-1796 Rear panel (OBSOLETE) $118.68 1 usually ships 1-5 days
002 170-1797 Vacuum solenoid (OBSOLETE) $91.00 1 usually ships 16-41 days
003 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 9 ships same day
006a 172-2163 24V solenoid 4 post (2 large 2 small) $122.72 1 ships same day
006b 991-1226 24V solenoid 4 post (2 large 2 small) $54.00 1 (NON-OEM) usually ships 6-7 days
007 170-0110 Squeegee lift handle $34.23 2 usually ships 16-41 days
008 170-1800 Brush lift latch weldment (OBSOLETE) $69.30 1 usually ships 16-41 days
009 170-9012 Brush lift wear plate $21.01 1 usually ships 1-5 days
010 999-0311 Washer #10 external star lock zinc plated $0.99 4 ships same day
011 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 4 ships same day
012 170-1802 Power harness (OBSOLETE) $101.64 1 usually ships 1-5 days
013 999-0974 Screw 6-32 x 1 1/4 pan head phillips stainless steel $7.92 4 ships same day
014 170-0111 Vacuum switch assembly (OBSOELTE) $127.07 2 usually ships 16-41 days
015 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 6 ships same day
016 999-0587 Screw 3/8-16 x 5/8 round head slotted zinc $0.99 2 ships same day
017 999-0201 Washer 3/8 internal star lock $0.99 2 ships same day
018 170-0121 Wear plate (OBSOLETE) $28.74 1 usually ships 16-41 days
019 170-6076 Pal nut $10.56 1 usually ships 16-41 days
020 170-1804 Lift bracket (OBSOLETE) $246.26 1 usually ships 16-41 days
021 170-1805 Lift lever $66.96 1 usually ships 16-41 days
022 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
023 170-0113 Spring (OBSOLETE) $10.56 2 usually ships 16-41 days
024 999-0813 Bolt 5/16-18 x 1 x 1/4-20 socket head shoulder $8.69 2 ships same day
025 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
026 170-0064 Stud 1/4-20 $11.99 1 usually ships 1-5 days
027 170-0063 Insulated stand off $11.75 1 usually ships 1-5 days
028 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 2 ships same day
029 370-1994 CABLE ASM CONSOLE VISION 26L (OBSOLETE) $104.50 1 usually ships 16-41 days
030 170-0090 Power connector bracket (OBSOLETE) $12.10 1 usually ships 1-5 days
031 170-1848 Lift cable $91.00 1 usually ships 1-5 days
032 170-1808 Slotted grommet 7.75 inch (OBSOLETE) $6.78 3 usually ships 1-5 days
033 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 10 ships same day
034 999-0060 Washer 1/4 split lock plain finish $0.99 5 ships same day
035 170-1809 Recovery tank latch bracket (OBSOLETE) $17.05 1 usually ships 1-5 days
037 170-1810 Lift lever $62.45 1 usually ships 1-5 days
038 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 2 ships same day
039 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 1 ships same day
040 170-0230 Falling parts warning decal $16.50 1 usually ships 1-5 days
041 170-0229 Battery warning decal $16.50 1 usually ships 1-5 days
042 170-1812 Battery install label (OBSOLETE) $7.70 1 usually ships 1-5 days
043 170-1813 CE label (OBSOLETE) Call for price 1 usually ships 1-5 days
044 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
