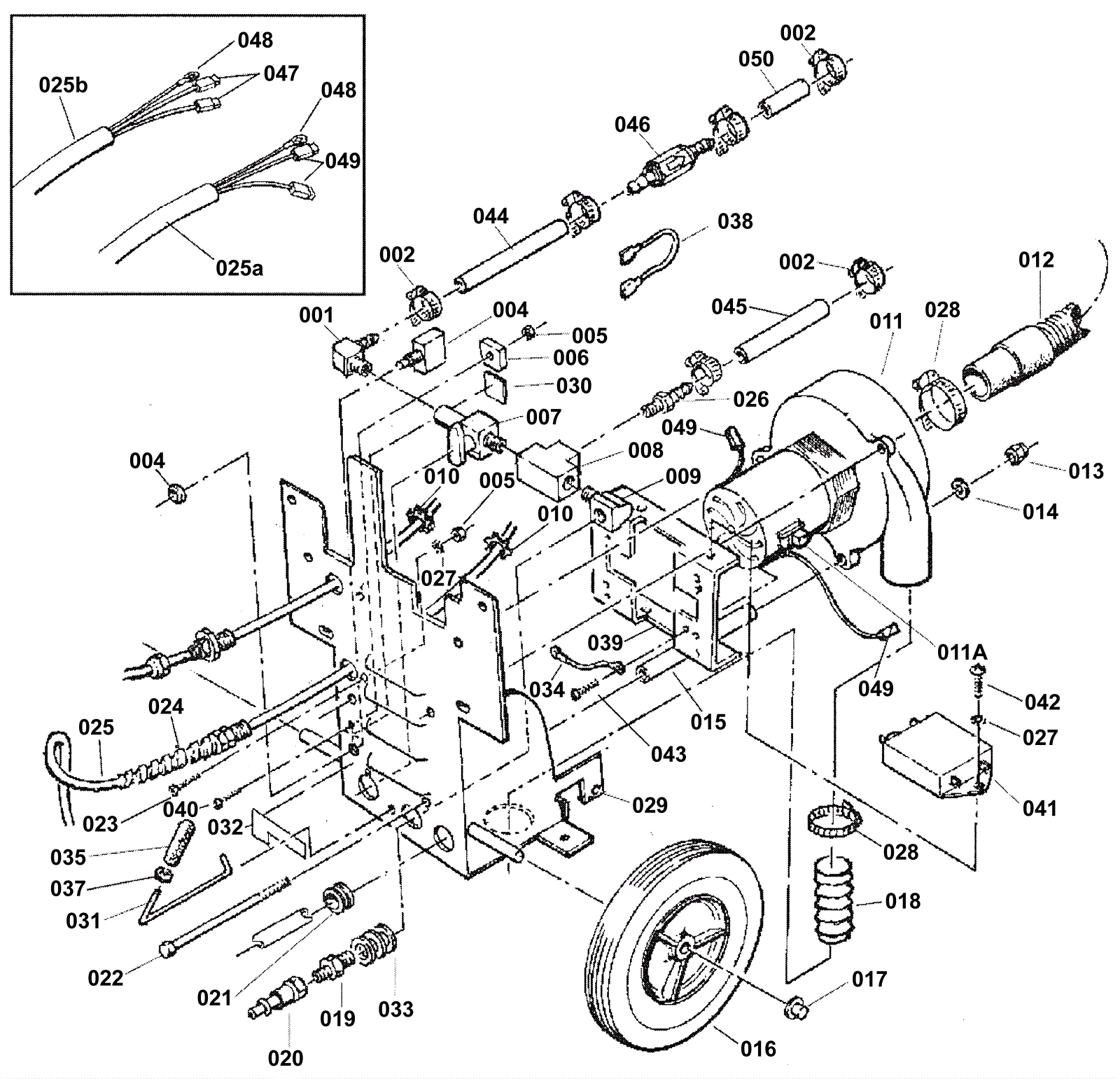

IMAGE 14 Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-1297 3/8 elbow (OBSOLETE) $9.13 1 usually ships 13-18 days
002 997-2001 Hose clamp $2.42 6 ships same day
004a 170-3763 Circuit breaker 2.5A, brush 115 volt (OBSOLETE) $26.40 1 usually ships 1-5 days
004b 170-0087 1.5amp circuit breaker $33.96 1 usually ships 13-18 days
005 999-0460 Nut 10-32 hex $0.99 3 ships same day
006 170-6016 Rectifier $70.94 1 usually ships 1-5 days
007 170-3760 Plug valve $67.11 1 usually ships 1-5 days
008 209-0610 1/4 inch tee brass $12.89 1 ships same day
009 160-0054 45 degree elbow fitting $12.89 1 usually ships 13-18 days
010 170-0294 Nut 1/2 conduit lock $12.89 2 usually ships 13-18 days
011a 170-3336 Vac motor 120V (OBSOLETE) $359.92 1 usually ships 1-5 days
011b 170-1490 Carbon brush assembly $14.47 1 usually ships 1-5 days
012 170-4672 Squeegee vacuum hose (OBSOLETE) $98.01 1 usually ships 1-5 days
013 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
014 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
015 170-4673 Vacuum motor spacer (OBSOLETE) $8.80 3 usually ships 1-5 days
016 170-4674 8 Inch wheel (OBSOLETE) $28.51 2 usually ships 1-5 days
017 170-6076 Pal nut $11.35 2 usually ships 13-18 days
018 170-8113 Dual hose $10.52 1 usually ships 1-5 days
019 170-6055 Reducer $22.61 1 usually ships 1-5 days
020 991-8149 1/8 inch male quick disconnect $10.00 1 Need 991-8157 to mate ships same day
021 170-0496 Bushing $10.23 1 usually ships 1-5 days
022 170-4676 Screw 1/4 - 20 x 5 $10.52 3 usually ships 1-5 days
023 170-4677 Screw 10-32 x 3/4 (OBSOLETE) $5.50 1 usually ships 1-5 days
024 170-4502 Side broom knob (OBSOLETE) $33.86 1 usually ships 1-5 days
025a 170-6012 14/3 power cord 35 foot $204.60 1 usually ships 13-18 days
025b 170-8225 Cord H05vv f3G1-1/2 $43.98 1 usually ships 1-5 days
025c 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) ships same day
026 170-6051 Hosebarb (OBSOLETE) $8.25 1 usually ships 13-18 days
027 999-0311 Washer #10 external star lock zinc plated $0.99 4 ships same day
028 997-2007 Hose clamp $2.07 2 ships same day
029 170-4678 Weldment frame (OBSOLETE) $188.22 1 usually ships 1-5 days
030 170-6011 Ground symbol decal $3.87 1 usually ships 1-5 days
031 170-4679 Brush height rod (OBSOLETE) $106.55 1 usually ships 1-5 days
032 170-4680 Accessory label (OBSOLETE) $15.97 1 usually ships 1-5 days
033 170-6073 Washer stainless steel $9.27 3 usually ships 13-18 days
034 N/A Not available Call for price 1 Green wire assembly usually ships 3-26 days
035 170-4681 Brush height rod cover (OBSOLETE) $7.65 1 usually ships 1-5 days
036 170-6058 Nylon hosebarb $14.41 1 usually ships 13-18 days
037 170-4682 Washer $10.52 1 usually ships 1-5 days
038 170-4683 Main power wire (OBSOLETE) $8.91 1 usually ships 1-5 days
039 170-8226 Filter bracket (OBSOLETE) $17.47 1 usually ships 1-5 days
041 170-3826 Filter (OBSOLETE) $470.45 1 usually ships 1-5 days
042 999-0663 Screw 10-24 x 3/8 pan head phillips thread cutting $0.99 2 ships same day
043 154-3951 Screw #10 x 3/8 inch $1.21 1 usually ships 12-15 days
044 170-4684 Solution hose (OBSOLETE) $7.52 1 usually ships 1-5 days
045 170-6064 14 inch solution hose $9.13 1 usually ships 1-5 days
046 170-4685 Solution valve check $96.51 1 usually ships 1-5 days
047 170-6013 1/4 terminal $2.42 2 usually ships 1-5 days
048 170-6014 Terminal clip $1.21 1 usually ships 12-15 days
049 170-6081 1/4 terminal $3.28 1 usually ships 1-5 days
050 170-6057 4 1/2 inch discharge and intake hose (OBSOLETE) $19.58 1 usually ships 13-18 days
051 170-8227 Power supply cord (OBSOLETE) $70.84 1 usually ships 1-5 days
