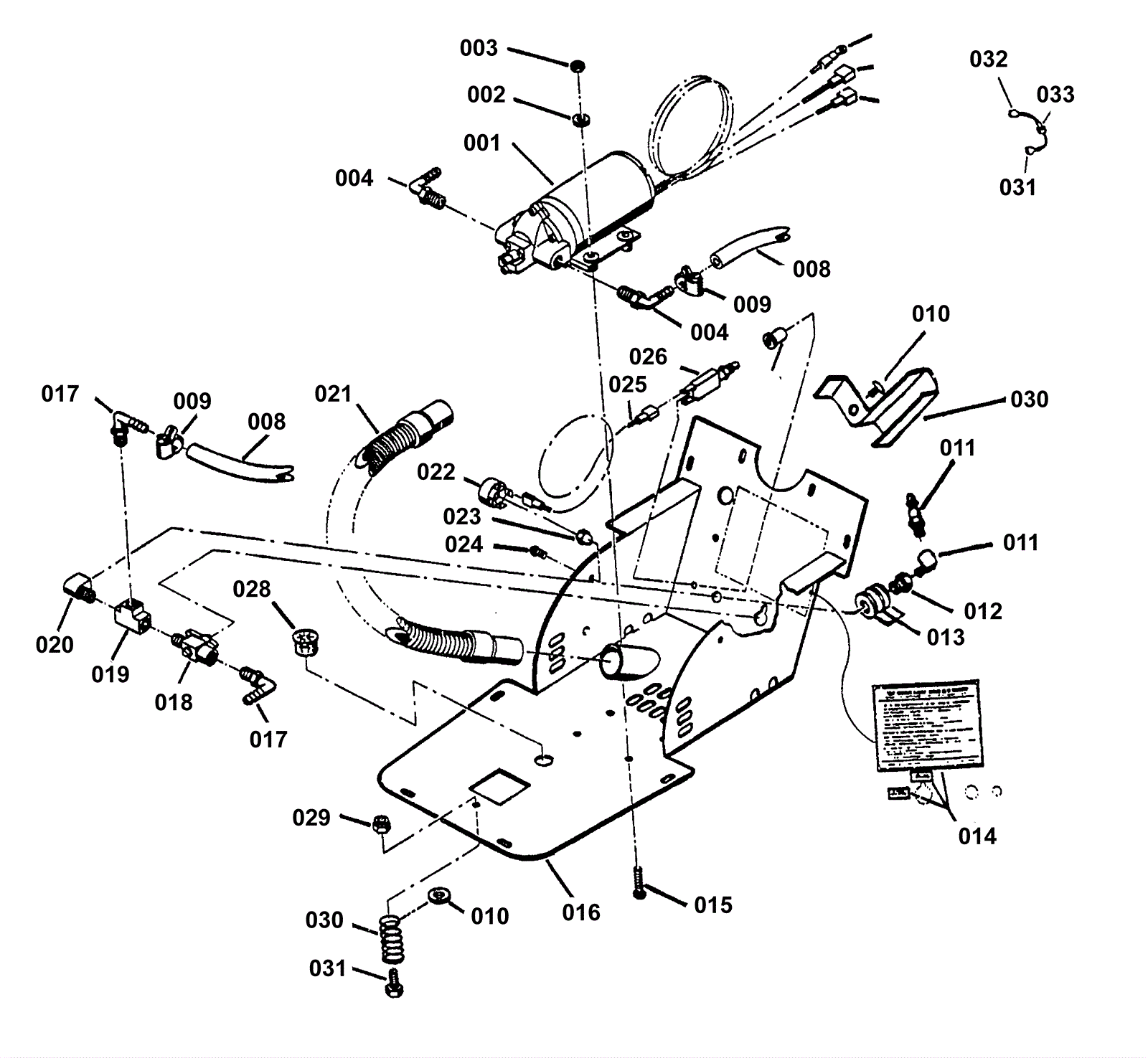

EXT771 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
001a 170-6030 120V pump $651.08 1 usually ships 17-28 days
001b 170-6142 Pump 230 Volt (OBSOLETE) $817.94 1 usually ships 1-5 days
002 999-1416 Washer 7/16 flat stainless steel $0.99 4 ships same day
003 170-3757 Keps nut 10-24 $10.52 4 usually ships 1-5 days
004 170-6063 Swivel elbow $18.41 2 usually ships 17-28 days
005 170-6158 Ring Terminal $8.80 1 usually ships 1-5 days
006 170-6081 1/4 terminal $3.28 2 usually ships 1-5 days
007 272-2814 1/4 inch spade terminal $13.76 1 usually ships 1-5 days
008 170-6064 14 inch solution hose $9.13 usually ships 1-5 days
009 997-2002 Hose clamp #6 $2.15 2 ships same day
010 170-2128 Screw 1/4 20 x 3/4 $10.52 4 usually ships 1-5 days
011 991-8149 1/8 inch male quick disconnect $7.90 1 Need 991-8157 to mate ships same day
012 170-6055 Reducer $13.40 1 usually ships 1-5 days
013 170-6073 Washer stainless steel $9.27 3 usually ships 17-28 days
014 170-3758 Instruction label (OBSOLETE) Call for price 1 usually ships 1-5 days
015 999-1027 Screw 10-24 x 1 1/4 round head phillips stainless steel $0.99 4 usually ships 1-5 days
016 170-3759 Weldment undercarriage (OBSOLETE) Call for price 1 usually ships 1-5 days
017 170-6093 1/4 elbow (OBSOLETE) $17.90 2 usually ships 17-28 days
018 170-3760 Plug valve $67.11 1 usually ships 1-5 days
019 209-0610 1/4 inch tee brass $12.31 1 ships same day
020 160-0054 45 degree elbow fitting $12.31 1 usually ships 17-28 days
021 170-3761 Squeegee vacuum hose (OBSOLETE) Call for price 1 usually ships 1-5 days
022 170-6016 Rectifier $70.94 1 usually ships 1-5 days
023 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 ships same day
024 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 1 ships same day
025 170-3762 Wire (OBSOLETE) Call for price usually ships 1-5 days
026 170-3763 Circuit breaker 2.5A, brush 115 volt (OBSOLETE) $26.40 1 usually ships 1-5 days
027 170-3764 Reset button seal (OBSOLETE) $19.25 1 usually ships 1-5 days
028 170-0496 Bushing $10.23 1 usually ships 1-5 days
029 170-3222 1/8 Street elbow $8.83 1 usually ships 1-5 days
030 170-3765 Bracket assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
031 170-6081 1/4 terminal $3.28 1 usually ships 1-5 days
032 170-6013 1/4 terminal $4.00 1 usually ships 1-5 days
033 170-6160 Fuse Holder (OBSOLETE) $9.98 1 usually ships 1-5 days
N/S 170-6159 Fuse (OBSOLETE) $8.03 1 usually ships 1-5 days
N/S 999-0062 Nut 10-24 hex $0.99 2 ships same day
N/S 999-0311 Washer #10 external star lock zinc plated $0.99 2 ships same day
N/S 999-1191 Screw 10-24 x 5/8 round head slotted stainless steel $0.99 ships same day
