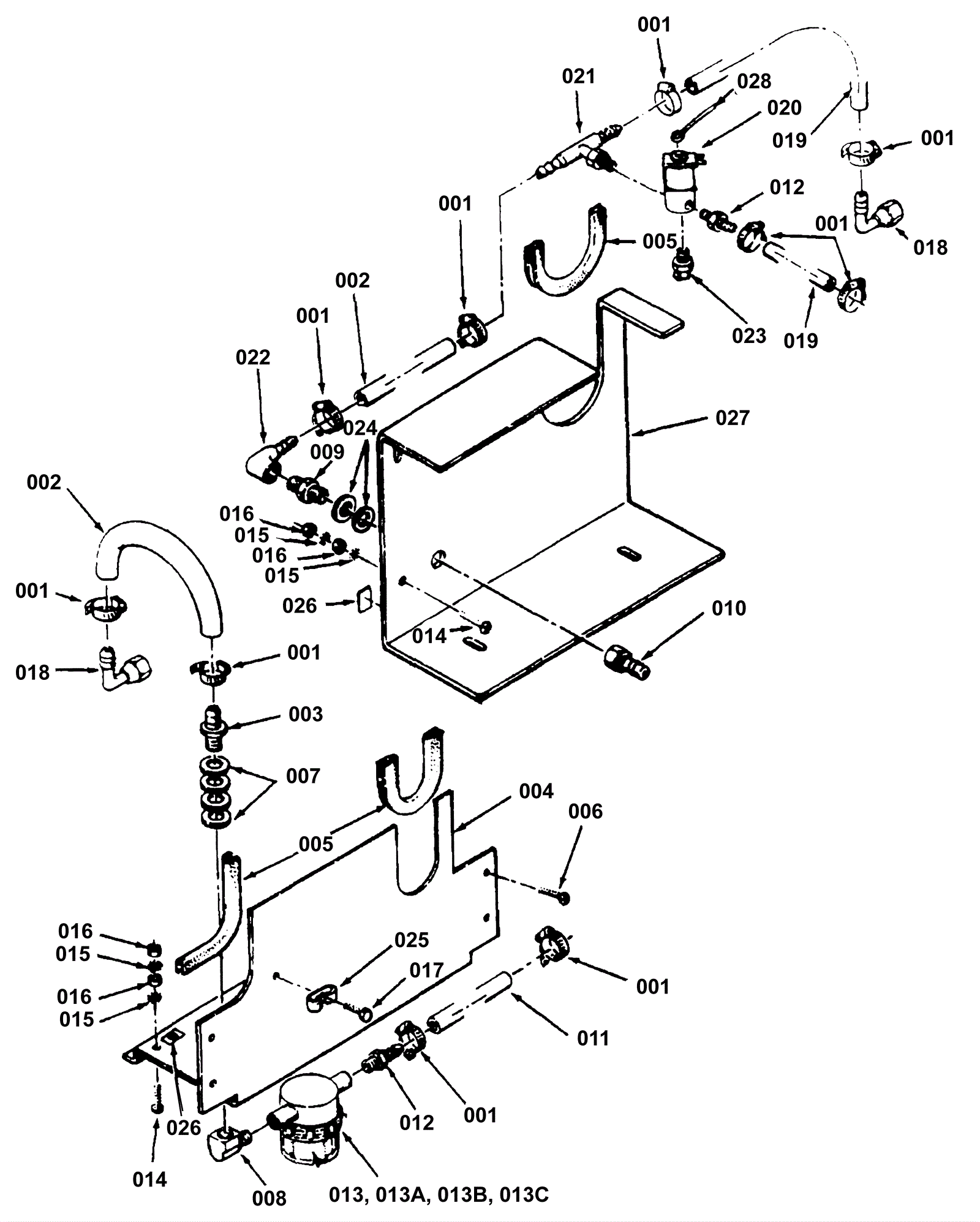

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
997-2002
|
Hose clamp #6 |
10 |
|
|
002 |
170-6050
|
24 inch solution hose |
2 |
|
|
003 |
170-6051
|
Hosebarb (OBSOLETE) |
1 |
|
|
004 |
170-6052
|
Valve support (OBSOLETE) |
1 |
|
|
005 |
170-0625
|
Frame trim (OBSOLETE) |
3 |
|
|
006 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
4 |
|
|
007 |
170-6073
|
Washer stainless steel |
4 |
|
|
008 |
160-0054
|
45 degree elbow fitting |
1 |
|
|
009 |
170-6055
|
Reducer |
1 |
|
|
010 |
991-8149
|
1/8 inch male quick disconnect |
1 |
Need 991-8157 to mate |
|
011 |
170-6057
|
4 1/2 inch discharge and intake hose (OBSOLETE) |
1 |
|
|
012 |
170-6058
|
Nylon hosebarb |
2 |
|
|
013a |
170-6059
|
Bowl strainer |
1 |
Includes 013b, 013c, and 013d) |
|
013b |
170-6060
|
Filter screen |
1 |
|
|
013c |
170-6061
|
Viton gasket |
1 |
|
|
013d |
170-6062
|
Clear filter bowl |
1 |
(OEM) |
|
013e |
991-8575
|
Short bowl (clear) |
1 |
(NON-OEM) |
|
014 |
999-0414
|
Screw 10-32 x 3/4 pan head slotted zinc plated |
2 |
|
|
015 |
999-0311
|
Washer #10 external star lock zinc plated |
4 |
|
|
016 |
999-0460
|
Nut 10-32 hex |
4 |
|
|
017 |
999-0663
|
Screw 10-24 x 3/8 pan head phillips thread cutting |
1 |
|
|
018 |
170-6063
|
Swivel elbow |
2 |
|
|
019 |
170-6064
|
14 inch solution hose |
2 |
|
|
020 |
170-6065
|
Solution flow valve |
1 |
|
|
021 |
170-6066
|
Tee (OBSOLETE) |
1 |
|
|
022 |
170-6067
|
Hosebarb elbow 1/4 x 3/8 inch |
1 |
|
|
023 |
170-6068
|
Female quick disconnect shut-off coupling |
1 |
|
|
024 |
170-2414
|
Washer flat |
1 |
|
|
025 |
170-6069
|
Steel clip |
1 |
|
|
026 |
170-6011
|
Ground symbol decal |
2 |
|
|
027 |
170-6071
|
Rear cover plate (OBSOLETE) |
1 |
|
|
028 |
170-6072
|
Solenoid ground wire (OBSOLETE) |
1 |
|
|
