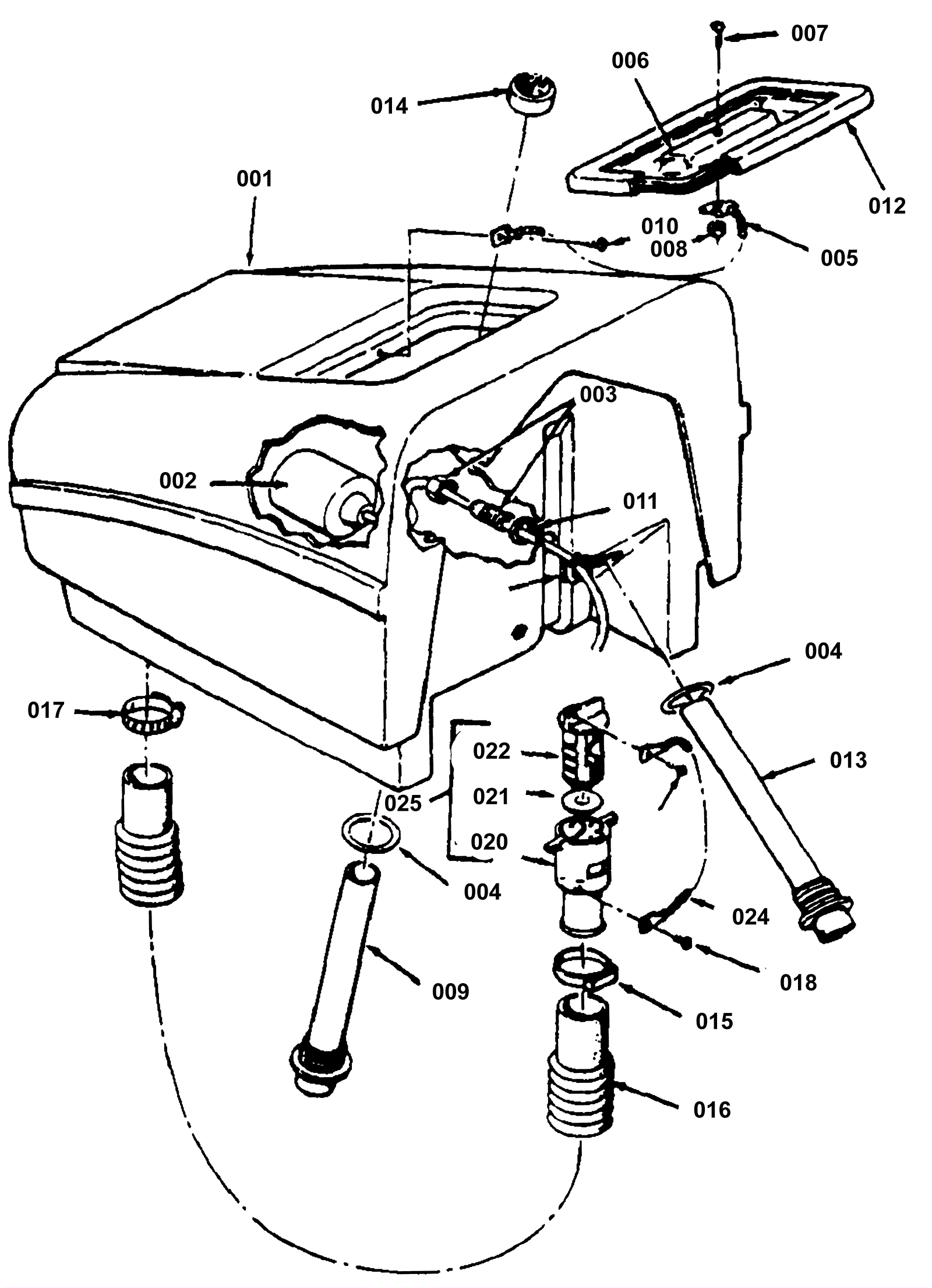

IMAGE 16IX Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-6031 Recovery tank (OBSOLETE) $724.90 1 usually ships 1-5 days
002 170-6032 Float switch (OBSOLETE) $143.22 1 usually ships 16-41 days
003 170-0292 Strain relief $16.35 1 usually ships 4-15 days
004 170-0273 O-ring $7.47 2 ships same day
005 172-2474 8 inch chain $10.56 1 ships same day
006 170-0613 Tank lid $48.32 1 ships same day
007 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 1 ships same day
008 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
009 170-6037 Vacuum tube (OBSOLETE) $68.86 1 usually ships 1-5 days
010 999-0175 Screw 1/4-20 x 3/8 pan head slotted zinc plated $0.99 1 ships same day
011 170-6017 Washer 1/2 NPT sealing $13.40 1 usually ships 16-41 days
012 170-6038 Tank lid gasket $25.36 1 ships same day
013 170-6039 Recovery tube (OBSOLETE) $83.05 1 usually ships 1-5 days
014 170-0290 Strainer (OBSOLETE) $37.61 1 usually ships 16-41 days
015 164-0218 Nylon hose clamp $3.69 1 usually ships 8-23 days
016 170-6042 Recovery hose (OBSOLETE) $73.06 1 usually ships 16-41 days
017 997-2000 Hose clamp $2.37 1 ships same day
018 999-0576 Screw 8-18 x 1/2 pan head phillips self-drilling ss $0.99 1 ships same day
019 170-0294 Nut 1/2 conduit lock $11.99 1 usually ships 16-41 days
020 170-0043 Drain valve $25.36 1 ships same day
021 170-0032 Drain valve gasket $10.56 1 ships same day
022 170-0042 Drain valve handle $25.36 1 usually ships 16-41 days
023 999-0663 Screw 10-24 x 3/8 pan head phillips thread cutting $0.99 1 ships same day
024 170-0268 Drain chain assembly $11.99 1 usually ships 16-41 days
025 170-6048 Drain valve assembly $113.41 1 ships same day
