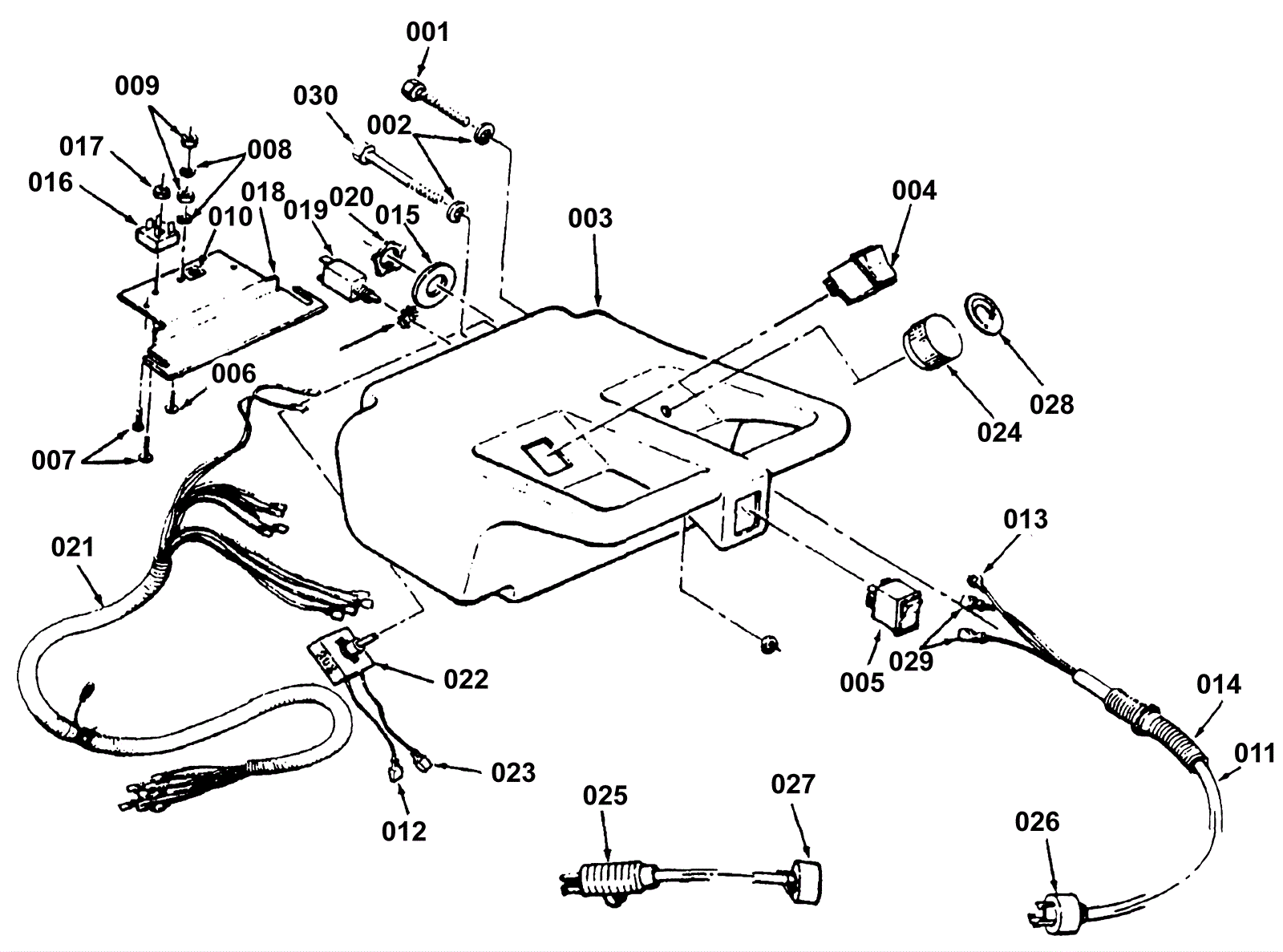

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0162
|
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
2 |
|
|
002 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
003 |
170-6008
|
Control handle (OBSOLETE) |
1 |
|
|
004 |
170-6009
|
Vacuum switch (OBSOLETE) |
1 |
|
|
005 |
170-6001
|
Spray brush switch (OBSOLETE) |
1 |
|
|
006 |
999-0723
|
Screw 10-32 x 1/2 pan head slotted stainless steel |
2 |
|
|
007 |
999-0414
|
Screw 10-32 x 3/4 pan head slotted zinc plated |
2 |
|
|
008 |
999-0311
|
Washer #10 external star lock zinc plated |
2 |
|
|
009 |
999-0460
|
Nut 10-32 hex |
2 |
|
|
010 |
170-6011
|
Ground symbol decal |
1 |
|
|
011 |
170-3416
|
Interconnect cord (OBSOLETE) |
1 |
|
|
012 |
272-2814
|
1/4 inch spade terminal |
1 |
|
|
013 |
170-6014
|
Terminal clip |
1 |
|
|
014 |
164-4502
|
Strain relief |
1 |
|
|
015 |
999-0721
|
Washer 7/8 USS flat zinc plated |
1 |
|
|
016 |
170-6016
|
Rectifier |
1 |
|
|
017 |
999-0460
|
Nut 10-32 hex |
1 |
|
|
018 |
170-6018
|
Electrical panel (OBSOLETE) |
1 |
|
|
019 |
170-6019
|
1.25amp circuit breaker |
1 |
|
|
020 |
170-0294
|
Nut 1/2 conduit lock |
1 |
|
|
021 |
170-6021
|
Harness machine cord (OBSOLETE) |
1 |
|
|
022 |
170-1465
|
Variable speed control (OBSOLETE) |
1 |
|
|
023 |
270-0219
|
24V I-Drive relay |
1 |
|
|
024 |
170-8261
|
Knob solution flow module (OBSOLETE) |
1 |
|
|
025 |
170-3339
|
Power supply cord gray (OBSOLETE) |
1 |
|
|
026 |
170-1476
|
Male electrical plug |
1 |
|
|
027 |
170-1477
|
Female electrical connector |
1 |
|
|
028 |
170-3417
|
Solution label |
1 |
|
|
029 |
170-6013
|
1/4 terminal |
2 |
|
|
030 |
999-0544
|
Screw 5/16-18 x 2 1/4 socket head stainless steel |
2 |
|
|
031 |
999-0201
|
Washer 3/8 internal star lock |
1 |
|
|
N/S |
170-0080
|
Wire tie |
1 |
|
|
