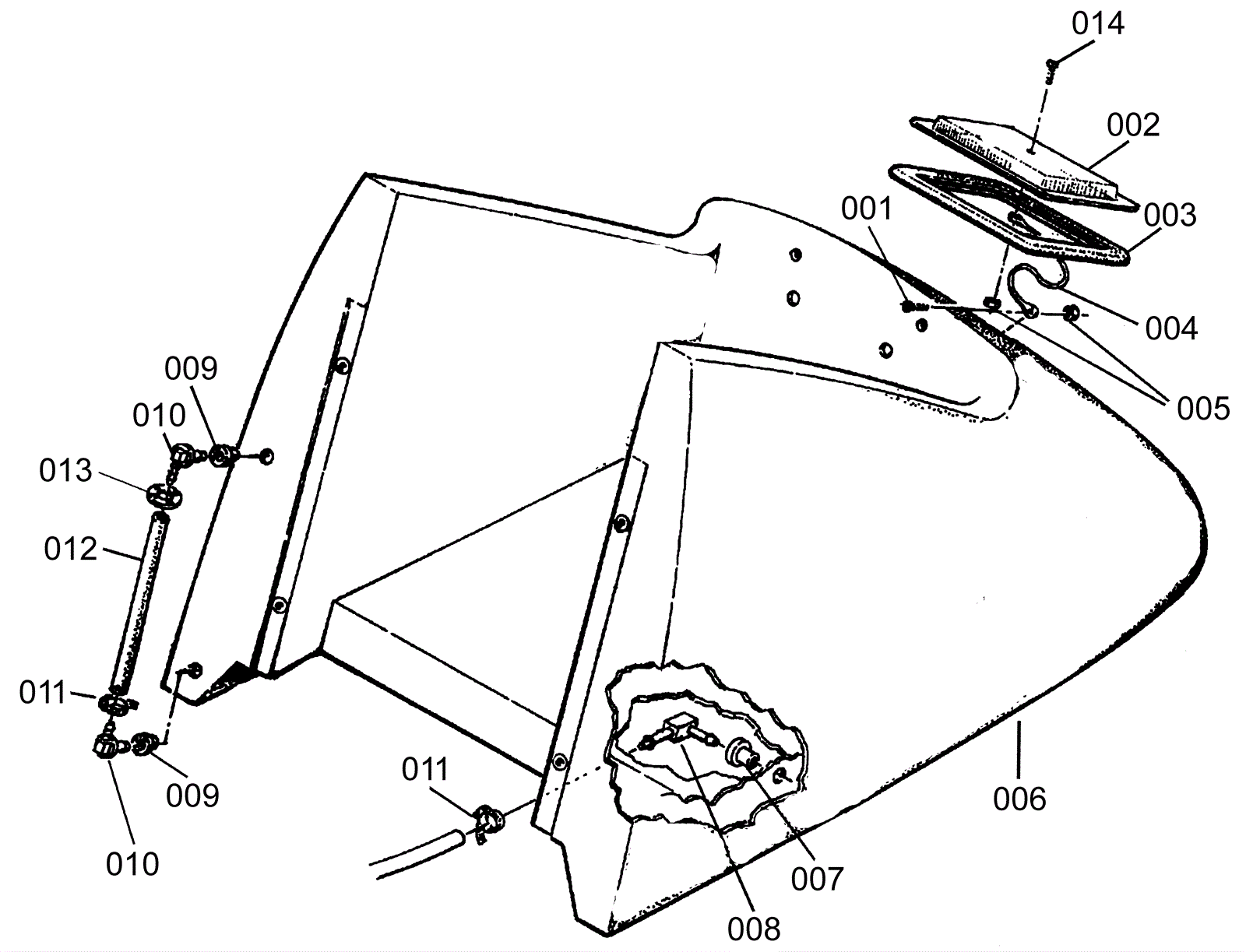

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0314
|
Screw 10-24 x 3/4 round head phillips zinc plated |
1 |
|
|
002 |
170-0282
|
Solution tank lid |
1 |
|
|
003 |
170-0283
|
Solution tank lid gasket (OBSOLETE) |
1 |
|
|
004 |
170-7089
|
Strap (OBSOLETE) |
1 |
|
|
005 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
2 |
|
|
006 |
170-1498
|
Solution tank (OBSOLETE) |
1 |
|
|
007 |
170-6085
|
Bushing (OBSOLETE) |
1 |
|
|
008 |
170-6089
|
90 degree hosebarb |
1 |
|
|
009 |
170-1387
|
Bushing fitting |
2 |
|
|
010 |
170-1386
|
Hosebarb |
2 |
|
|
011 |
997-2002
|
Hose clamp #6 |
1 |
|
|
012 |
170-1499
|
Solution level hose |
1 |
|
|
013 |
170-1393
|
Drain plug |
1 |
|
|
014 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
1 |
|
|
