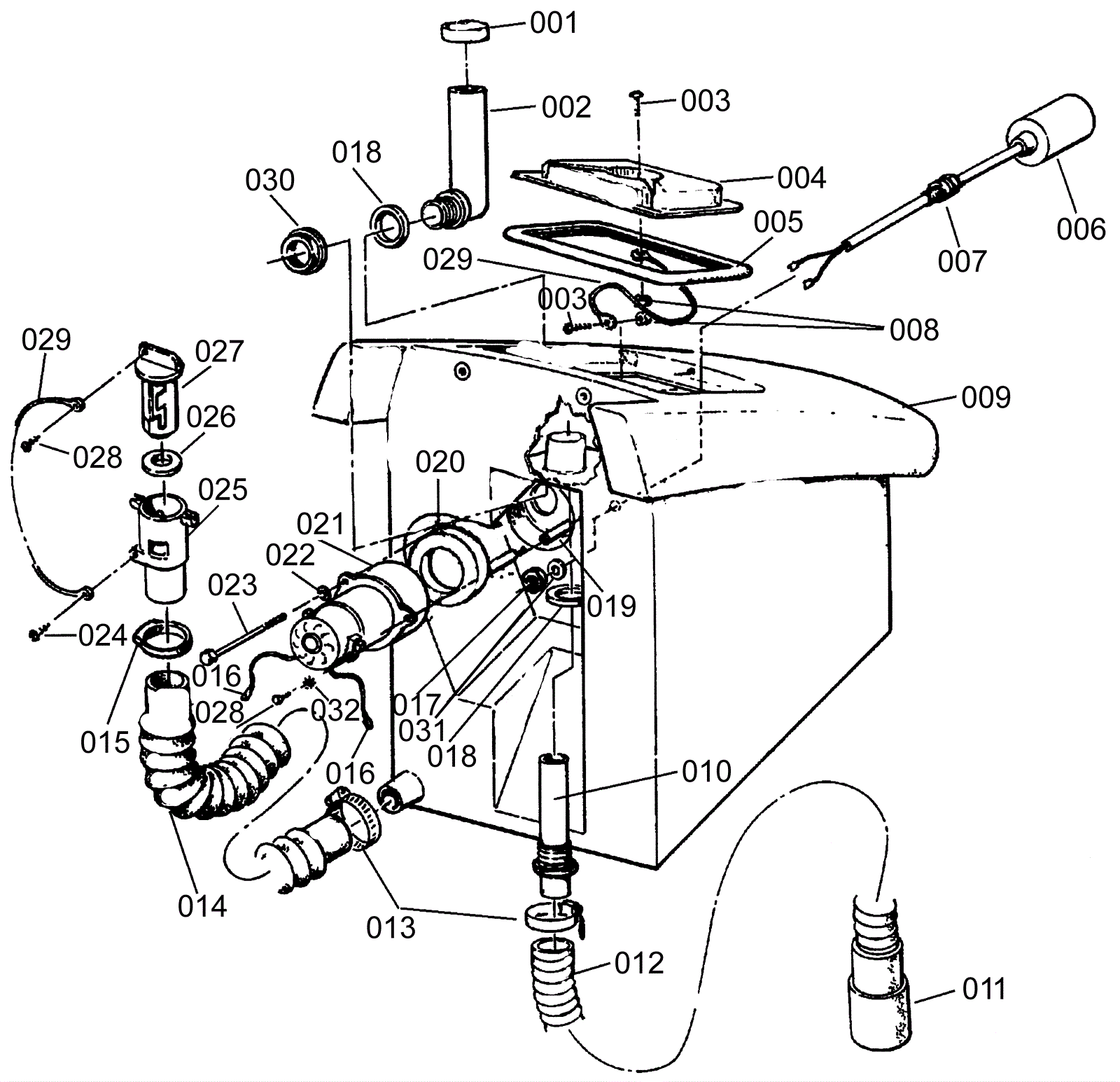

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-7104
|
Vacuum filter screen |
1 |
|
|
002 |
170-1361
|
Vacuum standpipe |
1 |
|
|
003 |
999-0314
|
Screw 10-24 x 3/4 round head phillips zinc plated |
2 |
|
|
004 |
170-0022
|
Recovery tank lid |
1 |
|
|
005 |
170-0023
|
Recovery tank lid gasket |
1 |
|
|
006 |
170-6032
|
Float switch (OBSOLETE) |
1 |
|
|
007 |
170-0292
|
Strain relief |
1 |
|
|
008 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
2 |
|
|
009 |
170-1487
|
Recovery tank |
1 |
|
|
010 |
170-1488
|
Vacuum adapter assembly (OBSOLETE) |
1 |
|
|
011 |
170-1365
|
Hose cuff (OBSOLETE) |
1 |
|
|
012 |
170-1489
|
Recovery hose (OBSOLETE) |
1 |
|
|
013 |
997-2007
|
Hose clamp |
2 |
|
|
014 |
170-7100
|
12 inch drain hose |
1 |
|
|
015 |
164-0218
|
Nylon hose clamp |
1 |
|
|
016 |
272-2814
|
1/4 inch spade terminal |
2 |
|
|
017 |
170-0294
|
Nut 1/2 conduit lock |
1 |
|
|
018 |
170-0273
|
O-ring |
2 |
|
|
019 |
170-0274
|
Vacuum motor spacer |
3 |
|
|
020a |
164-0881
|
Vacuum motor gasket |
1 |
|
|
020b |
991-3029
|
Vacuum motor gasket |
1 |
(NON-OEM) |
|
021a |
170-9920
|
120V 3 stage vacuum motor |
1 |
(Alto-Clarke) |
|
021b |
991-1213
|
120V 3 stage vacuum motor tangential |
1 |
(Ametek-Lamb) |
|
021c |
991-1238
|
Carbon brush (sold individually) |
2 |
|
|
022 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
023 |
999-0165
|
Bolt 1/4-20 x 4 hex head grade 5 zinc plated |
3 |
|
|
024 |
999-0576
|
Screw 8-18 x 1/2 pan head phillips self-drilling ss |
1 |
|
|
025 |
170-0043
|
Drain valve |
1 |
|
|
026 |
170-0032
|
Drain valve gasket |
1 |
|
|
027 |
170-0042
|
Drain valve handle |
1 |
|
|
028 |
999-0663
|
Screw 10-24 x 3/8 pan head phillips thread cutting |
2 |
|
|
029 |
170-7089
|
Strap (OBSOLETE) |
2 |
|
|
030 |
170-0647
|
Lock nut |
1 |
|
|
031 |
170-6017
|
Washer 1/2 NPT sealing |
1 |
|
|
032 |
999-0311
|
Washer #10 external star lock zinc plated |
1 |
|
|
