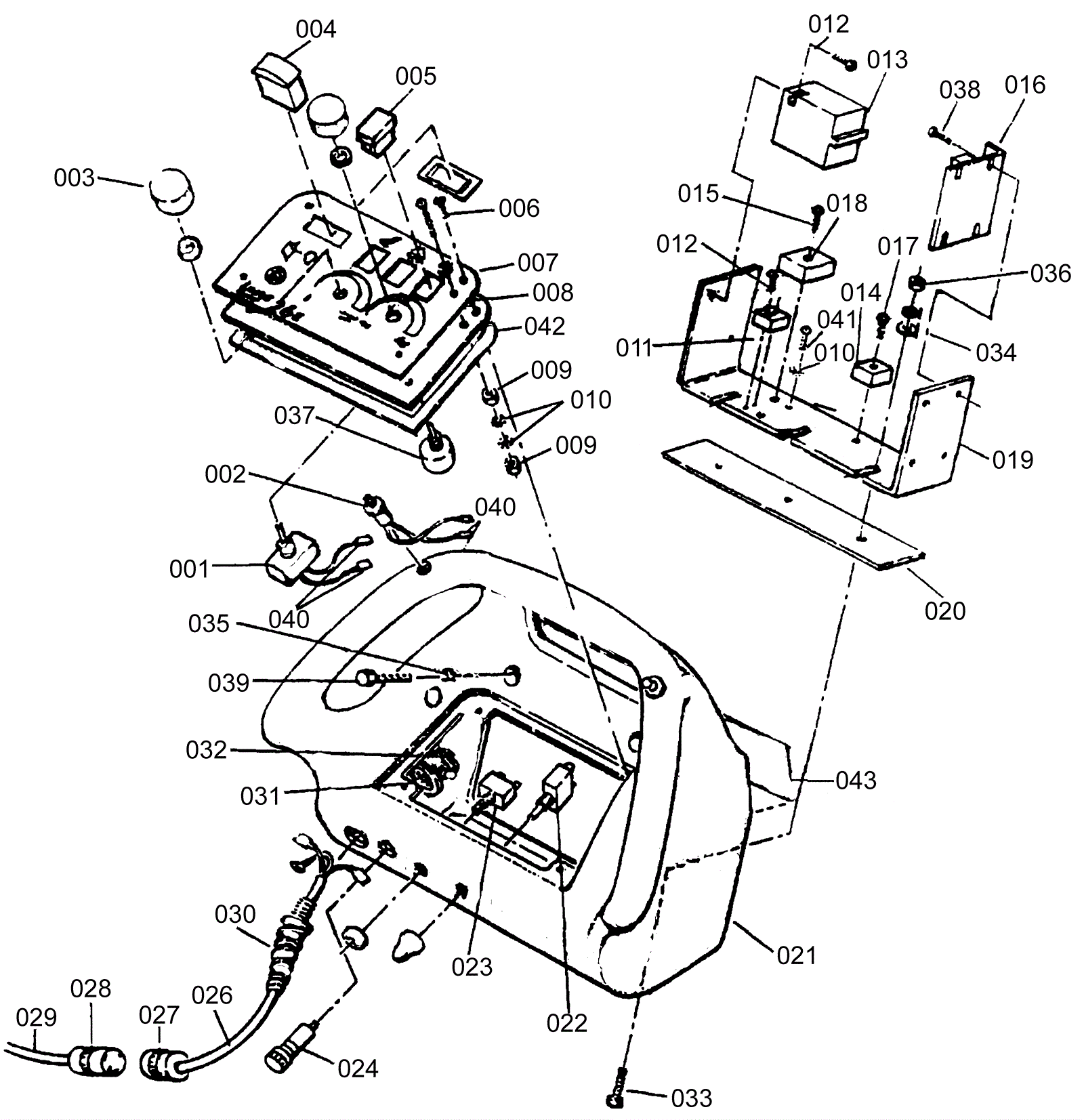

IMAGE 26E Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-1465 Variable speed control (OBSOLETE) $190.08 1 usually ships 16-41 days
002 170-1331 Forward switch $86.65 2 usually ships 16-41 days
003 170-8261 Knob solution flow module $34.66 2 usually ships 16-41 days
004 170-1466 Brush pressure meter (OBSOLETE) $64.24 1 usually ships 1-5 days
005 170-6163 On/off switch $34.66 3 usually ships 16-41 days
006 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 5 ships same day
007 170-1467 Control panel decal (OBSOLETE) $57.02 1 usually ships 1-5 days
008 170-1468 Control panel (OBSOLETE) $34.32 1 usually ships 1-5 days
009 999-0062 Nut 10-24 hex $0.99 2 ships same day
010 999-0311 Washer #10 external star lock zinc plated $0.99 3 ships same day
011 170-8063 Terminal block (OBSOLETE) $7.01 1 usually ships 1-5 days
012 999-0382 Screw 6-32 x 1/2 pan head slotted zinc plated $0.99 4 ships same day
013 170-1469 115V wire contactor (OBSOLETE) $176.55 1 usually ships 1-5 days
014 170-1470 115V isolation relay $482.90 1 usually ships 1-5 days
015 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated $0.99 1 ships same day
016 170-1471 Motor speed control (OBSOLETE) $308.88 1 usually ships 16-41 days
017 170-1463 Screw 10-32 x 1 $11.99 1 usually ships 1-5 days
018 170-6016 Rectifier $70.94 1 usually ships 1-5 days
019 170-1472 Handle plate (OBSOLETE) $93.26 1 usually ships 1-5 days
020 170-1336 Retaining plate (OBSOLETE) $33.22 1 usually ships 1-5 days
021 170-1473 Control handle (OBSOLETE) $254.49 1 usually ships 1-5 days
022 170-0087 1.5amp circuit breaker $33.96 1 usually ships 16-41 days
023 170-1474 2.5amp circuit breaker (OBSOLETE) $15.73 1 usually ships 1-5 days
024a 170-6074 115V fuse holder (OBSOLETE) $27.76 1 usually ships 16-41 days
024b 170-6087 1.25amp slow blow fuse (OBSOLETE) $10.56 1 usually ships 16-41 days
026 170-1475 Interconnect cord (OBSOLETE) $7.48 1 usually ships 16-41 days
027 170-1476 Male electrical plug $66.87 1 usually ships 4-15 days
028 170-1477 Female electrical connector $78.44 1 usually ships 1-5 days
029 170-1478 14/3 extension cord $413.02 1 usually ships 1-5 days
030 172-1561 Strain relief $28.84 1 ships same day
031 999-0721 Washer 7/8 USS flat zinc plated $2.79 1 ships same day
032 170-0294 Nut 1/2 conduit lock $11.99 1 usually ships 16-41 days
033 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 2 ships same day
034 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
035 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
036 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
037a 170-1479 Potentiometer assembly (OBSOLETE) $76.52 1 usually ships 1-5 days
037b 172-2039 5K potentiometer $61.41 1 ships same day
038 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 4 ships same day
039 999-0505 Screw 3/8-16 x 2 flat head socket zinc plated $1.41 2 ships same day
040 170-6081 1/4 terminal $3.28 4 usually ships 1-5 days
041 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel $0.99 1 ships same day
042 170-1342 Control panel gasket $10.52 1 usually ships 1-5 days
043 170-1341 Handle gasket (OBSOLETE) $7.70 1 usually ships 1-5 days
N/S 170-1451 Wiring harness (OBSOLETE) $161.06 1 usually ships 1-5 days
