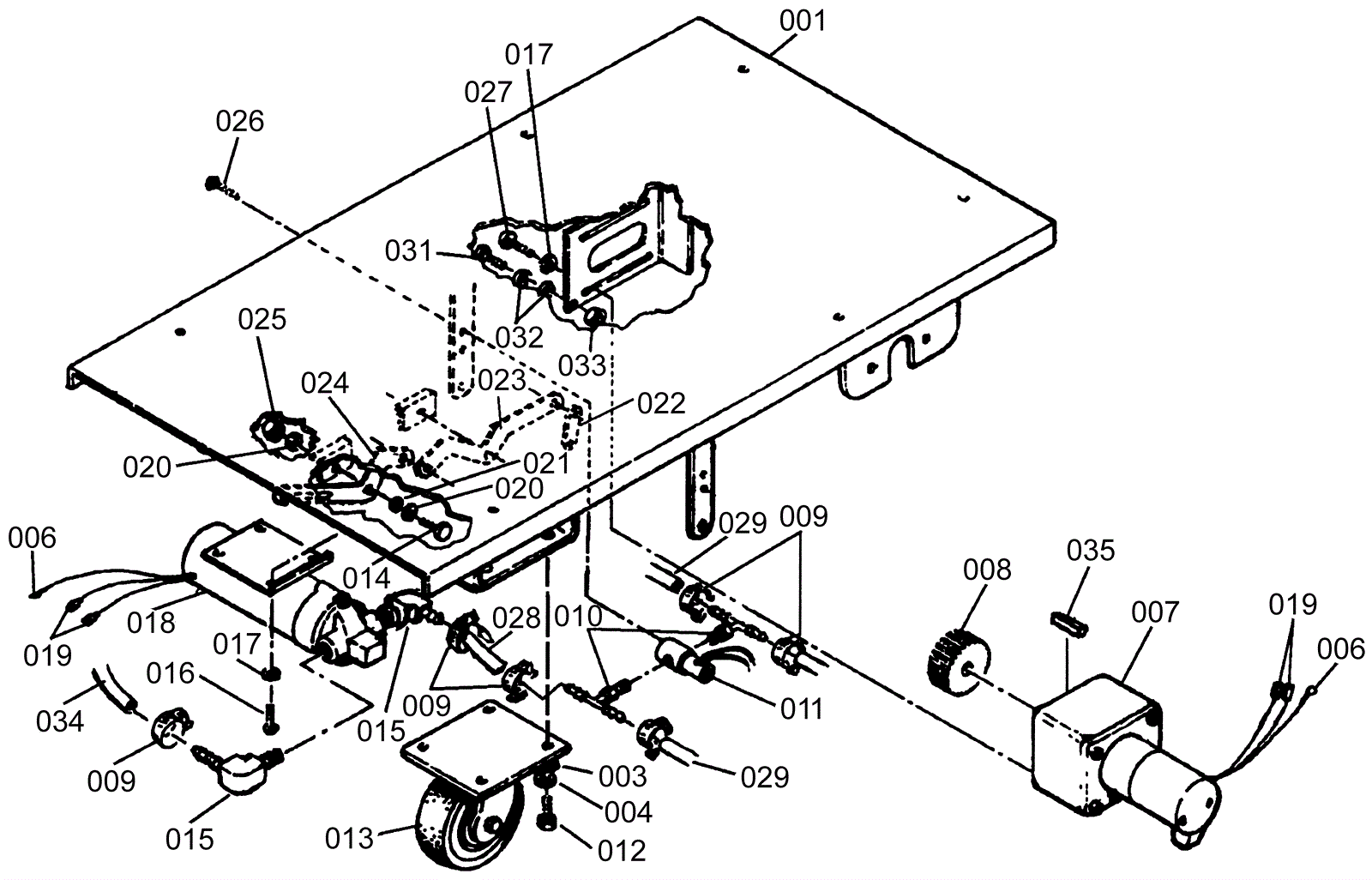

IMAGE 26E Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-1453 Main frame (OBSOLETE) $443.60 1 usually ships 1-5 days
003 999-0032 Washer 3/8 USS flat plain finish $2.42 16 ships same day
004 999-0659 Washer 3/8 medium split lock stainless steel $0.39 14 ships same day
005 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 14 ships same day
006 170-6014 Terminal clip $2.35 2 usually ships 4-15 days
007 170-1454 Traverse motor (OBSOLETE) $852.98 1 usually ships 16-41 days
008 170-1455 Traverse driven pulley (OBSOLETE) $55.10 1 usually ships 16-41 days
009 997-2001 Hose clamp $2.42 6 ships same day
010 170-6066 Tee (OBSOLETE) $16.50 2 usually ships 16-41 days
011 170-1456 Solenoid valve $285.97 2 usually ships 16-41 days
012 999-0812 Screw 3/8-16 x 7/8 hex head grade 5 plain finish $0.99 8 ships same day
013a 991-2011 Caster wheel assembly $103.56 2 (includes 013b) ships same day
013b 170-7201 Caster wheel $80.32 2 usually ships 7-17 days
014 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
016 999-0400 Screw 10-24 x 1 pan head phillips zinc plated $0.99 4 ships same day
017 999-0006 Washer 3/16 flat zinc plated $0.99 8 ships same day
018 170-1458 115V pump $902.54 1 usually ships 1-5 days
019 170-6081 1/4 terminal $3.28 4 usually ships 1-5 days
020 999-0016 Washer 1/4 flat plain finish $0.99 8 ships same day
021 170-1360 Spacer (OBSOLETE) $6.78 5 usually ships 1-5 days
022 170-1459 Brush lifting arm (OBSOLETE) $24.95 1 (short) usually ships 1-5 days
023 170-1460 Brush lifting arm (OBSOLETE) $20.08 1 (long) usually ships 1-5 days
024 170-1461 Lifting arm (OBSOLETE) $29.08 1 usually ships 1-5 days
025 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
026 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated $0.99 2 ships same day
027 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel $0.99 4 ships same day
028 170-1462 Intake hose (OBSOLETE) $7.01 1 usually ships 1-5 days
029 170-6050 24 inch solution hose $8.80 2 usually ships 1-5 days
031 170-1463 Screw 10-32 x 1 $11.99 1 usually ships 1-5 days
032 999-0311 Washer #10 external star lock zinc plated $0.99 2 ships same day
033 999-0460 Nut 10-32 hex $0.99 1 ships same day
034 170-1383 Hose 3/8 x 36 inch (OBSOLETE) $13.75 1 usually ships 1-5 days
035 170-1464 Square keyway $1.65 1 usually ships 4-15 days
N/S 170-6064 14 inch solution hose $9.13 1 usually ships 1-5 days
N/S 372-1829 Washer flat .47 x .94 x .06 flat steel (OBSOLETE) $10.52 6 usually ships 16-41 days
