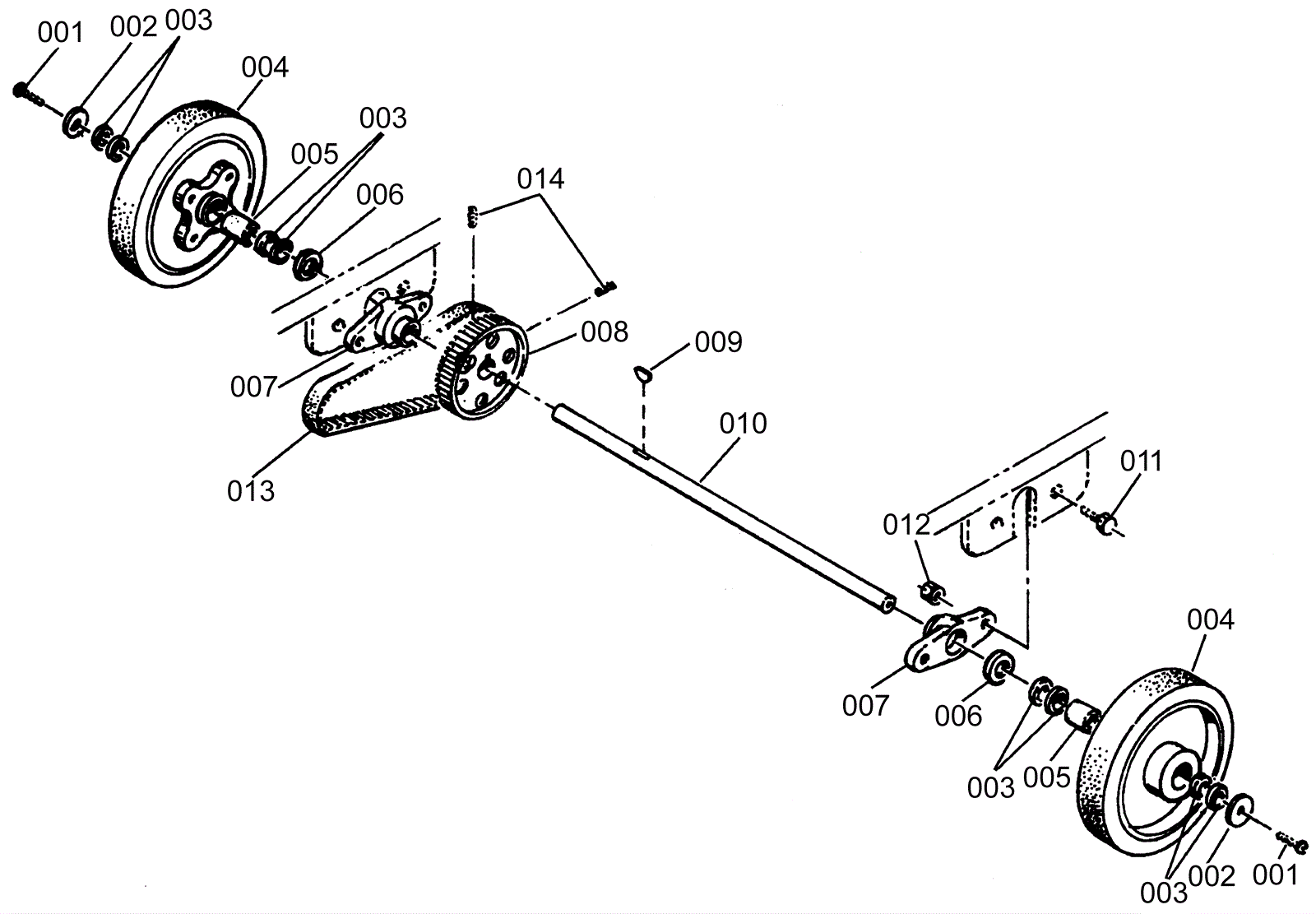

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0644
|
Bolt 1/4-20 x 1/2 hex head stainless steel |
2 |
|
|
002 |
154-4002
|
Retainer washer |
2 |
|
|
003 |
170-1436
|
Oil seal (OBSOLETE) |
8 |
|
|
004 |
170-1437
|
Drive wheel |
2 |
|
|
005 |
170-1438
|
Roller clutch bearing |
2 |
|
|
006 |
999-0630
|
Washer 3/4 SAE flat |
2 |
|
|
007 |
170-1439
|
Bearing block (OBSOLETE) |
2 |
|
|
008 |
170-1440
|
Traverse driven sprocket (OBSOLETE) |
1 |
|
|
009 |
170-0672
|
Square keyway |
1 |
|
|
010 |
170-1441
|
Wheel shaft (OBSOLETE) |
1 |
|
|
011 |
999-0197
|
Screw 1/4-20 x 1 socket head alloy plain finish |
4 |
|
|
012 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
|
013 |
170-1442
|
Traverse drive belt |
1 |
|
|
014 |
999-0332
|
Screw 10-24 x 5/8 pan head phillips stainless steel |
2 |
|
|
