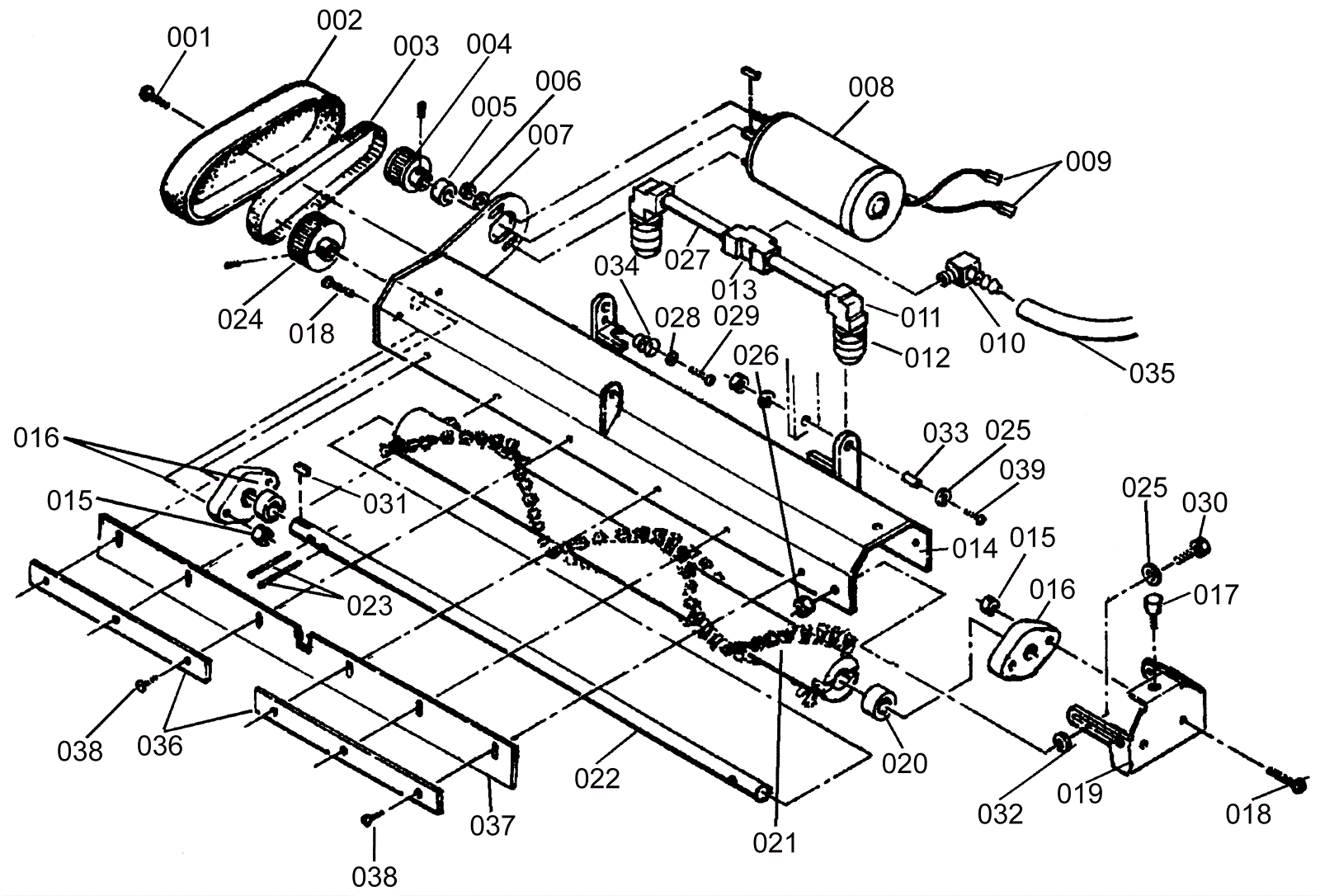

IMAGE 26E Brush Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 2 ships same day
002 170-1313 Belt cover $164.00 1 usually ships 1-5 days
003 170-6205 Brush drive belt (OBSOLETE) $52.69 1 usually ships 16-41 days
004 170-6108 Timing pulley (OBSOLETE) $67.11 1 usually ships 16-41 days
005 170-6105 Motor spacer $10.52 1 usually ships 1-5 days
006 999-0460 Nut 10-32 hex $0.99 2 ships same day
007 999-0311 Washer #10 external star lock zinc plated $0.99 2 ships same day
008a 170-1428 1/4HP brush motor (OBSOLETE) $501.16 1 usually ships 1-5 days
008b N/A Not available Call for price 2 (Carbon brush) usually ships 3-26 days
009 170-6081 1/4 terminal $3.28 2 usually ships 1-5 days
010 170-1297 3/8 elbow (OBSOLETE) $9.13 1 usually ships 16-41 days
011 170-1299 90 degree 1/4 brass elbow (OBSOLETE) $7.59 2 usually ships 16-41 days
012 170-1301 1/4 spray nozzle $81.95 2 usually ships 1-5 days
013 209-0610 1/4 inch tee brass $11.99 1 usually ships 16-41 days
014 170-1430 Brush frame weldment (OBSOLETE) $286.89 1 usually ships 1-5 days
015 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 6 ships same day
016 170-1304 Bearing assembly $311.19 2 usually ships 16-41 days
017 170-1306 Clamping knob $19.09 1 usually ships 1-5 days
018 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel $1.07 4 ships same day
019 170-1307 Brush end door (OBSOLETE) $30.58 1 usually ships 1-5 days
020 170-0213 Nylon washer $23.95 1 usually ships 16-41 days
021a 170-1311 Maintenance brush (OBSOLETE) $477.53 1 usually ships 16-41 days
021b 170-1431 Bristle restoration brush $390.50 1 usually ships 1-5 days
022 170-1308 Brush shaft (OBSOLETE) $173.27 1 usually ships 1-5 days
023 170-1309 Brush drive pin $10.52 2 usually ships 16-41 days
024 170-1312 Brush pulley (OBSOLETE) $67.19 1 usually ships 1-5 days
025 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
026 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 2 ships same day
027 170-1298 4 inch brass nipple (OBSOLETE) $16.72 2 usually ships 1-5 days
028 999-0006 Washer 3/16 flat zinc plated $0.99 3 ships same day
029 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 1 ships same day
030 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated $0.99 2 ships same day
031 372-1720 Key $11.99 1 usually ships 16-41 days
032 170-1305 Brush door spacer (OBSOLETE) $7.92 2 usually ships 1-5 days
033 170-1432 Spacer (OBSOLETE) $10.73 2 usually ships 1-5 days
034 170-1302 Spring (OBSOLETE) $6.78 1 usually ships 1-5 days
035 170-8938 Hose (OBSOLETE) $8.32 1 usually ships 1-5 days
036 170-1433 Skirt retainer (OBSOLETE) $9.86 2 usually ships 1-5 days
037 170-1434 Brush housing skirt (OBSOLETE) $9.02 1 usually ships 1-5 days
038 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel $0.99 6 ships same day
039 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 2 ships same day
