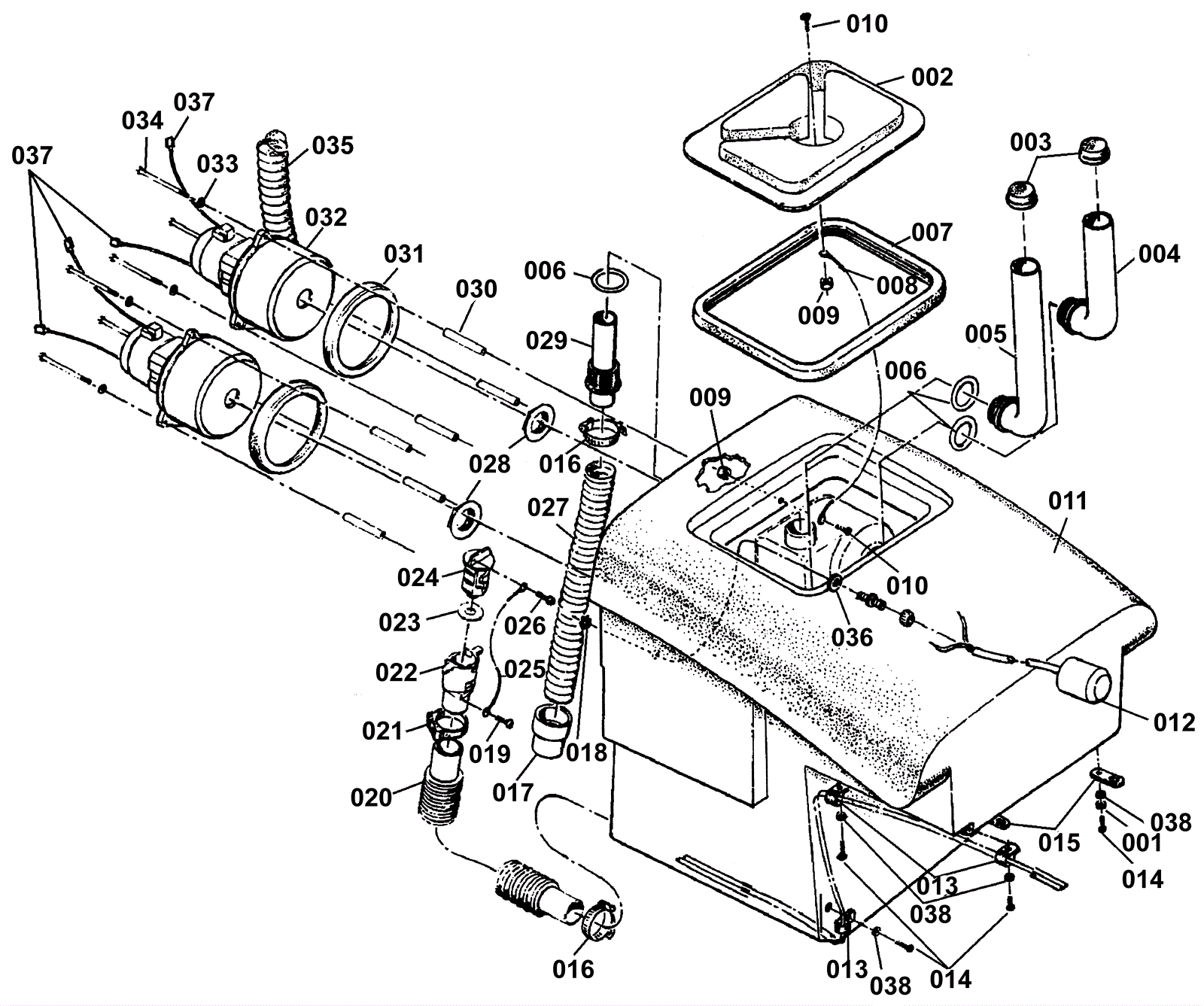

IMAGE 26B Recovery Tank and Hose Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
002 170-0022 Recovery tank lid $115.52 1 usually ships 16-41 days
003 170-7104 Vacuum filter screen $46.92 2 ships same day
004 170-1361 Vacuum standpipe $24.96 1 usually ships 1-5 days
005 170-1362 Vacuum standtube (OBSOLETE) $1,103.74 1 usually ships 1-5 days
006 170-0273 O-ring $7.47 3 ships same day
007 170-0023 Recovery tank lid gasket $40.45 1 ships same day
008 170-7089 Strap (OBSOLETE) $10.56 1 usually ships 16-41 days
009 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
010 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated $0.99 2 ships same day
011 170-1363 Recovery tank (OBSOLETE) $494.80 1 usually ships 1-5 days
012 170-6032 Float switch (OBSOLETE) $143.22 1 usually ships 16-41 days
013 170-7071 Metal clamp $10.52 3 usually ships 1-5 days
014 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 7 ships same day
015 170-1364 Solution/Recovery bracket (OBSOLETE) $7.81 2 usually ships 1-5 days
016 997-2007 Hose clamp $2.07 2 ships same day
017 170-1365 Hose cuff (OBSOLETE) $32.74 1 usually ships 1-5 days
018 170-0294 Nut 1/2 conduit lock $11.99 1 usually ships 16-41 days
019 999-0576 Screw 8-18 x 1/2 pan head phillips self-drilling ss $0.99 1 ships same day
020 170-2157 Drain Hose (OBSOLETE) $79.84 1 usually ships 16-41 days
021 164-0218 Nylon hose clamp $3.69 1 ships same day
022 170-0043 Drain valve $25.36 1 ships same day
023 170-0032 Drain valve gasket $10.56 1 ships same day
024 170-0042 Drain valve handle $25.36 1 usually ships 16-41 days
025 170-0268 Drain chain assembly $11.99 1 usually ships 16-41 days
026 999-0663 Screw 10-24 x 3/8 pan head phillips thread cutting $0.99 1 ships same day
027 170-1367 Shoe to tank hose (OBSOLETE) $16.63 1 usually ships 1-5 days
028 170-0647 Lock nut $10.56 2 usually ships 16-41 days
029 170-1368 Vacuum adapter assembly (OBSOLETE) $10.45 1 usually ships 1-5 days
030 170-0274 Vacuum motor spacer $28.46 6 usually ships 16-41 days
031a 164-0881 Vacuum motor gasket $13.42 2 ships same day
031b 991-3029 Vacuum motor gasket $2.36 2 (NON-OEM) ships same day
032a 991-1202 36V 3 stage vacuum motor tangential $109.34 2 ships same day
032b 991-1222 Plastic covered carbon brush (sold individually) $10.77 ships same day
032c 991-1234 Vacuum motor rotating fan $9.10 2 usually ships 1-5 days
033 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 6 ships same day
034 999-0165 Bolt 1/4-20 x 4 hex head grade 5 zinc plated $1.39 6 ships same day
035 170-1369 Vacuum exhaust hose (OBSOLETE) $16.25 1 usually ships 16-41 days
036 170-6017 Washer 1/2 NPT sealing $13.40 1 usually ships 16-41 days
037 170-6081 1/4 terminal $3.28 4 usually ships 1-5 days
038 999-0016 Washer 1/4 flat plain finish $0.99 7 ships same day
