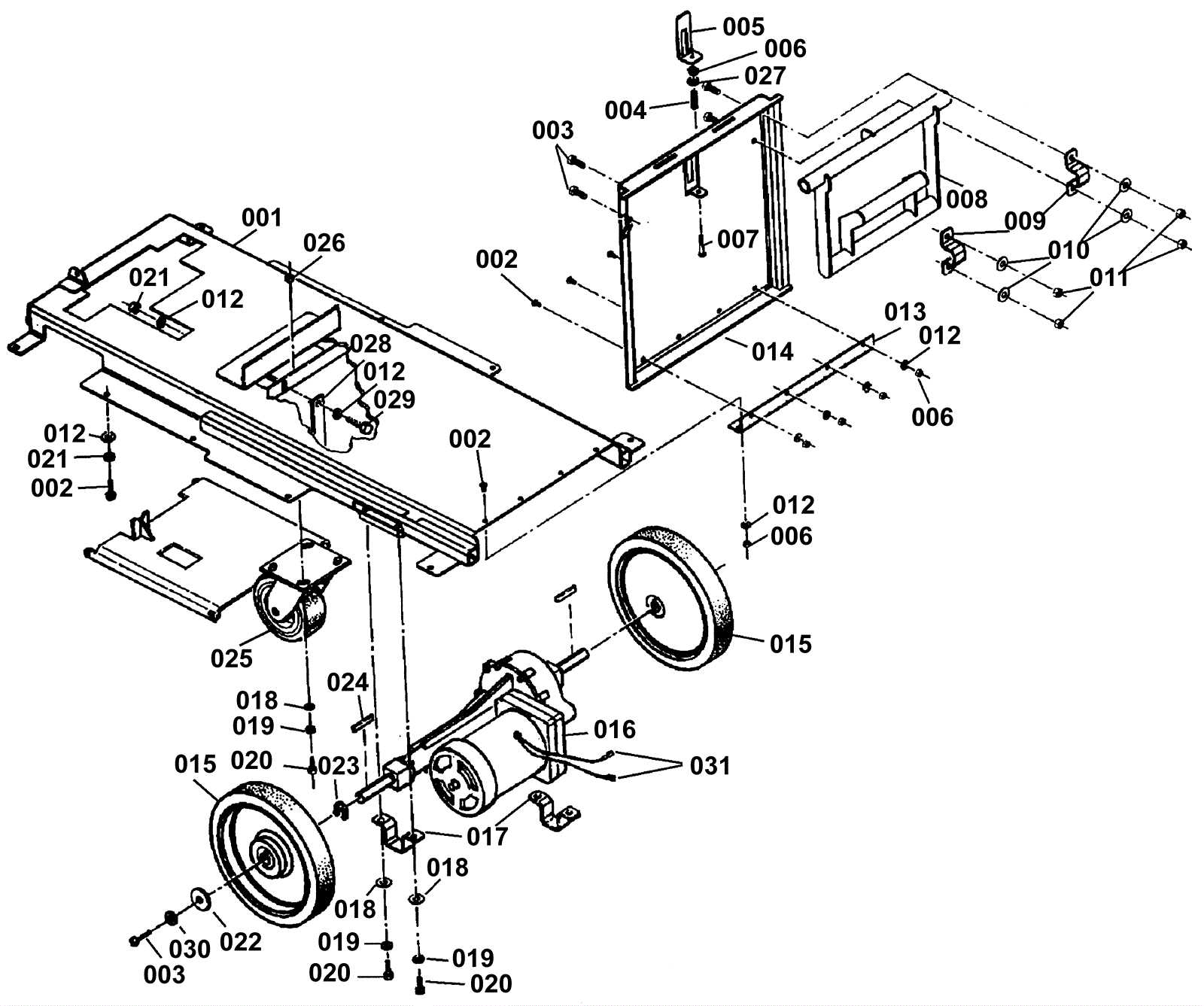

IMAGE 26B Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-1314 Frame Weldment (OBSOLETE) $633.27 1 usually ships 1-5 days
002 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 19 ships same day
003 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 6 ships same day
004 170-1315 Spring (OBSOLETE) $8.58 1 usually ships 1-5 days
005 170-1316 Bridge latch (OBSOLETE) $22.92 1 usually ships 1-5 days
006 999-0190 Nut 1/4-20 hex plain finish $0.99 9 ships same day
007 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 1 ships same day
008 N/A Not available Call for price 1 (Not Available) Handle usually ships 3-26 days
009 N/A Not available Call for price 2 (Not Available) Handle clamp usually ships 3-26 days
010 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
011 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
012 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 20 ships same day
013 170-1319 Hinge (OBSOLETE) $70.51 1 usually ships 1-5 days
014 N/A Not available Call for price 1 (Not Available) Bridge usually ships 3-26 days
015 170-1321 Wheels (OBSOLETE) $327.80 2 usually ships 1-5 days
016 170-1322 Transaxle (OBSOLETE) $1,904.29 1 usually ships 1-5 days
017 170-1323 Clamp $31.83 2 usually ships 1-5 days
018 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
019 999-0659 Washer 3/8 medium split lock stainless steel $0.39 4 ships same day
020 999-0812 Screw 3/8-16 x 7/8 hex head grade 5 plain finish $0.99 8 ships same day
021 999-0060 Washer 1/4 split lock plain finish $0.99 18 ships same day
022 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 2 ships same day
023 170-1324 Snap ring $9.58 2 usually ships 4-15 days
024 170-1325 Key $10.52 2 usually ships 1-5 days
025a 991-2011 Caster wheel assembly $103.56 1 ships same day
025b 170-7201 Caster wheel $80.32 usually ships 7-17 days
026 999-0170 Nut 3/8-16 hex plain finish $0.99 4 ships same day
027 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
028 170-1326 Static strap (OBSOLETE) Call for price 1 usually ships 1-5 days
029 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
030 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
031 170-6081 1/4 terminal $3.28 2 usually ships 1-5 days
N/S 170-8163 Chemical metering tips $10.52 usually ships 1-5 days
