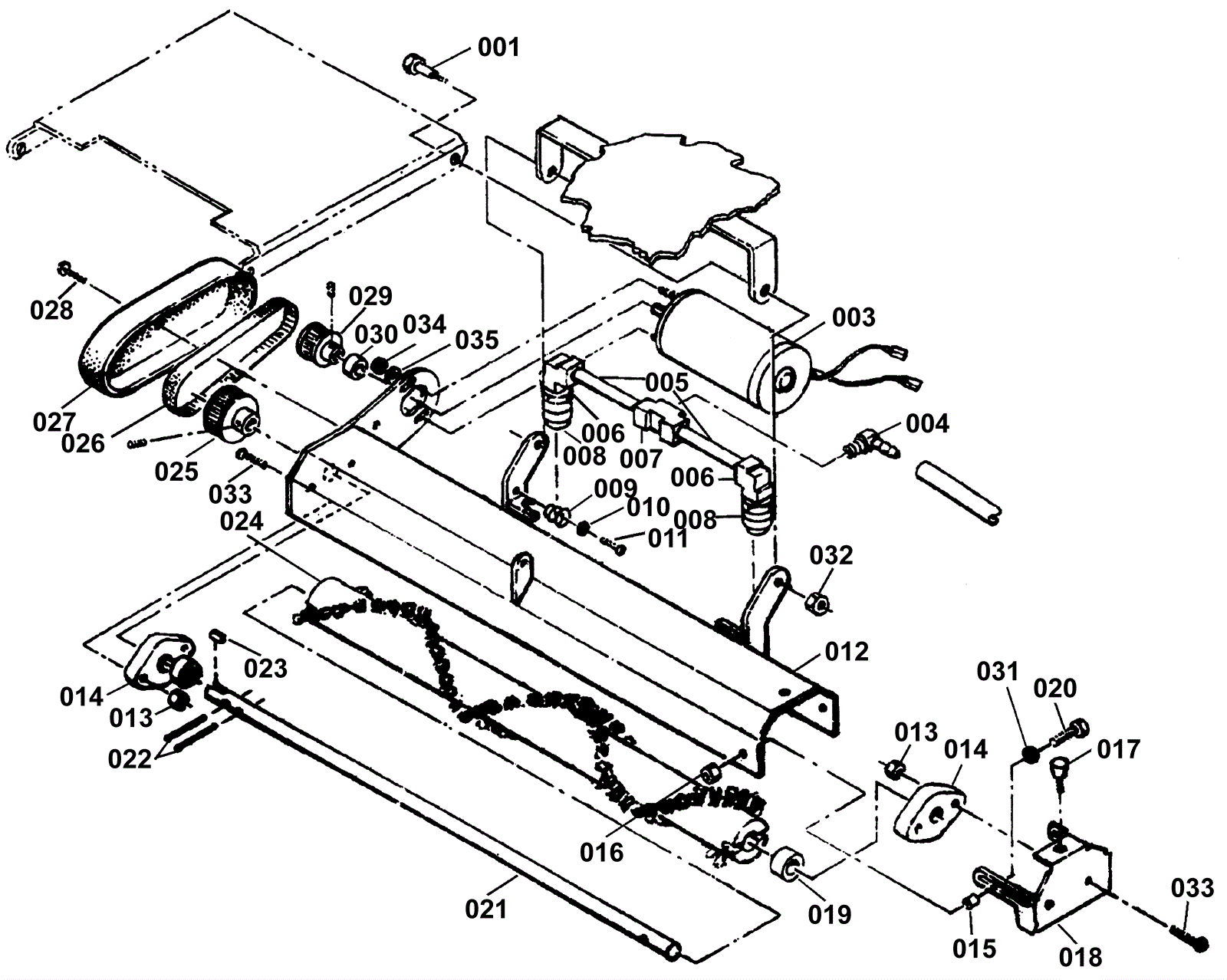

IMAGE 26B Brush Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-1295 Bolt 3/8 x 3/8 plated shoulder (OBSOLETE) $11.25 2 usually ships 16-41 days
003 170-1296 Brush motor (OBSOLETE) $715.55 1 usually ships 1-5 days
004 170-1297 3/8 elbow (OBSOLETE) $9.13 1 usually ships 16-41 days
005 170-1298 4 inch brass nipple (OBSOLETE) $16.72 2 usually ships 1-5 days
006 170-1299 90 degree 1/4 brass elbow (OBSOLETE) $7.59 2 usually ships 16-41 days
007 209-0610 1/4 inch tee brass $11.99 1 usually ships 16-41 days
008a 170-1301 1/4 spray nozzle $81.95 2 usually ships 1-5 days
008b 370-2212 NOZZLE PLASTIC PRE-SPRAY $79.84 3 usually ships 16-41 days
009 170-1302 Spring (OBSOLETE) $6.78 1 usually ships 1-5 days
010 999-0006 Washer 3/16 flat zinc plated $0.99 1 ships same day
011 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 1 ships same day
012 170-1303 Brush housing (OBSOLETE) $121.72 1 usually ships 1-5 days
013 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
014 170-1304 Bearing assembly $311.19 2 usually ships 16-41 days
015 170-1305 Brush door spacer (OBSOLETE) $7.92 2 usually ships 1-5 days
016 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 2 ships same day
017 170-1306 Clamping knob $19.09 1 usually ships 1-5 days
018 170-1307 Brush end door (OBSOLETE) $30.58 1 usually ships 1-5 days
019 170-0213 Nylon washer $23.95 1 usually ships 16-41 days
020 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated $0.99 2 ships same day
021 170-1308 Brush shaft (OBSOLETE) $173.27 1 usually ships 1-5 days
022 170-1309 Brush drive pin $10.52 2 usually ships 16-41 days
023 372-1720 Key $11.99 1 usually ships 16-41 days
024 170-1311 Maintenance brush (OBSOLETE) $477.53 1 usually ships 16-41 days
025 170-1312 Brush pulley (OBSOLETE) $67.19 1 usually ships 1-5 days
026 170-6205 Brush drive belt (OBSOLETE) $52.69 1 usually ships 16-41 days
027 170-1313 Belt cover $164.00 1 usually ships 1-5 days
028 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 2 ships same day
029 170-6108 Timing pulley (OBSOLETE) $67.11 1 usually ships 16-41 days
030 170-6105 Motor spacer $10.52 1 usually ships 1-5 days
031 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
032 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
033 999-0398 Screw 1/4-20 x 1 1/2 pan head phillips zinc plated $0.99 4 ships same day
034 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
035 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
