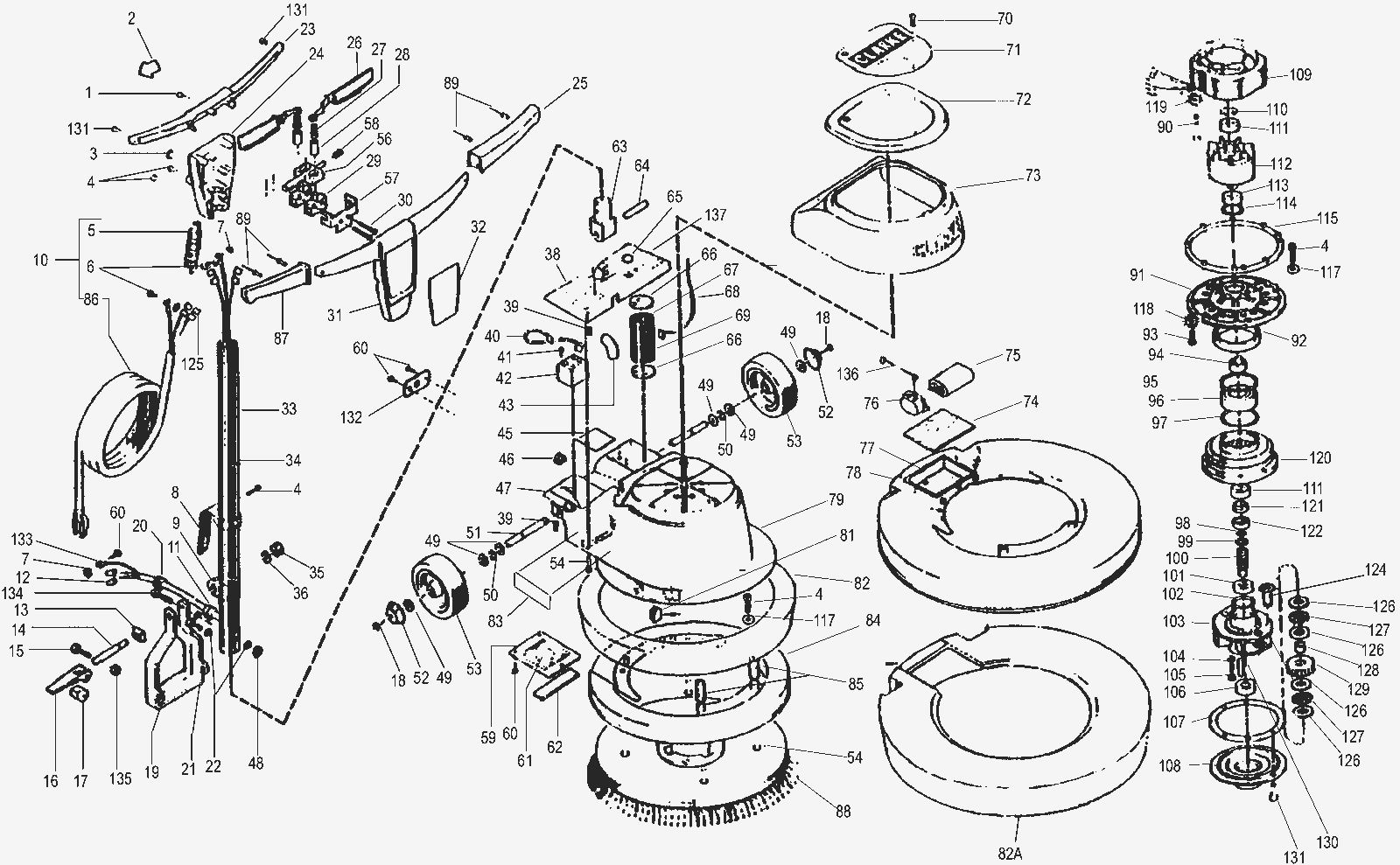

Floor Maintainer

#PartDescription ReqNotesAvailability
1 999-0368 Screw 10-24 x 1 socket head alloy plain finish 1
2 170-5574 Interlock label 1
3 170-5575 Button plug 1
4a 170-5576 Screw 1/4-20 x 3/4 socket cap 7
4b 170-5576 Screw 1/4-20 x 3/4 socket cap 5 (fm2300)
5a 172-1561 Strain relief 1
5b 170-5578 Strain relief (OBSOLETE) 1 (fm2300)
6 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 2
7 154-3992 Washer 3/16 star 3
8 572-0467 Cord hook 1
9 170-5553 Handle tube clamp 1
10a 170-5581 50ft extension cord assembly 1 (includes 005, 006, 086)
10b 170-5582 Cord assembly 50ft extension FM2300 (OBSOLETE) 1 (fm2300)
11 170-5583 Strain relief 1
12a 170-5584 Connector 2 (120V)
12b 170-5584 Connector 3 (230V)
13 170-6224 Guide handle lock 1
14 170-5586 Cam lock bolt 1
15 999-0524 Screw 1/4-20 x 3/4 socket head shoulder 1
16 170-5557 Cam locking handle 1
17 N/A Not available 1 (clamp stop)
18 999-0323 Screw 1/4-20 x 1/2 pan head slotted zinc plated 2
19 154-3979 Adjusting arm weldment 1
20 170-5590 Strain relief 1
21 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated 1
22 999-0028 Washer 5/16 split lock plain finish 3
23 170-5591 Handle and switch housing 1
24a 170-5592 Switch housing cover 1
24b 170-5593 Switch housing cover FM 2300 (OBSOLETE) 1 (fm2300)
25 170-5594 Left handle grip (OBSOLETE) 1
26 170-5554 Switch lever 2
27 170-5555 Switch lever spring 2
28 170-5564 Switch adaptor 2
29 154-2792 Switch (OBSOLETE) 2
30 170-5595 Screw 6-32 x 1 5/8 pan head st 2
31 170-5596 Switch front cover 1
32a 170-5597 Switch housing label FM1500 (OBSOLETE) 1 (fm1500)
32b 170-5598 Switch housing label FM 1700 (OBSOLETE) 1 (fm1700)
32c 170-5599 Switch housing label FM 2000 1 (fm2000)
32d 170-5600 Switch housing label FM 2300 (OBSOLETE) 1 (fm2300)
33 154-3719 Handle assembly 1 (includes 009)
35 170-5602 Washer 1
36 999-0118 Nut 1/2-13 nylon insert lock zinc plated 1
38 170-5604 Main housing cover 1
39 154-3990 Screw 1/4 x 5/16 set 2
40a 154-3993 Capacitor wiring harness 1
40b 154-3993 Capacitor wiring harness 2 (fm2300)
41 999-0463 Screw 6-32 x 3/8 pan head slotted zinc plated 1
42 170-5608 Motor relay 3/4 hp - 1 1/2 hp FM 2300 1 (fm2300)
43 154-3973 Elbow insulator 1
46a 170-5611 Bushing 2
46b 170-5611 Bushing 3 (fm2300)
47 170-5613 Bushing Link Arm 2
48 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
49 170-5570 Wheel thrust washer 6
50 170-5614 Retaining Ring 2
51 154-3994 Wheel shaft 1
52 170-8031 Hub cap 2
53 170-5556 Wheel assembly (set of 2 w/hardware) (gray) 1
54 999-0338 Screw 1/4-20 x 1/2 socket head shoulder 9
56 170-5616 Switch interlock stop 1
57 170-5617 Stop switch bracket 1
58 170-5561 Switch lever spring 1
59a 154-3986 Main bottom cover 1
59b 170-5619 Main Housing (Bottom Cover) FM2300 (OBSOLETE) 1 (fm2300)
60 999-0574 Screw 10-24 x 1 3/4 pan head slotted zinc plated 6
61a 170-5620 Wiring Diagram 1
61b 170-5621 Wiring Diagram 1
62 170-5622 Cushion Capacitor (OBSOLETE) 2
63 154-3955 Handle tube tongue 1
64 154-3981 Pin handle pivot 1
65 154-3987 25/32 inch button plug 1
66 154-3972 Capacitor cushion 2
67 170-5627 Capacitor Cover 1
68 154-3993 Capacitor wiring harness 1
69 170-0491 115V capacitor 1
70 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 3
72 170-5631 Drip Cover 1
73 154-3977 Main housing bumper 1
74 170-5633 Cushion Capacitor (bottom) 1
75 170-5634 Run Capacitor FM2300 (OBSOLETE) 2
76 170-5635 Run Capacitor Boot (OBSOLETE) 2
77 170-5636 Capacitor Cushion (OBSOLETE) 1 (fm2300)
78 170-5637 Shield (OBSOLETE) 1 (fm2300)
79a 154-3970 Main housing 1
79b 170-5649 Main Housing FM-2300 (OBSOLETE) 1 (fm2300)
81 154-3976 FM plug 1
82a 170-5651 Bumper FM 1500 1 (fm1500)
82b 170-5652 Bumper FM 1700 1 (fm1700)
82c 170-5653 Bumper FM 2000 1 (fm2000)
82d 170-5654 Bumper FM 2300 (OBSOLETE) 1 (fm2300)
84a 170-5656 FM1500 brush shield (OBSOLETE) 1
84b 170-5657 FM1700 brush shield 1
84c 170-5658 FM2000 brush shield 1
85 170-5659 Brush Shield Spacer 2
86a 170-5660 Cord 50 Ft 1
86b 170-5661 Cord 50 Ft (OBSOLETE) 1 (fm2300)
86c 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
86d 991-5001 14/3 extension cord 50 foot (yellow) 1 (NON-OEM)
87 170-5639 Grip Handle (right) (OBSOLETE) 1
88a 996-0830 Polypropelene scrubbing brush (OBSOLETE) 1 (fm1500HD)
88b 996-0832 Polypropelene scrubbing brush 1 (fm1700HD)
88c 996-0696 Polypropelene scrubbing brush 1 (fm2000)
88d 996-0831 Polypropelene scrubbing brush 1 (fm2300)
89 170-5642 Rivet 1/8 x 3/8 4
90a 999-0652 Screw 10-24 x 2 round head slotted zinc plated 4
90b 999-0610 Screw 1/4-20 x 2 1/2 pan head phillips stainless steel 4 (fm2300)
91 170-5643 Adapter Gear Unit 1
92 170-5644 Seal 1
93a 999-0415 Screw 1/4-20 x 3/4 pan head slotted zinc plated 8
93b 999-0398 Screw 1/4-20 x 1 1/2 pan head phillips zinc plated 10
94 170-5645 Coupling Drive 1 (Please review part picture before ordering. Does not work for older models with a shear coupler. If your unit has a shear coupler, you will need to replace the gearbox.)
95 170-5646 Retaining Ring 1
96 170-5647 Bearing 1
97 170-5648 Gear O ring seal 1
98 170-5662 O Ring 1
99 170-5663 Retaining Ring 1
100 170-5664 Pinion Shaft 1
101 170-5665 Bearing 1
102 170-5666 Idler Housing O Ring Seal 1
103 170-5667 Idler Housing Gear 1
104 999-0028 Washer 5/16 split lock plain finish 2
105 999-0573 Screw 5/16-18 x 1 1/4 socket head alloy plain finish 2
106 164-0355 Bottom bearing large 1
107 170-5668 Gear unit gasket 1
108 170-5669 Gear Housing Cover Ring 1
109a 170-5670 FM 15-17-2000 Field 1 HP 1
109b 170-5726 Field 1 1/2 HP (OBSOLETE) 1 (fm2300)
110 170-5671 Load Spring 1
111 170-0321 Front end bearing 2
112a 154-3975 Field and rotor kit 1
112b 170-5673 FM 15-17-2000 Amature 1-1/2 HP (OBSOLETE) 1 (fm2300)
113 170-0320 Bottom bearing 1
114 170-5674 Retaining Ring 1
115 170-5675 Gear Spacer Unit FM 2300 (OBSOLETE) 1
117 999-0060 Washer 1/4 split lock plain finish 2
118 999-0017 Washer 1/4 external star lock 8
119 999-0311 Washer #10 external star lock zinc plated
120 170-5677 Ring Gear Housing 1
121 170-5678 Oil Seal Spacer 1
122 170-0011 Small oil seal 1
124 170-5680 Planet Gear Shaft 2
125 170-5681 Terminal clip
126 154-3688 Thrust washer 8
127 170-5682 Thrust Bearing 4
128 170-5683 Idler Needle Bearing 2
129 170-5684 Idler Gear Bearing 2
130 170-5686 5/16 x 1-1/4 Dowel Pin 1
131 999-0322 Screw 10-24 x 1/2 socket head alloy plain finish 10
132 154-3988 Strain relief plate 1
133a 170-6014 Terminal clip 1
133b 170-5688 Terminal Clip FM 2300 1 (fm2300)
134 999-0573 Screw 5/16-18 x 1 1/4 socket head alloy plain finish 1
135 170-0465 Nut 1/4-20 ESNA heavy jam 1
137 170-5689 Fire and Sanding Plate 1
N/S 170-5690 White Lead Assembly FM 2300 (OBSOLETE) 2
N/S 170-0694 Odum coupling 1
N/S 170-2344 Motor assembly 1 HP 1
N/S 170-6226 Groove pin type 5 1/4x1 1
N/S 375-7487 Rivet 1/8 x 5/16 inch (OBSOLETE) 2
N/S 996-0074 14 inch Pad driver w/ riser 1 (fm1500)
N/S 991-2206 Center-Lok 3 pad holder 1
