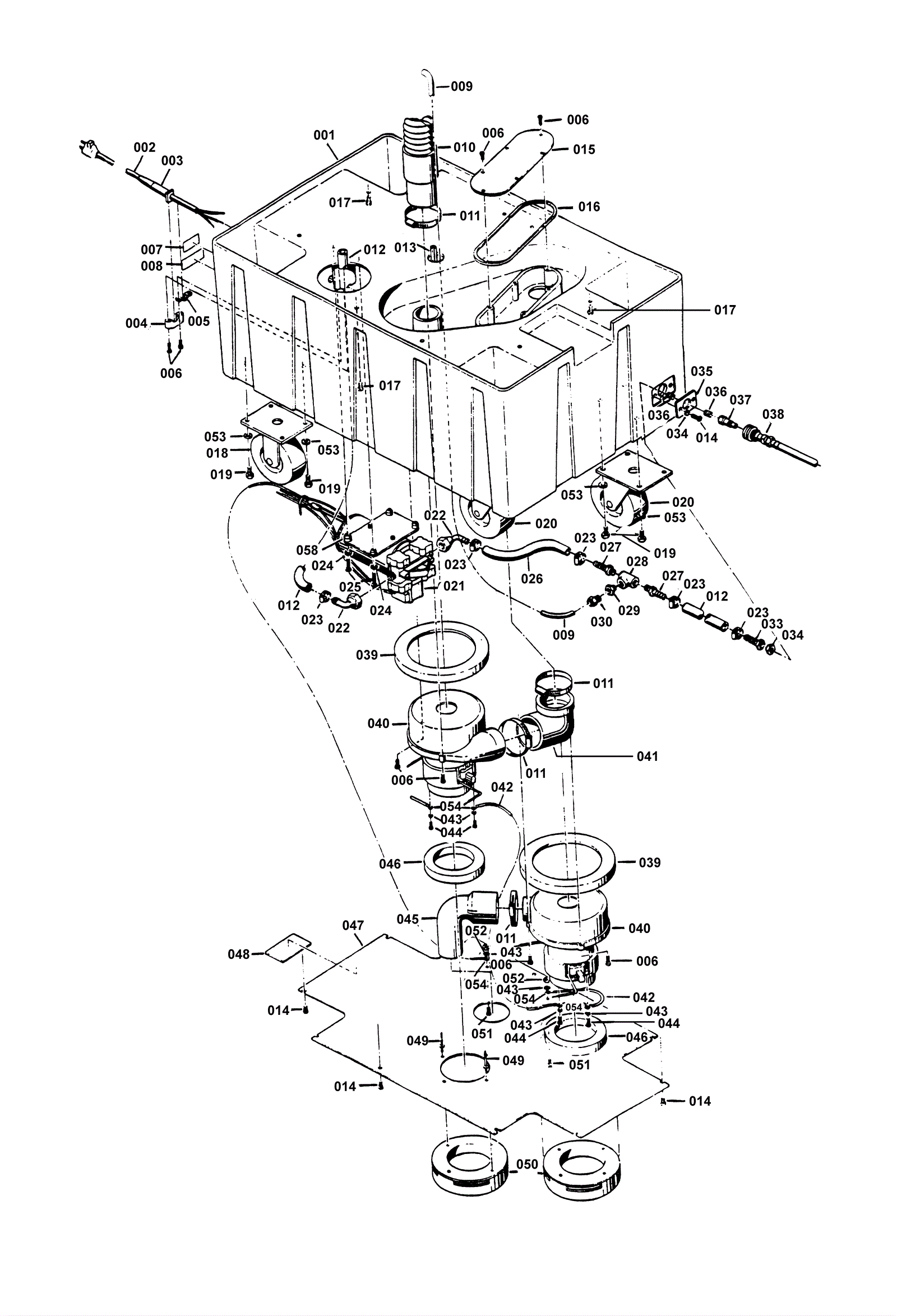

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-6128
|
Main Frame (OBSOLETE) |
1 |
|
|
002 |
170-6129
|
Power Cord 120 Volt (OBSOLETE) |
1 |
|
|
003 |
170-6131
|
Relief Strain (OBSOLETE) |
1 |
|
|
004 |
170-8056
|
Strain relief clamp (OBSOLETE) |
1 |
|
|
005 |
170-8057
|
Cord clamp (OBSOLETE) |
1 |
|
|
007 |
170-6133
|
Caution label |
1 |
|
|
008 |
170-6134
|
Warning Label (OBSOLETE) |
1 |
|
|
009 |
170-6135
|
Pressure Gauge Hose (OBSOLETE) |
1 |
|
|
010 |
170-6184
|
Vacuum Tank to Base Hose (OBSOLETE) |
1 |
|
|
011 |
170-6185
|
2-3/4 inch clamp (OBSOLETE) |
4 |
|
|
012 |
170-6064
|
14 inch solution hose |
4 |
|
|
013 |
170-6137
|
Harness Assembly (OBSOLETE) |
|
|
|
014 |
999-0110
|
Screw 10-16 x 1/2 pan head phillips self-drilling |
16 |
|
|
015 |
170-6138
|
Upper Chamber Cover (OBSOLETE) |
1 |
|
|
016 |
170-6139
|
Upper Chamber Gasket (OBSOLETE) |
1 |
|
|
017 |
999-0081
|
Screw 1/4-20 x 5/8 pan head slotted zinc |
8 |
|
|
018 |
170-6140
|
Rear Caster (OBSOLETE) |
2 |
|
|
019 |
170-0463
|
Screw 9/32-16 x 3/4 hex washer head hi-lo |
16 |
|
|
020 |
170-6141
|
Swivel caster (OBSOLETE) |
2 |
|
|
021 |
170-6030
|
120V pump |
1 |
|
|
022 |
170-6063
|
Swivel elbow |
2 |
|
|
023 |
997-2002
|
Hose clamp #6 |
5 |
|
|
024 |
999-0006
|
Washer 3/16 flat zinc plated |
10 |
|
|
025 |
170-6200
|
Screw 10-6 x 1 1/4 pan head |
4 |
|
|
026 |
170-6144
|
Discharge Hose |
1 |
|
|
027 |
170-6051
|
Hosebarb (OBSOLETE) |
1 |
|
|
028 |
209-0610
|
1/4 inch tee brass |
1 |
|
|
029 |
170-3090
|
Bushing 1/4 to 1/8 |
1 |
|
|
030 |
170-6146
|
1/4 Tube x 1/8 FPT Connector (OBSOLETE) |
1 |
|
|
033 |
170-6149
|
Adapter |
1 |
|
|
034 |
999-0032
|
Washer 3/8 USS flat plain finish |
3 |
|
|
035 |
170-6150
|
Mounting Plate (OBSOLETE) |
1 |
|
|
036 |
170-3123
|
1/8 close pipe nipple (OBSOLETE) |
1 |
|
|
037 |
991-8149
|
1/8 inch male quick disconnect |
1 |
Need 991-8157 to mate |
|
038 |
170-6126
|
20 foot hide a hose |
|
|
|
039a |
164-0881
|
Vacuum motor gasket |
2 |
|
|
039b |
991-3029
|
Vacuum motor gasket |
2 |
(NON-OEM) |
|
040 |
170-8008
|
115V motor assembly (OBSOLETE) |
2 |
|
|
041 |
170-8114
|
Exhaust hose (OBSOLETE) |
1 |
|
|
042 |
N/A
|
Not available |
2 |
(not available) Ground Wire Assembly |
|
043 |
999-0311
|
Washer #10 external star lock zinc plated |
6 |
|
|
044 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
4 |
|
|
045 |
170-6154
|
Accessory Adapter (OBSOLETE) |
1 |
|
|
046 |
170-6155
|
Bottom Vacuum Motor Gasket (OBSOLETE) |
2 |
|
|
047 |
170-6156
|
Frame Bottom Cover (OBSOLETE) |
1 |
|
|
048 |
N/A
|
Not available |
1 |
Serial Plate |
|
049 |
375-7487
|
Rivet 1/8 x 5/16 inch (OBSOLETE) |
8 |
|
|
050 |
170-6161
|
Air Intake Baffle Assembly (OBSOLETE) |
2 |
|
|
051 |
999-0332
|
Screw 10-24 x 5/8 pan head phillips stainless steel |
2 |
|
|
052 |
999-0062
|
Nut 10-24 hex |
2 |
|
|
053 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
16 |
|
|
054 |
170-6014
|
Terminal clip |
1 |
|
|
058 |
170-6157
|
Pump Adapter Plate (OBSOLETE) |
1 |
|
|
N/S |
170-6158
|
Ring Terminal |
4 |
|
|
N/S |
170-6160
|
Fuse Holder (OBSOLETE) |
1 |
|
|
N/S |
N/A
|
Not available |
1 |
|
|
N/S |
170-6201
|
Nut wire (orange) |
4 |
|
|
N/S |
999-1027
|
Screw 10-24 x 1 1/4 round head phillips stainless steel |
4 |
|
|
N/S |
170-6013
|
1/4 terminal |
2 |
|
|
N/S |
170-8007
|
Nylon wire tie |
1 |
|
|
N/S |
999-0004
|
Nut 10-24 k-lock zinc plated |
4 |
|
|
N/S |
170-6159
|
Fuse (OBSOLETE) |
1 |
|
|
