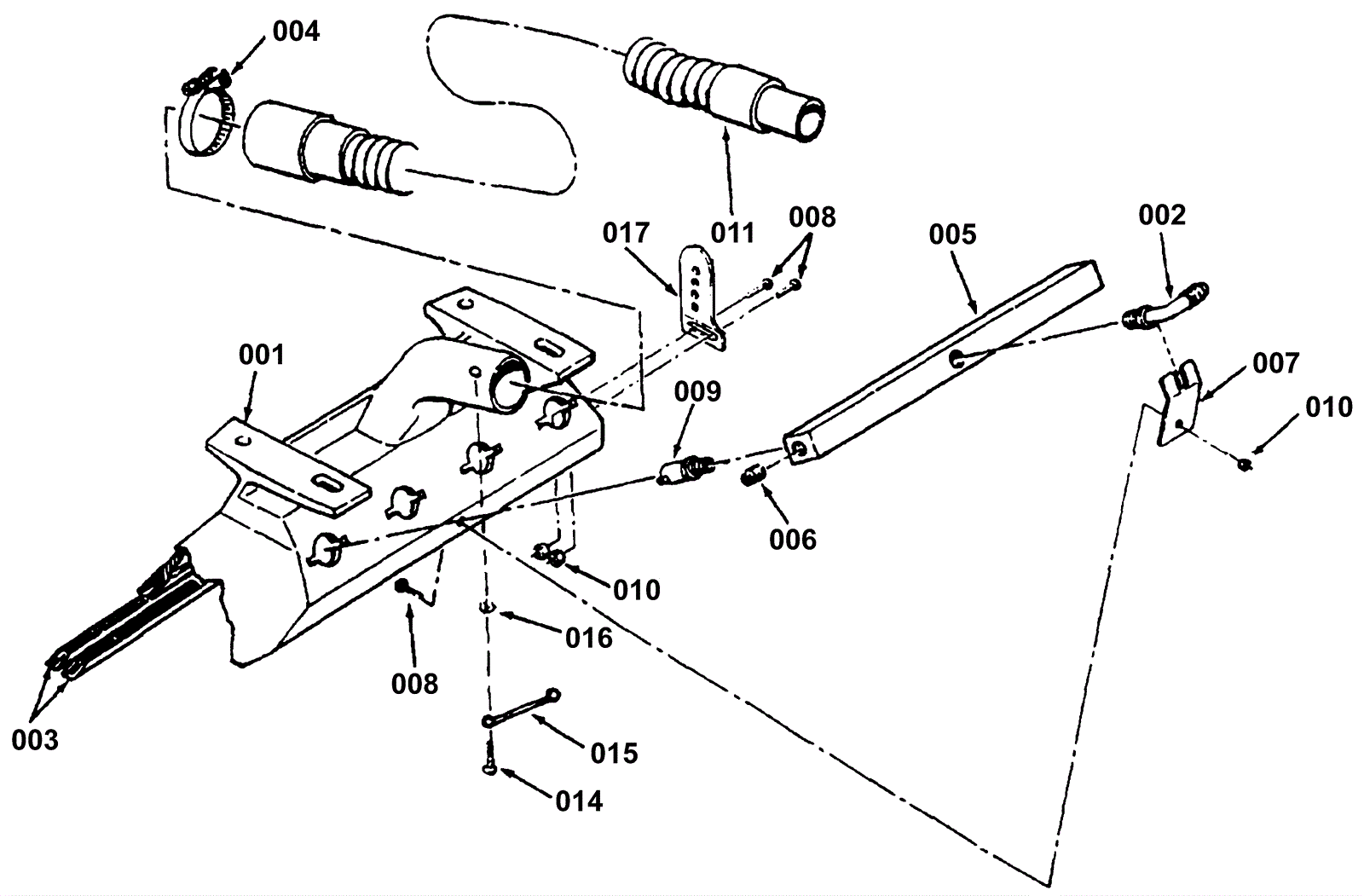

IMAGE 16I Vacuum Shoe Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-6092 Vacuum shoe weldment (OBSOLETE) $428.87 1 usually ships 1-5 days
002 170-6093 1/4 elbow (OBSOLETE) $17.90 1 usually ships 17-28 days
003 170-6094 Vacuum shoe stainless steel (OBSOLETE) $39.16 2 usually ships 1-5 days
004 997-2007 Hose clamp $2.07 1 ships same day
005 170-6095 Spray manifold $233.09 1 usually ships 17-28 days
006 170-6096 Plug $10.68 2 usually ships 1-5 days
007 170-6097 Manifold retainer bracket $96.80 1 usually ships 1-5 days
008 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 3 ships same day
009 170-6098 Nozzle $18.41 4 usually ships 17-28 days
010 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 3 ships same day
011 170-6099 Recovery hose (OBSOLETE) $113.85 1 usually ships 1-5 days
014 999-0068 Screw 10-32 x 1/4 round head slotted zinc plated $0.99 1 ships same day
015 170-6100 Ground wire (OBSOLETE) $7.01 1 usually ships 1-5 days
016 999-0311 Washer #10 external star lock zinc plated $0.99 1 ships same day
017 170-6101 Adjustable brush bracket (OBSOLETE) $62.37 1 usually ships 1-5 days
