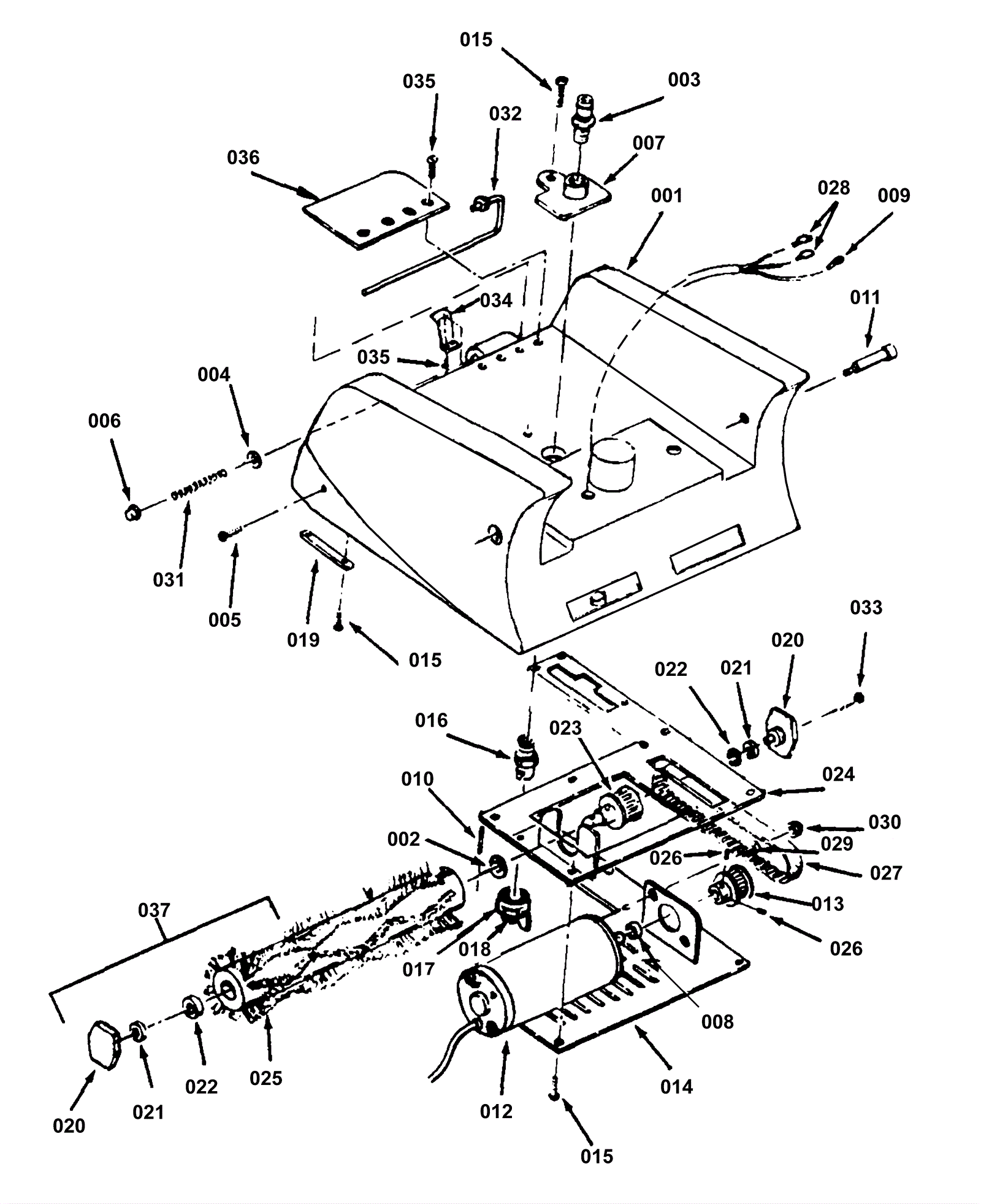

IMAGE 16I Brush Housing Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-6102 Brush housing (OBSOLETE) $323.95 1 usually ships 1-5 days
002 170-0701 Washer wave $11.69 1 usually ships 17-28 days
003 170-6103 Male quick disconnect coupling $43.75 1 usually ships 1-5 days
004 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
005 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 1 ships same day
006 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
007 170-6104 Nozzle plate weldment (OBSOLETE) $35.64 1 usually ships 1-5 days
008 170-6105 Motor spacer $10.52 1 usually ships 1-5 days
009 170-6106 10 ring terminal (OBSOLETE) $8.73 1 usually ships 1-5 days
010 170-0702 Roll pin 3/16 x 11/2 $10.52 1 usually ships 1-5 days
011 999-0622 Screw 5/16-18 x 1 1/2 socket head shoulder $3.12 2 ships same day
012 N/A Not available Call for price 1 120V brush drive motor usually ships 3-26 days
013 170-6108 Timing pulley (OBSOLETE) $67.11 1 usually ships 17-28 days
014 170-6109 Brush plate weldment (OBSOLETE) $132.55 1 usually ships 1-5 days
015 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel $0.99 12 ships same day
016 170-6110 Spray nozzle housing (OBSOLETE) $26.26 1 usually ships 17-28 days
017a 170-6111 Cap with seal assembly $9.26 1 usually ships 17-28 days
017b 170-6112 Spray gasket $29.55 1 usually ships 17-28 days
018 170-6113 Tee jet nozzle $60.06 1 usually ships 17-28 days
019 170-6122 Brush retainer bracket $9.13 1 usually ships 1-5 days
020 170-0698 Brush pivot (OBSOLETE) $61.41 2 usually ships 17-28 days
021 170-0700 Seal (OBSOLETE) $22.48 2 usually ships 17-28 days
022 170-0362 Radial ball bearing $23.08 2 usually ships 12-17 days
023 N/A Not available Call for price 1 (Brush pulley) usually ships 3-26 days
024 170-6114 Gasket $24.96 1 usually ships 1-5 days
025a 170-6115 Restoration brush (OBSOLETE) $137.42 1 usually ships 17-28 days
025b 170-6116 Maintenance brush $95.66 1 usually ships 17-28 days
026 999-0149 Screw 8-32 x 3/16 cup point socket set alloy plain finish $0.99 2 ships same day
027 170-0696 Brush drive belt $32.69 1 usually ships 17-28 days
028 170-6013 1/4 terminal $4.00 2 usually ships 1-5 days
029 999-0311 Washer #10 external star lock zinc plated $0.99 2 ships same day
030 999-0460 Nut 10-32 hex $0.99 2 ships same day
031 170-6117 Rod return spring (OBSOLETE) $7.01 1 usually ships 1-5 days
032 170-6118 Brush adjustment rod (OBSOLETE) $20.44 1 usually ships 1-5 days
033 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 1 ships same day
034 170-6119 Brush stop bracket (OBSOLETE) $11.00 1 usually ships 1-5 days
035 999-0569 Screw 10 x 1/2 pan head phillips sheet metal $0.99 6 ships same day
036 170-6120 Deflector shield $11.75 1 usually ships 1-5 days
037 170-0699 Restoration brush assembly (OBSOLETE) $418.72 1 (includes 020, 021, 022, 025) usually ships 17-28 days
N/S 170-0080 Wire tie $12.31 2 usually ships 17-28 days
