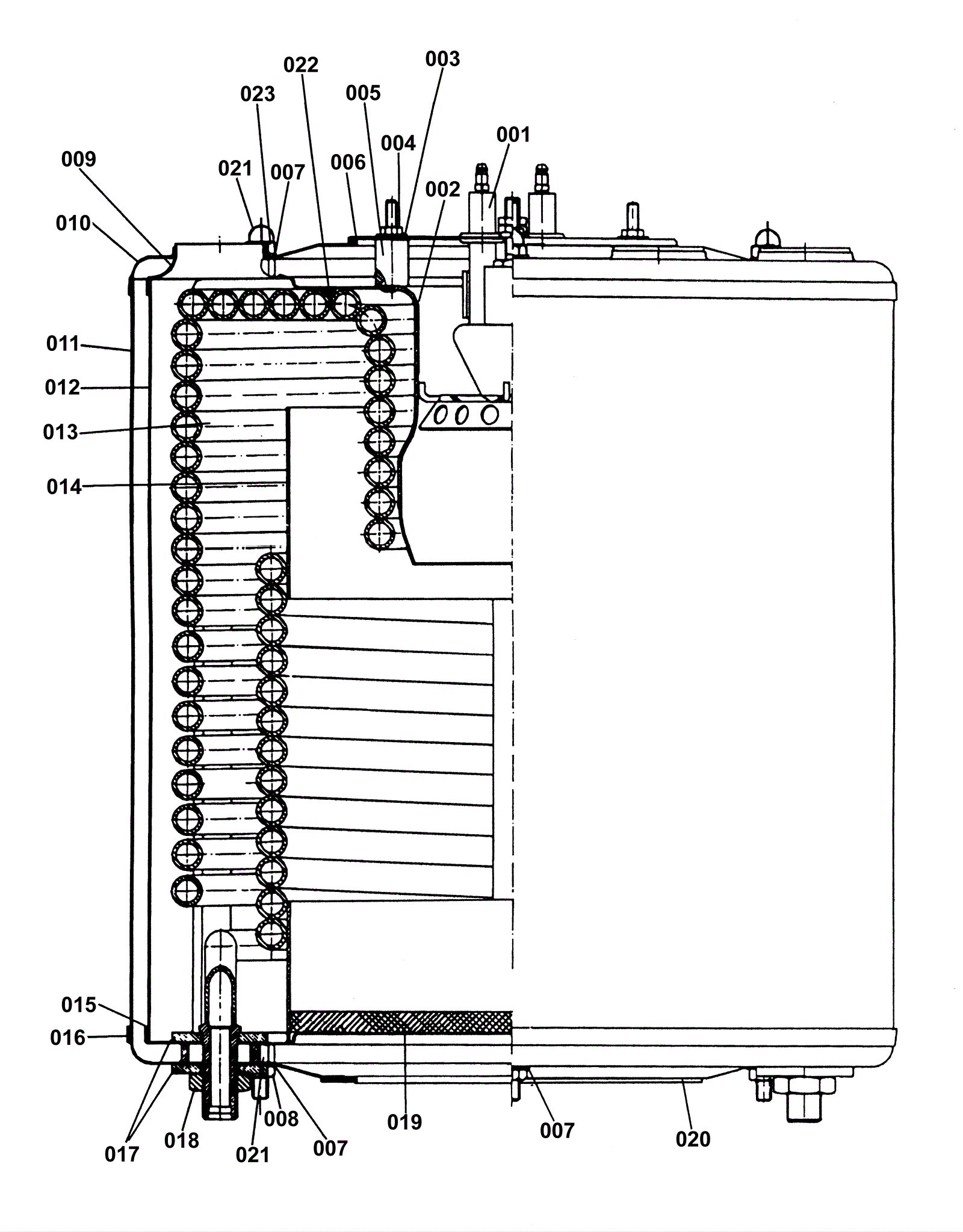

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-1117
|
Complete air distributor (OBSOLETE) |
1 |
|
|
002 |
170-1139
|
Burner tube (OBSOLETE) |
1 |
|
|
003 |
999-1261
|
Washer M6 flat stainless steel |
3 |
|
|
004 |
170-1142
|
Nut M6 (OBSOLETE) |
3 |
|
|
005 |
170-1143
|
Spacer |
3 |
|
|
006 |
170-1144
|
O-ring |
1 |
|
|
007 |
170-0955
|
Washer 8mm (OBSOLETE) |
7 |
|
|
008 |
999-1424
|
Nut M8-1.25 hex stainless steel |
3 |
|
|
009 |
170-1146
|
Boiler top inside |
1 |
|
|
010 |
170-1149
|
Boiler top inside |
1 |
|
|
011 |
170-1153
|
Outer jacket (OBSOLETE) |
1 |
|
|
012 |
170-1157
|
Inner jacket |
1 |
|
|
013a |
170-1160
|
Coil |
1 |
|
|
013b |
170-1161
|
Coil (OBSOLETE) |
1 |
|
|
013c |
170-1162
|
Coil (OBSOLETE) |
1 |
|
|
014 |
170-1163
|
Flame tube |
1 |
|
|
015 |
170-1164
|
Inner boiler bottom |
1 |
|
|
016 |
170-1165
|
Outer boiler bottom |
1 |
|
|
017 |
170-1166
|
Washer |
4 |
|
|
018 |
170-0965
|
Nut M18 x 1.5 lock |
2 |
|
|
019 |
170-1167
|
Insulating covering (OBSOLETE) |
1 |
|
|
020 |
170-1168
|
Gasket |
1 |
|
|
021 |
170-1169
|
Nut (OBSOLETE) |
6 |
|
|
022 |
170-1170
|
Gasket |
1 |
|
|
023 |
170-1171
|
Nut M8 (OBSOLETE) |
3 |
|
|
