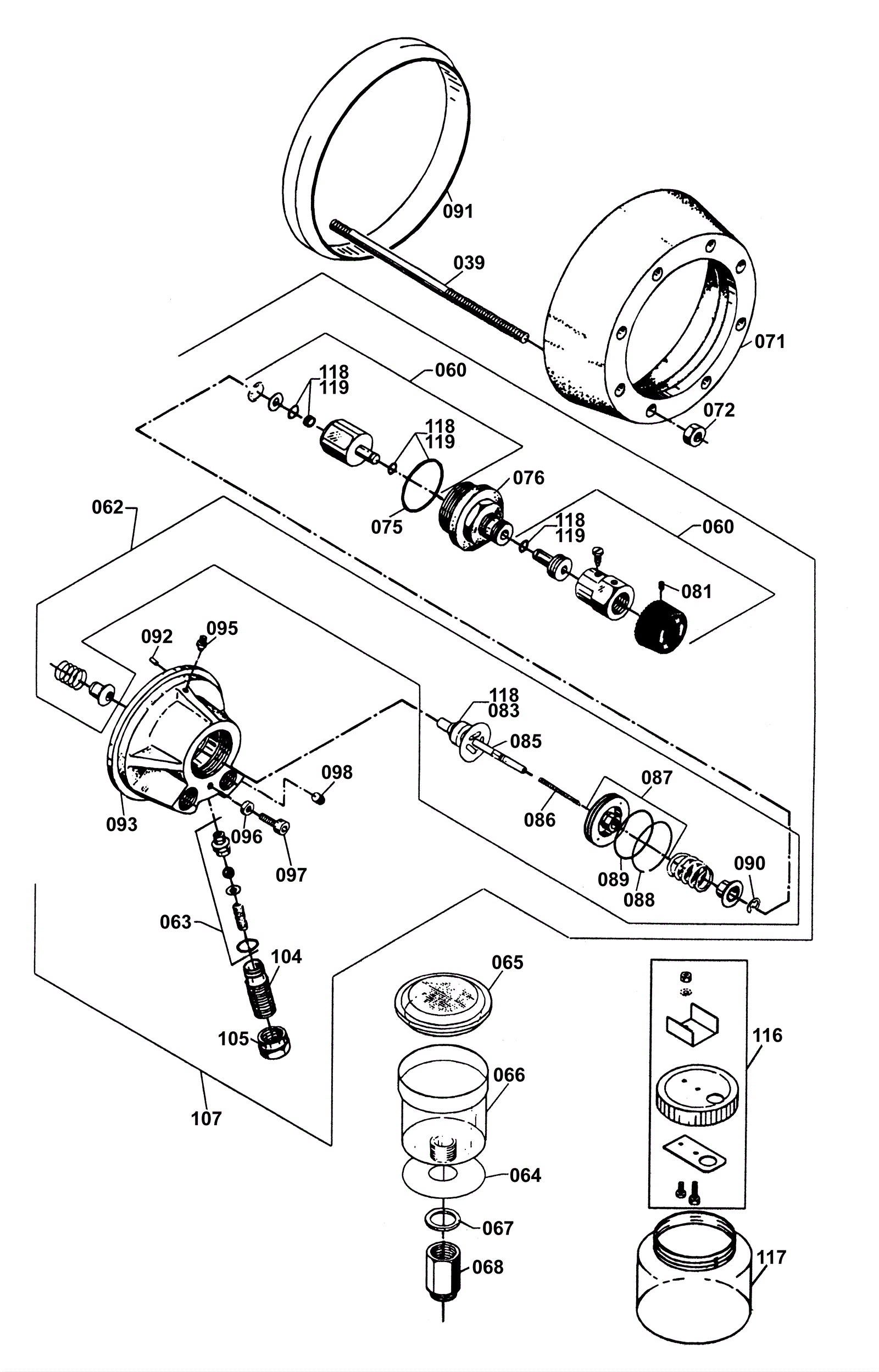

| # | Part | Description |
Req | Notes | Availability |
|---|
060 |
170-1074
|
By-pass valve adjustment mechanism (OBSOLETE) |
|
|
|
062 |
170-1076
|
By pass valve |
|
|
|
063 |
170-1077
|
Safety valve |
|
|
|
064 |
170-1078
|
Washer nylon |
1 |
|
|
065 |
170-1079
|
Cover (OBSOLETE) |
1 |
|
|
066 |
170-1080
|
Oil container (OBSOLETE) |
1 |
|
|
067 |
170-1081
|
Copper washer |
1 |
|
|
068 |
170-1082
|
Socket |
1 |
|
|
071 |
170-1083
|
Retaining ring |
1 |
|
|
072 |
999-6697
|
Nut M10-1.5 hex stainless steel |
8 |
|
|
075 |
170-1084
|
O-ring |
1 |
|
|
076 |
170-1085
|
Bushing |
1 |
|
|
081 |
170-1086
|
Crater-point screw |
1 |
|
|
083 |
170-1087
|
O-ring |
1 |
|
|
085 |
170-1088
|
Complete valve cone |
|
|
|
086 |
170-1089
|
Spring |
1 |
|
|
087 |
170-1091
|
Piston complete |
1 |
|
|
088 |
170-1092
|
Piston ring (OBSOLETE) |
1 |
|
|
089 |
170-1093
|
O-ring |
1 |
|
|
090 |
170-1094
|
Seger clip |
1 |
|
|
091 |
170-1095
|
Ring (OBSOLETE) |
1 |
|
|
092 |
170-1040
|
Guide pin |
1 |
|
|
093 |
170-1096
|
Valve cover |
1 |
|
|
095 |
170-1097
|
Screwed connection |
1 |
|
|
096 |
170-1098
|
Washer lock |
1 |
|
|
097 |
999-1268
|
Screw M6-1 x 12mm socket head stainless steel |
1 |
|
|
098 |
170-1100
|
Pipe plug |
2 |
|
|
104 |
170-1101
|
Adjusting screw (OBSOLETE) |
1 |
|
|
105 |
170-1102
|
Lock nut |
1 |
|
|
107 |
170-1104
|
Complete by pass valve (OBSOLETE) |
|
|
|
116 |
170-1105
|
Female sludge container cover |
1 |
|
|
117 |
170-1106
|
Sludge container (OBSOLETE) |
1 |
|
|
118 |
170-1050
|
Gasket set 03 (OBSOLETE) |
|
|
|
119 |
170-1108
|
By-pass valve gasket |
|
|
|
N/S |
170-1107
|
Pump oil (OBSOLETE) |
|
|
|
