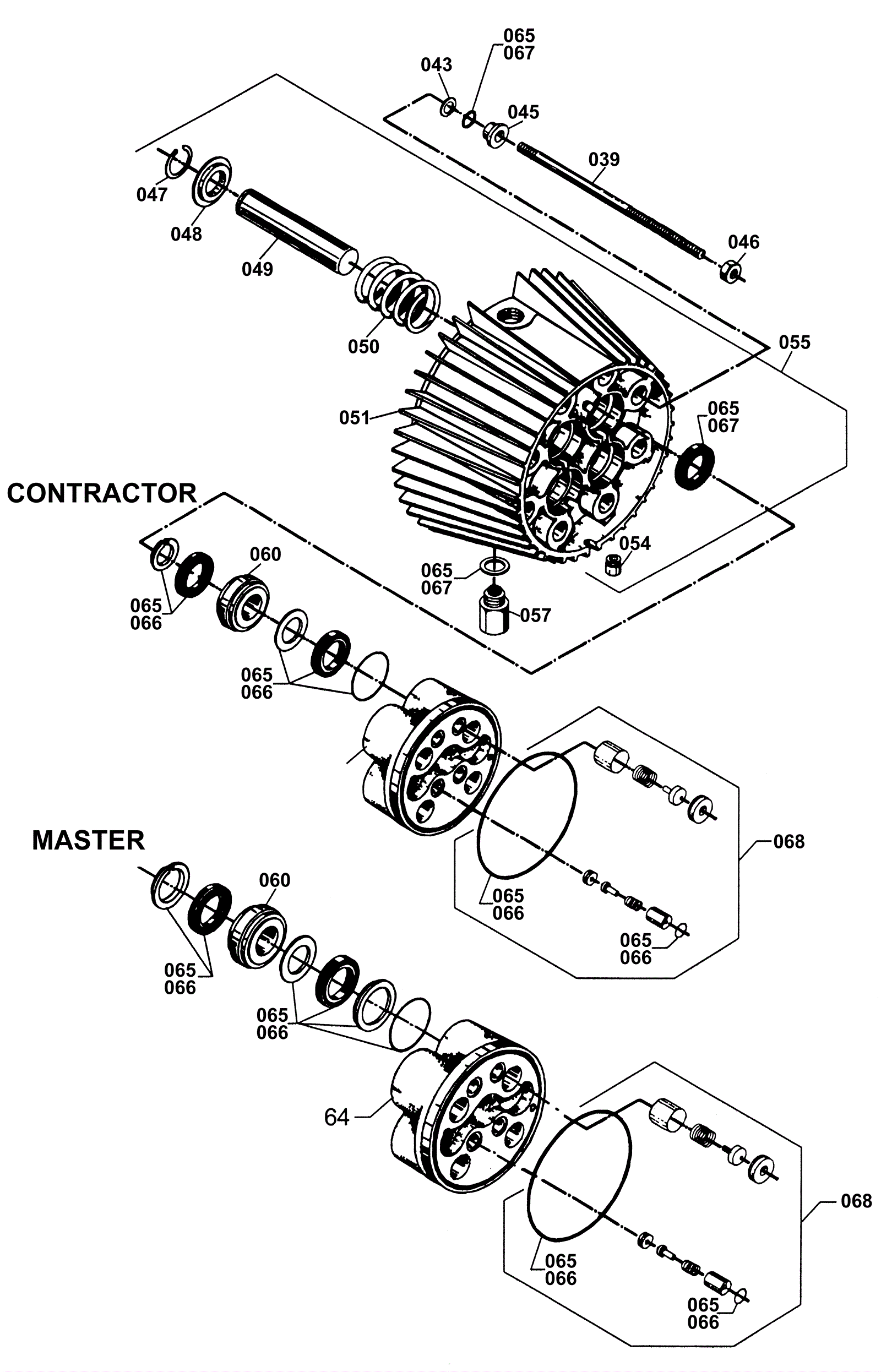

| # | Part | Description |
Req | Notes | Availability |
|---|
043 |
170-1056
|
Washer |
8 |
|
|
045 |
170-1057
|
Thrust collar |
8 |
|
|
046 |
999-6697
|
Nut M10-1.5 hex stainless steel |
8 |
|
|
047 |
170-1059
|
Lock ring |
4 |
|
|
048 |
170-1060
|
Ring for return spring |
4 |
|
|
049 |
170-1062
|
Ceramic piston |
4 |
|
|
050 |
N/A
|
Not available |
4 |
Return spring |
|
051 |
170-1065
|
Cylinder block |
1 |
|
|
054 |
170-1066
|
Drip nozzel |
1 |
|
|
055 |
170-1068
|
Complete cylinder block (OBSOLETE) |
|
|
|
057 |
170-1069
|
Drain plug |
1 |
|
|
060 |
170-1071
|
Thrust collar |
4 |
|
|
064 |
170-1073
|
Cylinder head |
1 |
|
|
065 |
170-1051
|
Gaskets C3 |
|
|
|
066 |
170-1053
|
Gaskets (reduced) |
|
|
|
067 |
170-1054
|
Oil seal |
|
|
|
068 |
170-1055
|
Valve system |
|
|
|
