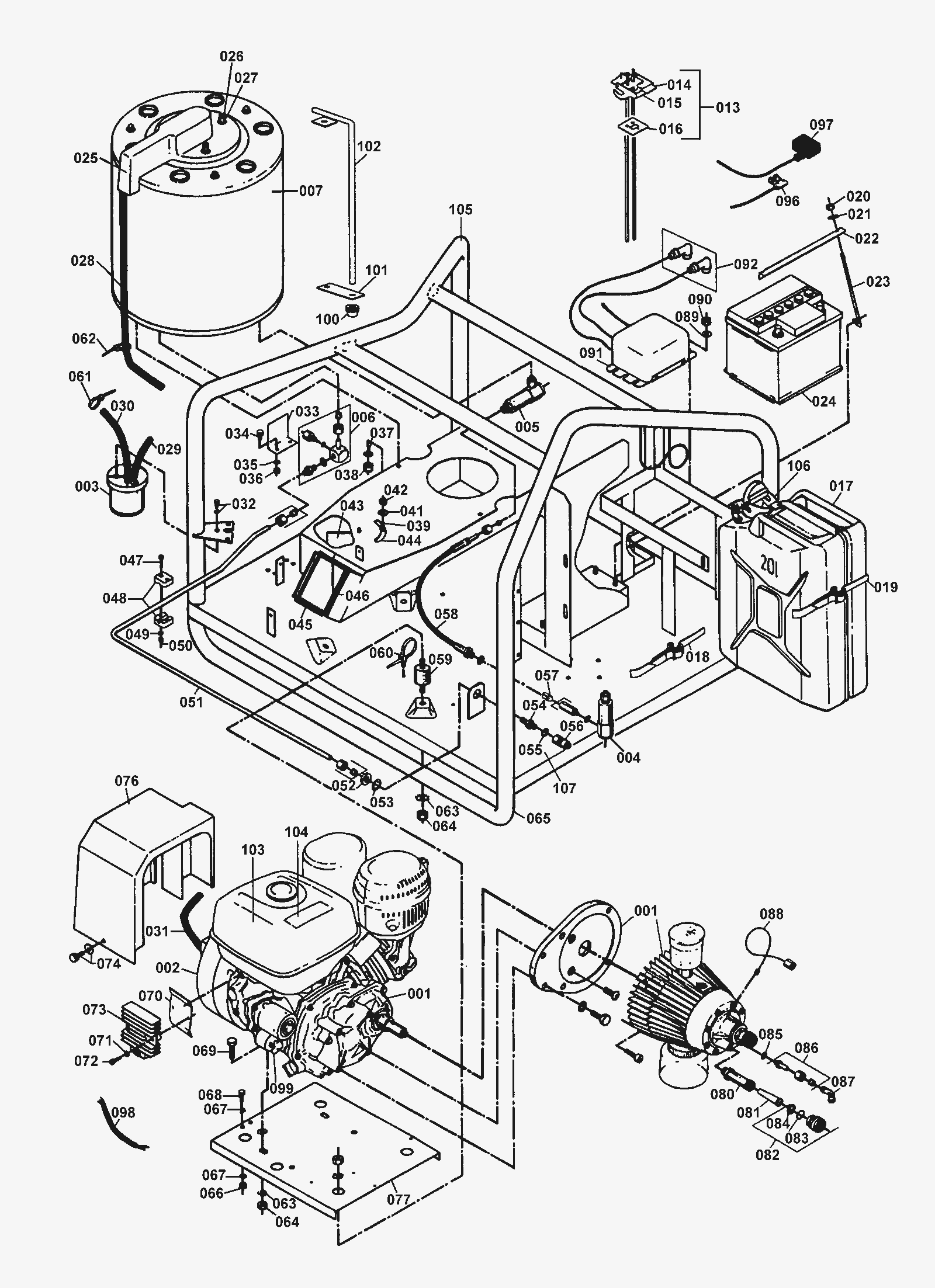

Machine Mounted

#PartDescription ReqNotesAvailability
013 170-0932 Complete cover for fuel container
014 170-0933 Fuel tank cover (OBSOLETE) 1
015 170-0934 Clamp (OBSOLETE) 1
016 170-0935 Gasket (OBSOLETE) 1
017 170-0936 Fuel container (OBSOLETE) 1
018 170-0937 Strap container 18 x 2 1250 1
019 170-0938 Strap container 18 x 2 x 510 N/A 1
020 170-0939 Nut M5 hex lock (OBSOLETE) 2
021 999-9100 Washer M5 flat stainless steel 2
022 170-0941 Angle hinge (OBSOLETE) 1
023 170-0942 Crook battery holder (OBSOLETE) 2
024 170-0943 Battery (OBSOLETE) 1
025 170-0944 Boiler top section (OBSOLETE) 1
026 170-0945 Nut M6 (OBSOLETE) 3
027 999-1261 Washer M6 flat stainless steel 6
028 170-0947 Oil pipe (OBSOLETE) 1
029 170-0948 Oil hose 480mm (OBSOLETE) 1
030 170-0949 Oil hose 1930mm (OBSOLETE) 1
031 170-0950 Oil hose 1560mm (OBSOLETE) 1
032 170-0951 Screw 60 x 12 (OBSOLETE) 3
033 170-0952 Protection plate (OBSOLETE) 1
034 170-0953 Screw 6mm x 16 set (OBSOLETE) 2
035 999-1261 Washer M6 flat stainless steel 2
036 170-0954 Nut M6 hex lock (OBSOLETE) 2
037 170-0955 Washer 8mm (OBSOLETE) 3
038 999-0471 Nut M8-1.25 nylon insert lock zinc plated 3
039 170-0957 Axle (OBSOLETE) 1
041 999-1261 Washer M6 flat stainless steel 1
042 170-0954 Nut M6 hex lock (OBSOLETE) 1
043 170-0958 Plate (OBSOLETE) 1
044 170-0959 Plate throttle (OBSOLETE) 1
045 170-0960 Short tightening tillet (OBSOLETE) 2
046 170-0961 Long tightening tillet (OBSOLETE) 2
047 170-0962 Screw 6mm x 30 (OBSOLETE) 2
048 170-0963 Bracket for pipe 12mm (OBSOLETE) 1
049 999-1261 Washer M6 flat stainless steel 2
050 170-0954 Nut M6 hex lock (OBSOLETE) 2
051 170-0964 Outlet pipe with 2 x cutting ring & union nut (OBSOLETE) 1
052 170-0965 Nut M18 x 1.5 lock 1
053 170-0966 Washer 18mm 1
054 170-0967 Screwed connection 1
055 170-0995 Washer 3/8 sealing 1
056 170-0970 Quick-connector stainless steel outlet 1
056 170-0969 Quick-connector outlet 1
057 170-0971 Piston for nonreturn valve (OBSOLETE) 1
058 170-0972 Complete internal high pressure hose (OBSOLETE) 1
059 170-0973 Vibration damper 4
060 170-0974 Cable clip 215mm (OBSOLETE) 12
061 170-0975 Cable clip 155mm (OBSOLETE) 7
062 209-2176 CABLE STRAP 4.5X1X350 12
063 999-1262 Washer M10 flat 20
064 170-0978 Nut M10 lock (OBSOLETE) 12
065 170-0979 Chassis (OBSOLETE) 1
066 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
068 170-0981 Screw 8mm x 20 set fan (OBSOLETE) 2
069 170-0982 Screw 10mm x 45 set (OBSOLETE) 4
070 170-0983 Fitting for charging relay (OBSOLETE) 1
072 170-0985 Screw 6mm x 20 set (OBSOLETE) 2
073 170-0986 Charging relay (OBSOLETE) 1
074 170-0987 Screw 4mm X 12 tapetite 3
076 170-0989 Cabinet (OBSOLETE) 1
077 170-0990 Pump bracket (OBSOLETE) 1
080 170-0988 Screen housing 1
081 170-0991 Inlet filter 1
082 170-0992 Complete quick coupling
083 170-0993 O-ring 1
084 170-0994 Gasket 1
085 170-0995 Washer 3/8 sealing 1
086 170-0996 Screwed connection 1
087 170-0997 Elbow (OBSOLETE) 1
088 170-0998 Pressure gauge pipe 1
089 999-9100 Washer M5 flat stainless steel 4
091 170-1001 Ignition transformer (OBSOLETE) 1
092 170-1002 Replacement kit cover for sparkling-plug (OBSOLETE) 1
096 170-1003 Cable negative for battery (OBSOLETE) 1
097 170-1004 Complete positive cable for battery (OBSOLETE) 1
098 170-1005 Wire bundle (OBSOLETE) 1
099 170-1006 Cap for cable (OBSOLETE) 1
100 170-1007 Rubber seal (OBSOLETE) 1
101 170-1008 Fitting tube (OBSOLETE) 1
102 170-1009 Tube sensor flame controll (OBSOLETE) 1
103 170-1019 Warning label (OBSOLETE) 1
104 170-1020 Warning label (OBSOLETE) 1
105 170-1021 Warning label (OBSOLETE) 1
106 170-1022 Label (OBSOLETE) 1
107 170-1023 Warning label (OBSOLETE) 1
N/S 999-1261 Washer M6 flat stainless steel 1
N/S 170-1017 Owners manual (OBSOLETE) 1
N/S 170-1014 Fitting carburettor (OBSOLETE) 1
N/S 170-1013 Fitting motor (OBSOLETE) 1
N/S 170-1015 Fitting carburettor (OBSOLETE) 1
N/S 170-1016 Instruction manual (OBSOLETE) 1
N/S 170-1018 Instruction manual (OBSOLETE) 1
N/S 170-1010 Carburettor bushing (OBSOLETE) 1
N/S 170-1011 Screw 4mm x 8 set carburator (OBSOLETE) 2
