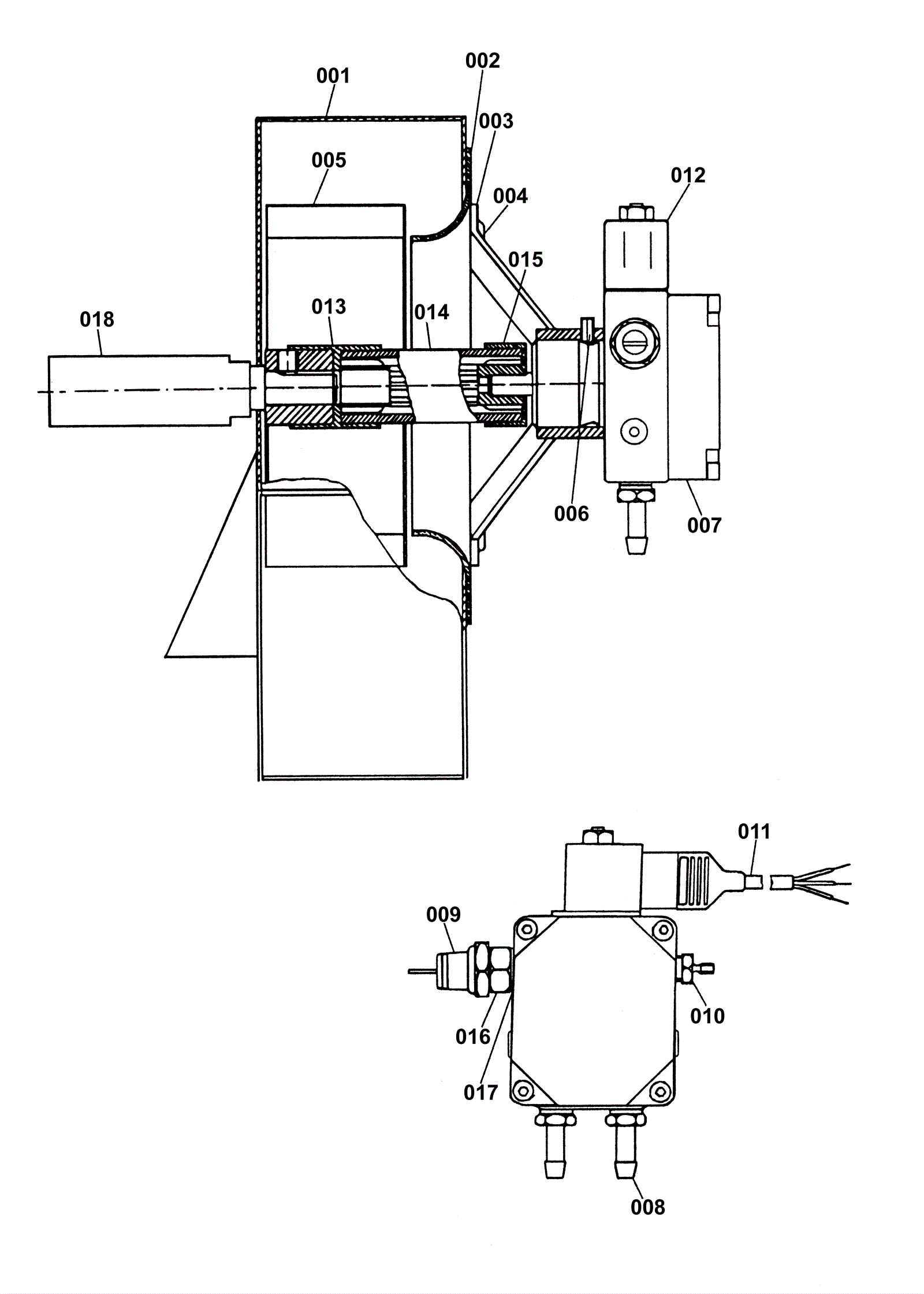

| # | Part | Description | Price | Req | Notes | Availability |
|---|
000 |
170-0928
|
Complete fan (OBSOLETE) |
$466.24
|
|
|
usually ships 1-5 days |
001 |
170-1109
|
Fan housing (OBSOLETE) |
$178.95
|
1 |
|
usually ships 1-5 days |
002 |
170-1110
|
Suction funnel (OBSOLETE) |
$25.81
|
1 |
|
usually ships 1-5 days |
003 |
170-1111
|
Bracket for fuel pump |
$132.26
|
1 |
|
usually ships 1-5 days |
004 |
170-0987
|
Screw 4mm X 12 tapetite |
$9.35
|
4 |
|
usually ships 1-5 days |
005 |
170-1112
|
Impeller |
$655.02
|
1 |
|
usually ships 16-41 days |
006 |
170-1113
|
Screw (OBSOLETE) |
$0.90
|
1 |
|
usually ships 1-5 days |
007 |
170-1114
|
Fuel pump with coil |
$416.46
|
1 |
|
usually ships 1-5 days |
008 |
170-1115
|
Socket for hose (OBSOLETE) |
$13.58
|
2 |
|
usually ships 1-5 days |
009 |
170-1116
|
Pressure switch (OBSOLETE) |
$26.78
|
1 |
|
usually ships 1-5 days |
010 |
170-1097
|
Screwed connection |
$12.78
|
1 |
|
usually ships 1-5 days |
011 |
170-1118
|
Lead (OBSOLETE) |
$40.93
|
1 |
|
usually ships 1-5 days |
012a |
170-1119
|
Coil with nut and washer |
$87.66
|
1 |
|
usually ships 16-41 days |
012b |
170-1120
|
Coil (OBSOLETE) |
$110.33
|
1 |
|
usually ships 1-5 days |
012c |
170-1121
|
Nut (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
013 |
170-1122
|
Coupling |
$13.36
|
1 |
|
usually ships 1-5 days |
014 |
170-1123
|
Hose coupling (OBSOLETE) |
$6.80
|
1 |
|
usually ships 1-5 days |
015 |
170-1124
|
Coupling |
$13.36
|
1 |
|
usually ships 1-5 days |
016 |
170-1125
|
Oil pump connecting piece (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
017 |
170-1126
|
O-ring (OBSOLETE) |
$8.46
|
1 |
|
usually ships 1-5 days |
018 |
170-1127
|
Axle fan (OBSOLETE) |
$50.04
|
1 |
|
usually ships 1-5 days |
