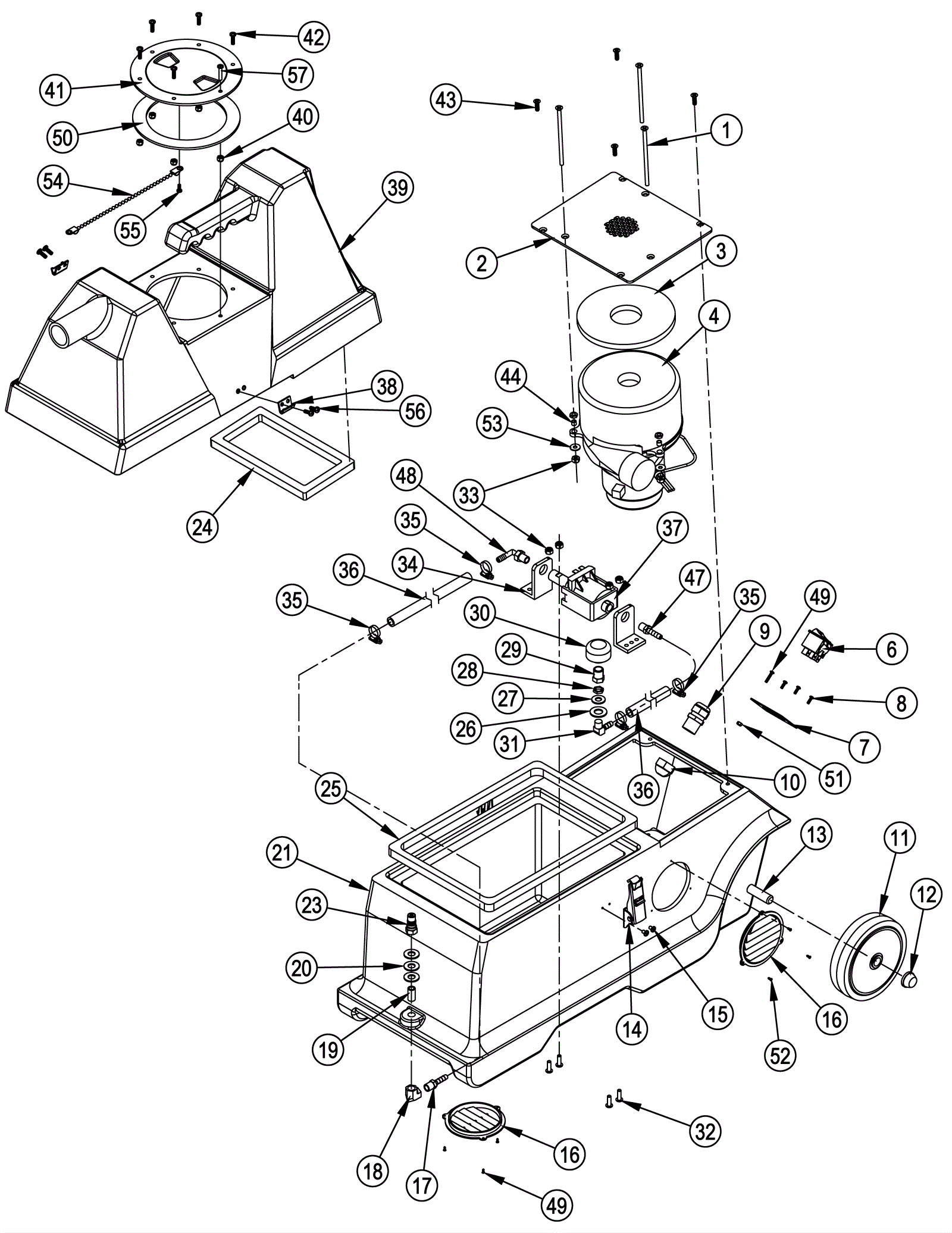

BEXTSPOT Entire Assembly (after 11/2013)

#PartDescriptionPriceReqNotesAvailability
1 170-5404 Screw 10-32 x 4 flat head $14.47 3 usually ships 1-5 days
2 170-5405 Mounting plate $90.20 1 usually ships 1-5 days
3 209-0005 Vacuum motor gasket $13.40 1 usually ships 16-41 days
4 209-0004 120V 2 stage vacuum motor with gasket and connectors $492.38 1 usually ships 16-41 days
6 172-3539 Switch with cover (OBSOLETE) $51.28 1 usually ships 16-41 days
7 170-5408 Switch plate $34.66 1 usually ships 1-5 days
8 272-6814 Screw M4 x .375mm $11.99 3 usually ships 16-41 days
9 209-0677 Cord retainer $10.56 1 usually ships 16-41 days
10 209-2098 LOCK NUT NYLON FOR CORD RETAI $10.56 1 usually ships 16-41 days
11 375-7611 Wheel $67.20 2 usually ships 16-41 days
12 170-5410 Axle cap (OBSOLETE) $10.56 2 usually ships 16-41 days
13 370-6615 AXEL ROD ZINC PLATED 1/2 RO $8.03 1 usually ships 16-41 days
14 172-0094 Latch $43.41 2 ships same day
15 999-0317 Screw 8-32 x 1/4 pan head slotted zinc plated $0.99 4 ships same day
16 372-3715 Shutter $11.69 2 usually ships 16-41 days
17 170-9298 1/8 inch brass hose barb (OBSOLETE) $10.01 1 usually ships 16-41 days
18 170-9299 1/8 inch 90 degree brass elbow $9.27 1 usually ships 16-41 days
19 172-6102 Nipple $11.69 1 usually ships 1-5 days
20 170-9300 7/8 inch brass washer $12.83 3 usually ships 16-41 days
21 170-5413 Solution tank $562.65 1 usually ships 1-5 days
23 170-9301 Quick disconnect plug $10.56 1 usually ships 16-41 days
24 270-0728 Vacuum seal gasket (OBSOLETE) $24.96 1 usually ships 16-41 days
25 209-2182 GASKET TANK 11.93 X 8.14 X 5 (OBSOLETE) $13.22 1 usually ships 16-41 days
26 999-1416 Washer 7/16 flat stainless steel $0.99 1 ships same day
27 170-5415 Washer $10.52 1 usually ships 1-5 days
28 209-0044 Nut 1/8 brass lock (OBSOLETE) $10.52 1 usually ships 16-41 days
29 170-5417 Bushing $11.99 1 usually ships 1-5 days
30 170-5418 Filter (OBSOLETE) $9.27 1 usually ships 16-41 days
31 181-1099 Male hose barb $21.00 1 usually ships 16-41 days
32 999-1479 Screw 10-32 x 5/8 button head socket cap stainless steel $0.99 4 ships same day
33 999-1269 Nut 10-32 nylon insert jam stainless steel $0.99 10 usually ships 11-24 days
34 170-5419 Pump bracket $9.27 2 usually ships 1-5 days
35 372-3730 Hose clamp $11.99 4 usually ships 16-41 days
36 170-5420 Braided hose $8.83 2 ft usually ships 1-5 days
37 170-7894 120V 55PSI pump $107.65 1 usually ships 16-41 days
38 209-0140 Latch strike $15.07 2 usually ships 16-41 days
39 209-2228 VACUUM TANK SST SPOTTER-BLUE C (OBSOLETE) $499.95 1 usually ships 16-41 days
40 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 6 ships same day
41 170-9305 Lid and ring $124.26 1 usually ships 16-41 days
42 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 5 ships same day
43 170-5422 Screw 10-32 x 5/8 flat head $11.99 4 usually ships 1-5 days
44 170-9306 3/16 inch teflon tubing $5.79 3 usually ships 16-41 days
47 370-0707 HOSE BARB NYLON 1/8 MPT X 1/4 $7.04 1 usually ships 16-41 days
48 172-9448 90 degree hose barb $9.02 1 ships same day
49 999-6760 Screw 4-40 x 5/8 phillips pan head grade 18-8 SS $1.47 1 usually ships 11-24 days
50 209-2009 GASKET SPOTTER VAC LID 5.97 $10.56 1 (for 983) usually ships 16-41 days
51 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 1 ships same day
52 170-9308 Screw 2 x 1/4 phillips sheet metal stainless steel $10.56 6 usually ships 16-41 days
53 999-0998 Washer #10 flat stainless steel $0.99 3 ships same day
54 172-2474 8 inch chain $10.56 1 ships same day
55 170-9309 Screw #6 x 3/8 truss head phillips stainless steel $6.05 1 usually ships 16-41 days
56 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 4 ships same day
57 999-1356 Screw 8-32 x 7/8 pan head phillips stainlesss steel $0.99 1 usually ships 1-5 days
N/S 170-1490 Carbon brush assembly $14.47 1 (for 44906A) usually ships 1-5 days
N/S 170-5414 Strap $18.82 1 usually ships 1-5 days
N/S 170-5424 18/3 power cord 25 foot $68.75 1 usually ships 1-5 days
