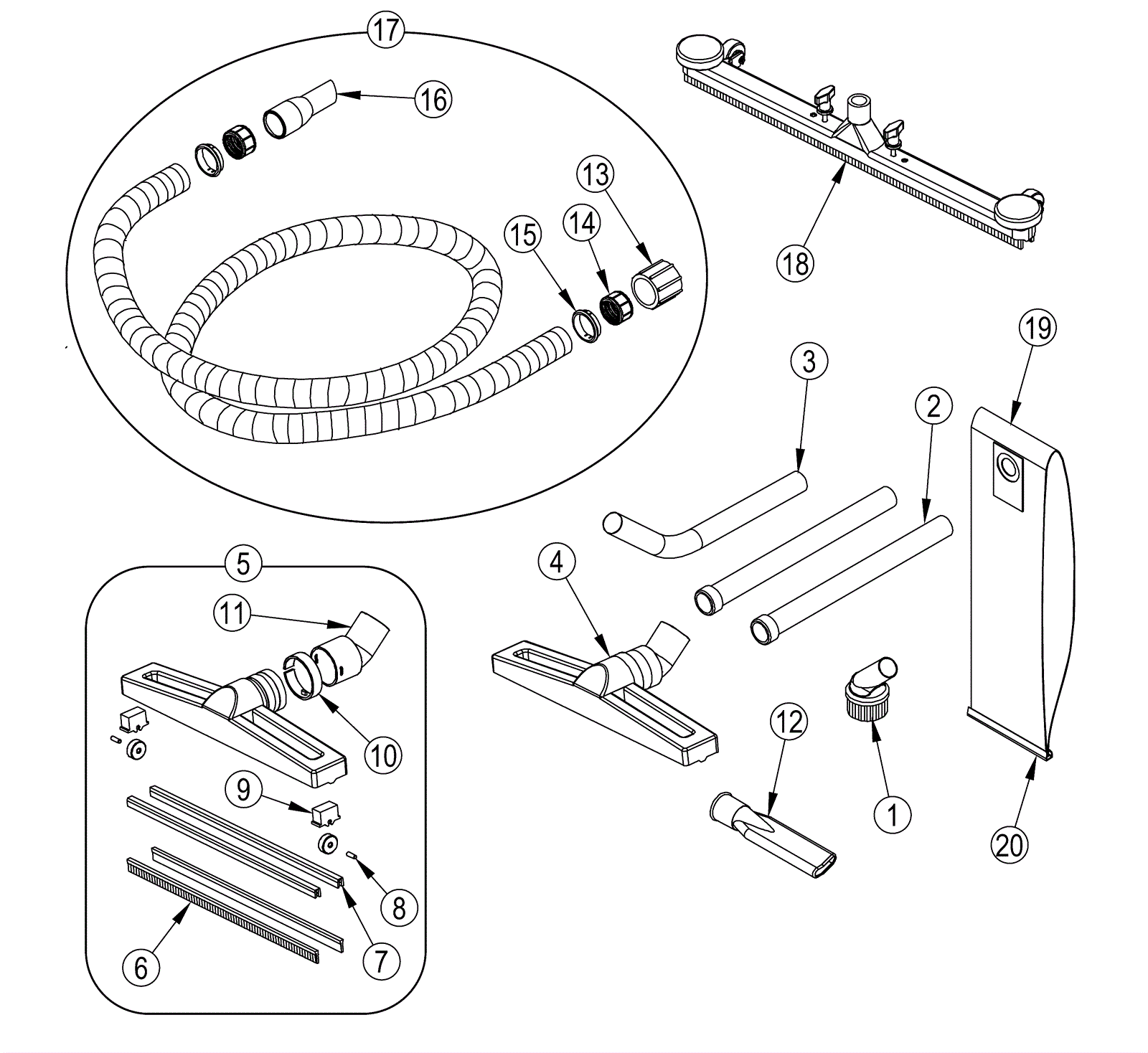

Wand and Hose Assembly

#PartDescription ReqNotesAvailability
1 240-0553 Dusting tool 1
2 240-0319 Tube 2
3 240-0320 Wand 1
4 240-0554 Dry pick-up tool 1
5 240-0555 Wet pick-up tool 1
6 240-0556 16 inch squeegee blade 2
7 240-0557 16 inch blade seat 2
8 240-0558 Wheel pin 2
9 240-0559 Wheel seat 2
10 240-0560 Floor tool adapter clip 1
11 240-0561 Floor tool adapter 1
12 240-0562 Crevice tool (OBSOLETE) 1
13 240-0563 Swivel hose end 1
14 240-0564 Hose cuff insert 2
15 240-0565 Ring clip 2
16 240-0566 Angled hose end 1
17 240-0567 Hose assembly 1
18a 240-0568 24 inch front mount squeegee assembly 1
18b 240-0569 30 inch front mount squeegee assembly 1 (optional)
18c 240-0571 24 inch dry pick-up tool assembly (OBSOLETE) 1 (optional)
19 240-0572 Cloth bag 1 (optional)
20 240-0573 Cloth bag retaining clip 1 (optional)
