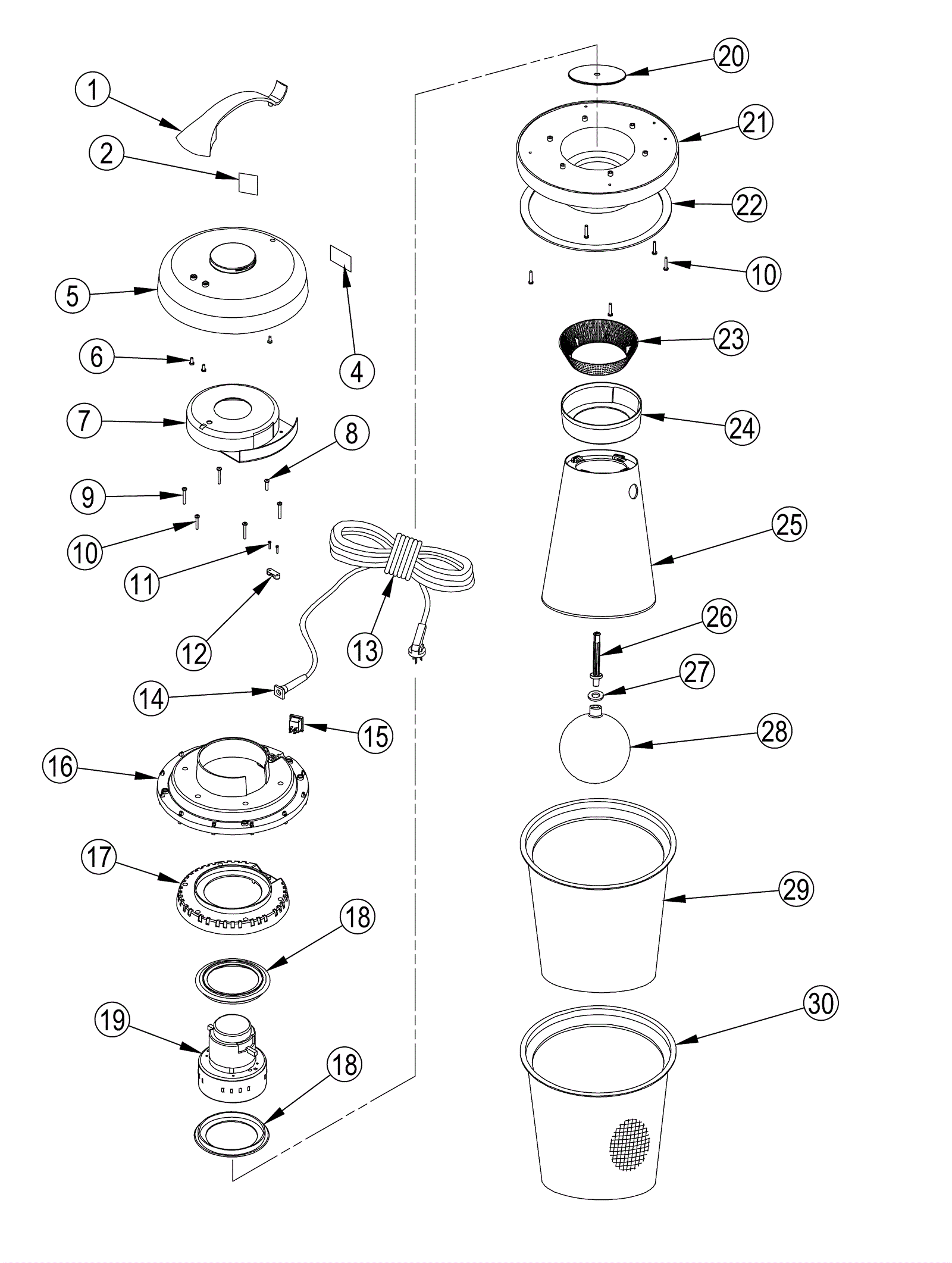

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
240-0574
|
Handle |
1 |
|
|
2 |
240-0110
|
Read manual decal |
1 |
|
|
4 |
N/A
|
Not available |
1 |
(warning decal) |
|
5 |
240-0576
|
Vacuum head cover |
1 |
|
|
6 |
240-0057
|
Screw M5 x 12mm self-tapping (OBSOLETE) |
3 |
|
|
7 |
240-0283
|
Upper motor cover |
1 |
|
|
8 |
999-1555
|
Screw M5-.8 x 20mm pan head phillips zinc plated |
1 |
|
|
9 |
999-1563
|
Screw M5-.8 x 50mm pan head phillips zinc plated |
4 |
|
|
10 |
240-0577
|
Screw M5-.8 x 44mm pan head |
5 |
|
|
11 |
999-1180
|
Screw M3-.5 x 16mm pan head stainless steel |
2 |
|
|
12 |
240-0052
|
Block |
1 |
|
|
13a |
240-0296
|
14/3 power cord 50 foot |
1 |
(OEM) |
|
13b |
991-5005
|
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) (does not include strain relief) |
|
13c |
991-5001
|
14/3 extension cord 50 foot (yellow) |
1 |
(NON-OEM) |
|
14 |
240-0578
|
Grommet |
1 |
|
|
15 |
240-0297
|
Switch |
1 |
|
|
16 |
240-0579
|
Motor mounting cover |
1 |
|
|
17 |
240-0580
|
Motor mounting plate |
1 |
|
|
18 |
240-0582
|
Motor gasket |
2 |
|
|
19a |
240-0298
|
120V vacuum motor |
1 |
(OEM) |
|
19b |
991-1244
|
120V 2 stage vacuum motor peripheral |
1 |
(NON-OEM) |
|
20 |
240-0589
|
Seal plate |
1 |
|
|
21 |
240-0306
|
Motor mounting base |
1 |
|
|
22 |
240-0307
|
Gasket |
1 |
|
|
23 |
240-0552
|
Filter screen |
1 |
|
|
24 |
240-0308
|
Water guard |
1 |
|
|
25 |
240-0299
|
Cage |
1 |
|
|
26 |
240-0590
|
Ball pole |
1 |
|
|
27 |
240-0591
|
O-ring |
1 |
|
|
28 |
240-0300
|
Float ball |
1 |
|
|
29 |
240-9328
|
Vacuum filter |
1 |
|
|
30 |
240-0592
|
Bubble buster |
1 |
|
|
