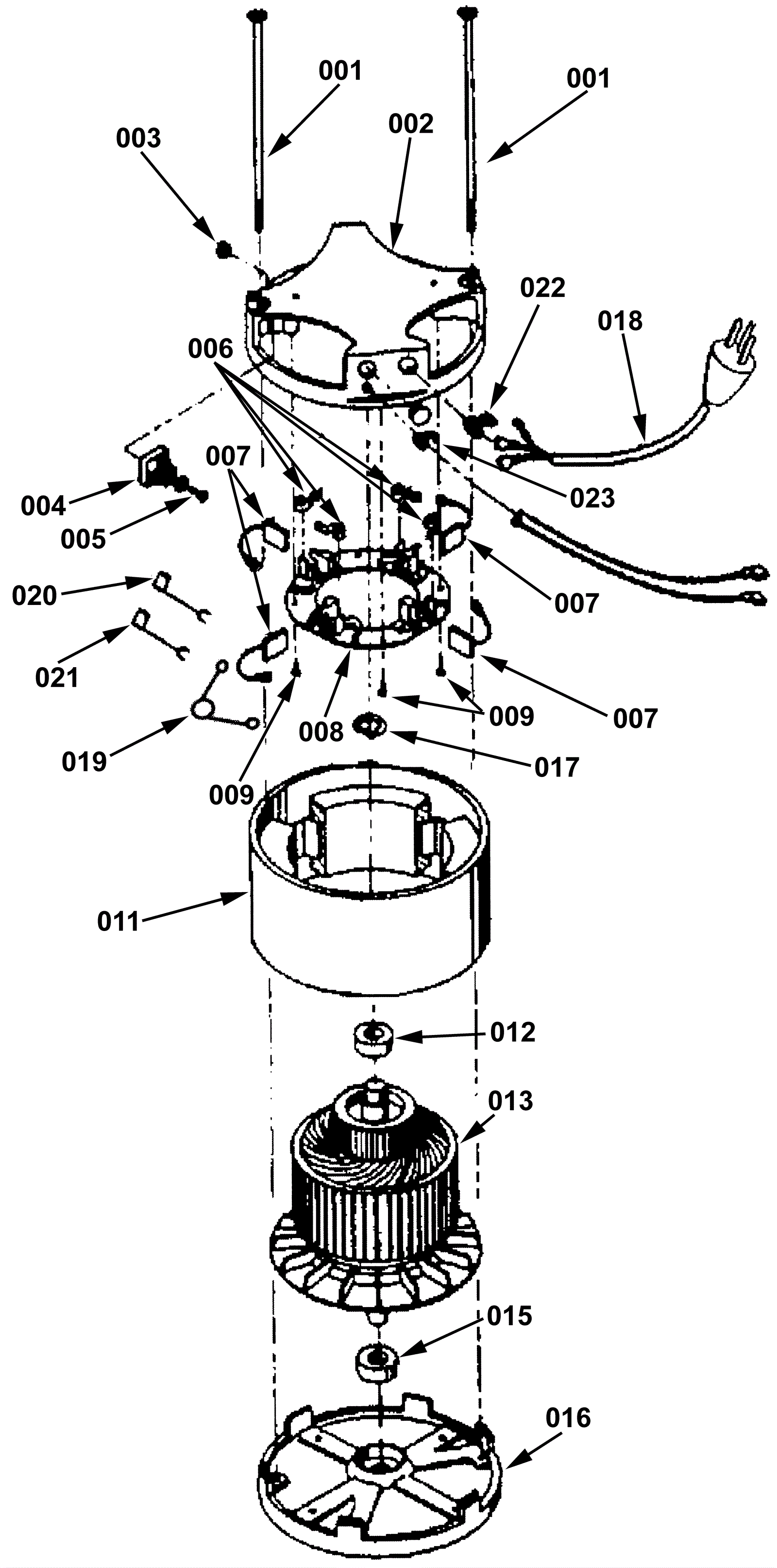

ULTRASPEED 1500 Motor Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-1500 Thru-bolt (OBSOLETE) $4.85 2 usually ships 1-5 days
002 170-6417 Bracket commutator (OBSOLETE) $143.51 1 usually ships 1-5 days
003 170-1501 Nut hex (OBSOLETE) $3.00 1 usually ships 1-5 days
004 163-0063 240V rectifier $10.65 1 ships same day
005 N/A Not available Call for price 1 Screw 8-32 x 1 flat head usually ships 3-26 days
006 372-1685 Springs $37.49 4 usually ships 12-17 days
007 240-0191 Carbon brush (pkg of 4) $67.42 4 ships same day
008 372-1221 Carbon brush assembly kit $51.21 1 ships same day
009 170-1504 Screw $1.21 4 usually ships 1-5 days
011 170-1506 Stator frame (OBSOLETE) $656.02 1 usually ships 1-5 days
012 372-1890 Bearing (rear) $44.58 1 usually ships 17-28 days
013 170-6418 Armature 115 volt - 1500 (OBSOLETE) $1,006.36 1 usually ships 1-5 days
015 170-0321 Front end bearing $21.54 1 usually ships 12-17 days
016 170-6421 Bottom end plate (OBSOLETE) $200.75 1 usually ships 1-5 days
017 170-0379 Wave washer $10.85 1 usually ships 17-28 days
018 170-6422 Lead assembly $50.06 1 usually ships 1-5 days
019 170-1510 Varistor $26.58 1 usually ships 17-28 days
020 170-1509 Lead (yellow) $26.04 1 usually ships 17-28 days
021 170-1508 Lead (red) $12.31 1 usually ships 17-28 days
022 170-3941 Strain relief $10.52 1 usually ships 1-5 days
023 N/A Not available Call for price 1 Strain relief usually ships 3-26 days
N/S 170-6424 Commutator bracket (OBSOLETE) Call for price 1 usually ships 1-5 days
