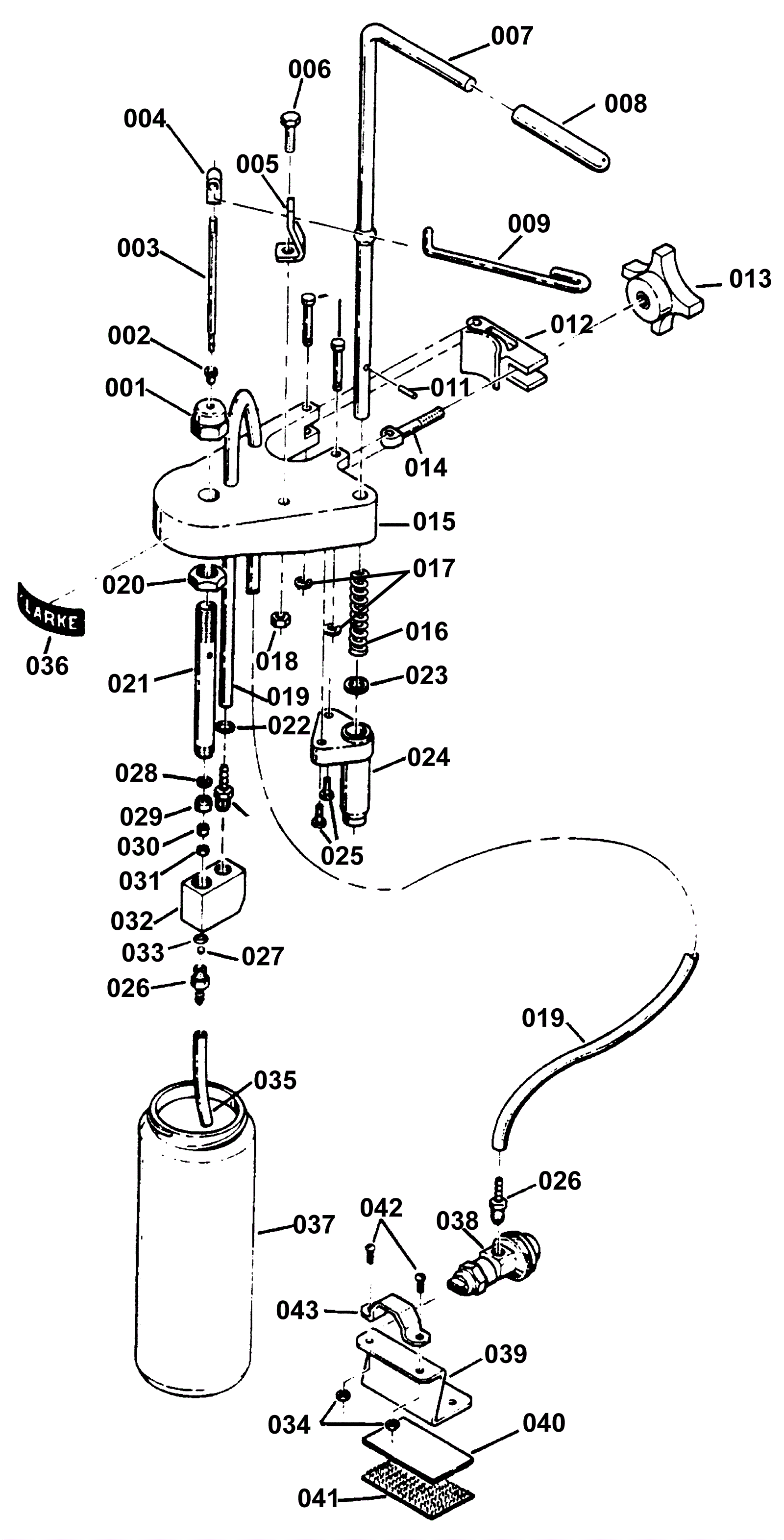

Spray Buff Accessory

#PartDescription ReqNotesAvailability
001 170-5691 Barrel Cap (OBSOLETE) 1
002 170-5962 Retainer ring (OBSOLETE) 1
003 170-5693 Plunger (OBSOLETE) 1
004 170-5694 Rod End (OBSOLETE) 1
005 170-5695 Pivot Bracket (OBSOLETE) 1
006 999-0822 Screw 1/4-20 x 7/8 hex head plain finish 1
007 170-5696 handle (OBSOLETE) 1
008 170-5697 Handle Grip (OBSOLETE) 1
009 170-5574 Interlock label 1
010 170-5699 Pin (OBSOLETE) 2
011 373-3020 Pin roll 1
012 170-5700 Clamp (OBSOLETE) 1
013 170-5701 Knob (OBSOLETE) 1
014 170-5724 Bolt swing (OBSOLETE) 1
015 170-5703 Cover (OBSOLETE) 1
016 170-5704 Spring (OBSOLETE) 1
017 170-5705 Ring E (OBSOLETE) 2
018 170-0465 Nut 1/4-20 ESNA heavy jam 1
019 170-5706 Large Tube 60 Inches (OBSOLETE) 1
020 999-0714 Nut 1/2-20 hex jam stainless steel 1
021 170-5707 Barrel (OBSOLETE) 1
022 170-5708 O Ring (OBSOLETE) 1
023 170-5709 Spacer (OBSOLETE) 1
024 170-5710 Guide (OBSOLETE) 1
025 170-0269 19 inch solution drain hose 2
026 160-0052 Fitting 1/4 barb x 1/4mp 3
027 170-5711 5/32 Diameter Stainless Steel Ball (OBSOLETE) 1
028 170-5725 Washer (OBSOLETE) 1
029 170-5712 Piston (OBSOLETE) 1
030 170-5713 Piston Spacer (OBSOLETE) 1
031 999-0408 Nut 4-40 plain machine screw 1
032 170-5714 Manifold (OBSOLETE) 1
033 170-5715 Ball Retainer (OBSOLETE) 1
034 999-0062 Nut 10-24 hex 2
035 170-5716 Tube (OBSOLETE) 1
036 170-5717 Clarke Label (OBSOLETE) 1
037 170-5718 Bottle (OBSOLETE) 1
038 170-5719 Nozzle assembly (OBSOLETE) 1
039 170-5720 Nozzle Bracket (OBSOLETE) 1
040 170-5721 Upper Pad (OBSOLETE) 1
041 170-5722 Lower Pad (OBSOLETE) 1
042 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2
043 170-5723 Nozzle Clamp (OBSOLETE) 1
