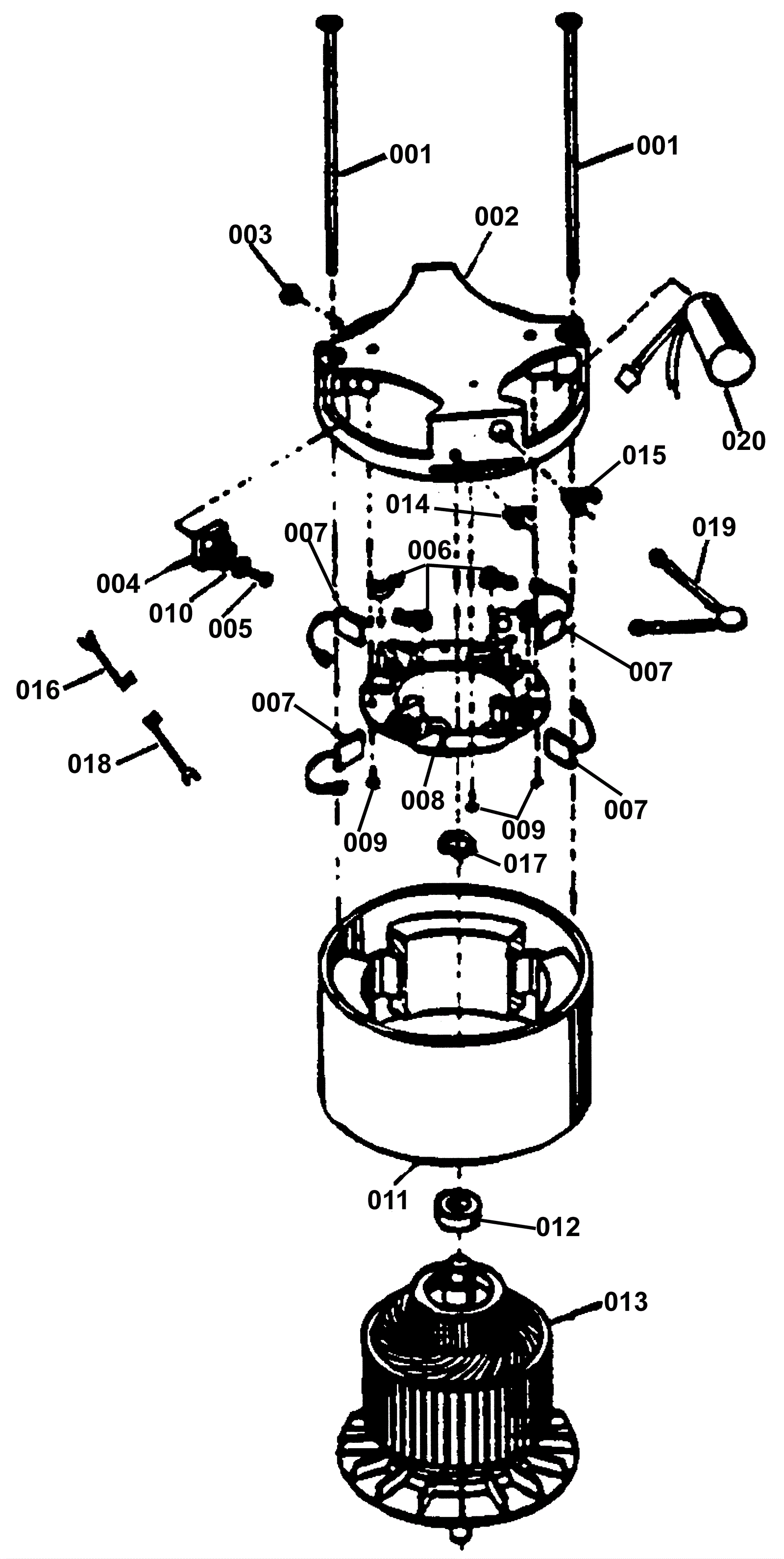

Motor Assembly

#PartDescription ReqNotesAvailability
002 N/A Not available 1
003 170-1501 Nut hex (OBSOLETE) 1
004 999-1192 Screw 3/8-24 x 3/4 hex head stainless steel 1
005 170-1502 Screw (OBSOLETE) 1
006 372-1685 Springs 4
007 N/A Not available 4 (Carbon brush assembly)
008 N/A Not available 1 (Carbon brush assembly)
009 170-1504 Screw 4
010 999-0412 Washer #8 SAE flat 1
011 170-1506 Stator frame (OBSOLETE) 1
012 170-0321 Front end bearing 1
013 170-1507 Armature assembly (OBSOLETE) 1
014 N/A Not available 1
015 N/A Not available 1
016 170-1508 Lead (red) 1
017 170-0379 Wave washer 1
018 170-1509 Lead (yellow) 1
019 170-1510 Varistor 1
020 172-6826 Speed control 1
