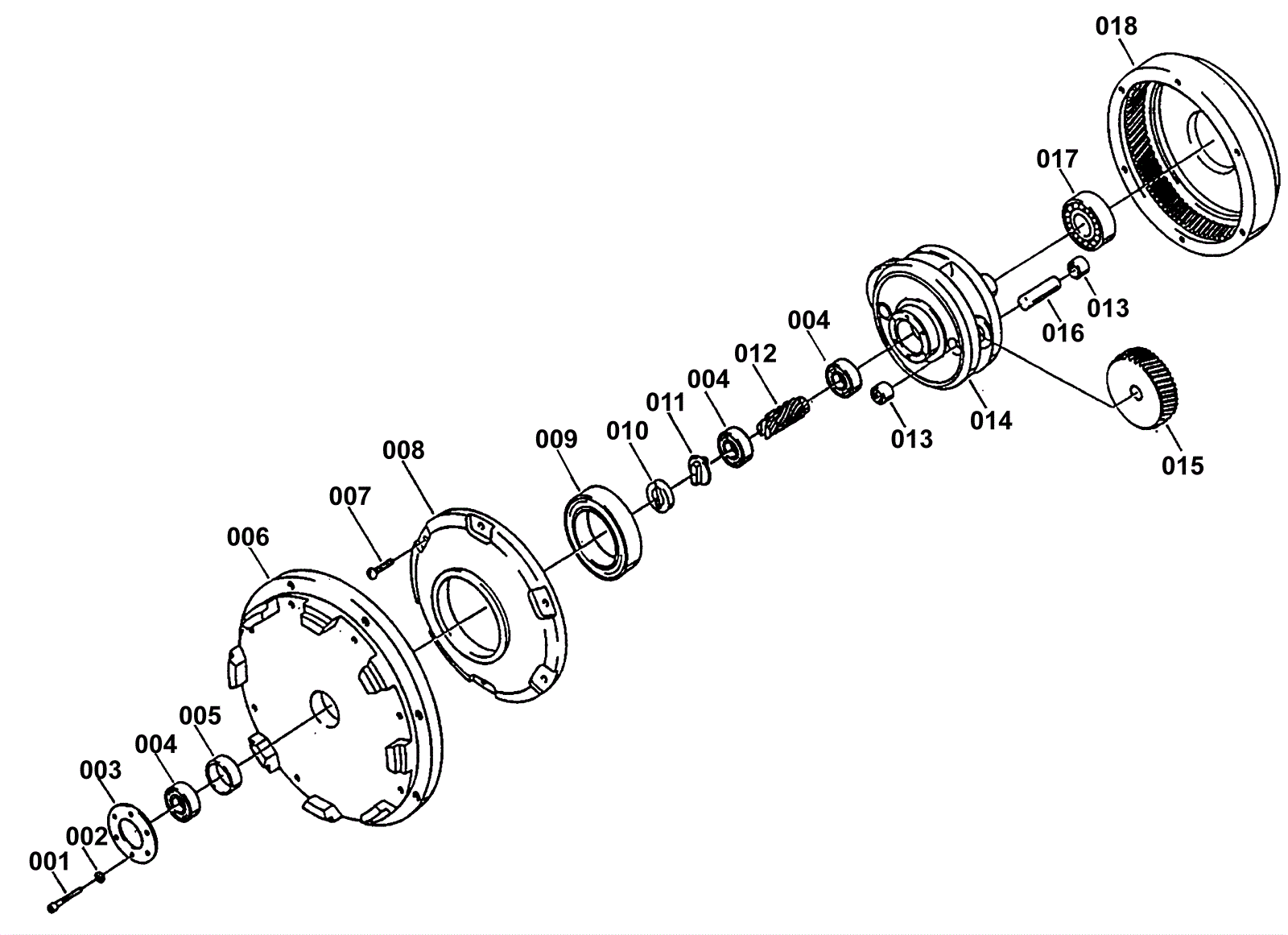

VP-20DS Gearbox Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated $0.90 6 ships same day
002 170-6125 Washer 1/8 lock $1.10 6 usually ships 1-5 days
003 170-0337 Retaining plate $23.46 1 usually ships 1-5 days
004 170-0338 Ball bearing $33.06 3 usually ships 4-15 days
005 170-0339 Sleeve spacer (OBSOLETE) $25.16 1 usually ships 1-5 days
006 N/A Not available Call for price 1 usually ships 30-32 days
007 999-0400 Screw 10-24 x 1 pan head phillips zinc plated $0.90 6 ships same day
008 170-0341 Housing cover (OBSOLETE) $68.95 1 usually ships 1-5 days
009 170-0342 Ball bearing $76.99 1 usually ships 4-15 days
010 170-0343 Shaft retainer $31.30 1 usually ships 4-15 days
011 170-0694 Odum coupling $55.21 1 ships same day
012 170-0345 Pinon $133.29 1 ships same day
013 170-0348 Needle bearing $28.49 6 usually ships 1-5 days
014 N/A Not available Call for price 1 usually ships 30-32 days
015 170-0349 Idle gear $185.31 3 usually ships 1-5 days
016 170-0347 Shaft $22.95 3 usually ships 4-15 days
017 164-0355 Bottom bearing large $35.95 1 ships same day
018 170-1225 Drive housing $324.66 1 usually ships 1-5 days
N/S 170-1542 Gearbox (OBSOLETE) $550.18 1 Not illustrated usually ships 1-5 days
