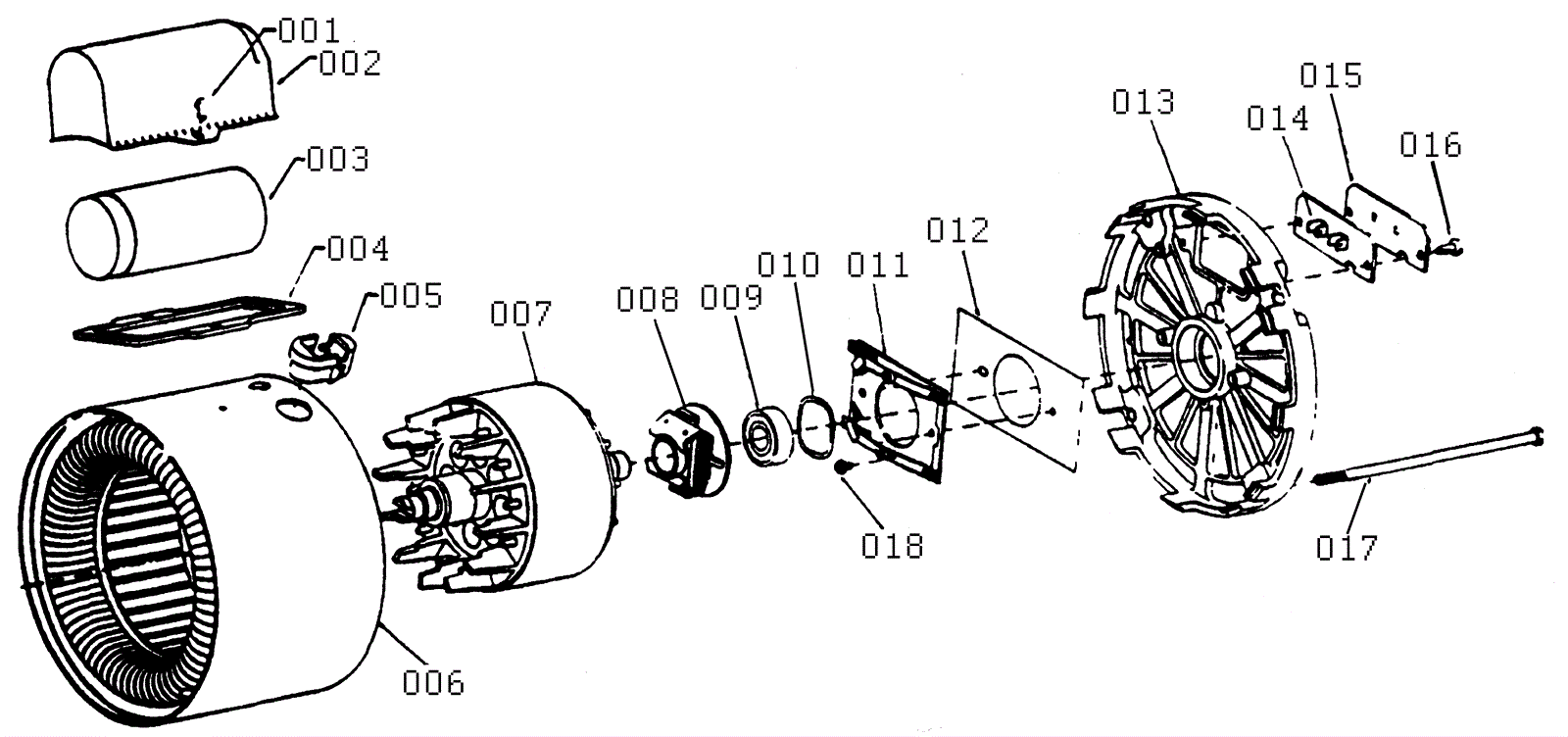

VP-16 Motor Assembly Beginning with SN OK

#PartDescriptionPriceReqNotesAvailability
001 154-3951 Screw #10 x 3/8 inch $1.21 2 usually ships 4-15 days
002 170-0467 Capacitor case (OBSOLETE) $38.02 1 usually ships 1-5 days
004 170-0469 Capacitor case gasket (OBSOLETE) $9.38 1 usually ships 1-5 days
005 170-0470 Strain relief $10.52 1 usually ships 1-5 days
006a 170-0482 115V 1HP motor (Doerr motor) (OBSOLETE) $914.32 1 usually ships 1-5 days
006b 170-6370 50 Hz stator frame assembly (OBSOLETE) $651.31 1 usually ships 1-5 days
007 170-0472 Rotor and shaft assembly (OBSOLETE) $936.18 1 usually ships 1-5 days
008a 170-0473 Centrifugal switch assembly (OBSOLETE) $64.24 1 usually ships 1-5 days
008b 170-6371 50 Hz centrifugal switch (OBSOLETE) $70.09 1 usually ships 1-5 days
009 170-0321 Front end bearing $21.54 1 ships same day
010a 170-0474 Spring wave washer (OBSOLETE) $22.33 1 usually ships 1-5 days
011 170-0475 Stationary switch (OBSOLETE) $98.67 1 usually ships 1-5 days
012 170-0476 Stationary switch insulation (OBSOLETE) $4.57 1 usually ships 1-5 days
013 170-0477 End shaft bracket (OBSOLETE) $201.72 1 usually ships 1-5 days
014 170-0478 Terminal board assembly (OBSOLETE) $54.05 1 usually ships 1-5 days
015 170-0479 Terminal board (OBSOLETE) $8.67 1 usually ships 1-5 days
016 170-0480 Screw 10-32 x 5/16 (OBSOLETE) $25.30 2 usually ships 1-5 days
017 170-0481 Bolt 1/4-28 x 6 3/4 (OBSOLETE) $19.28 4 usually ships 1-5 days
018 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 2 ships same day
