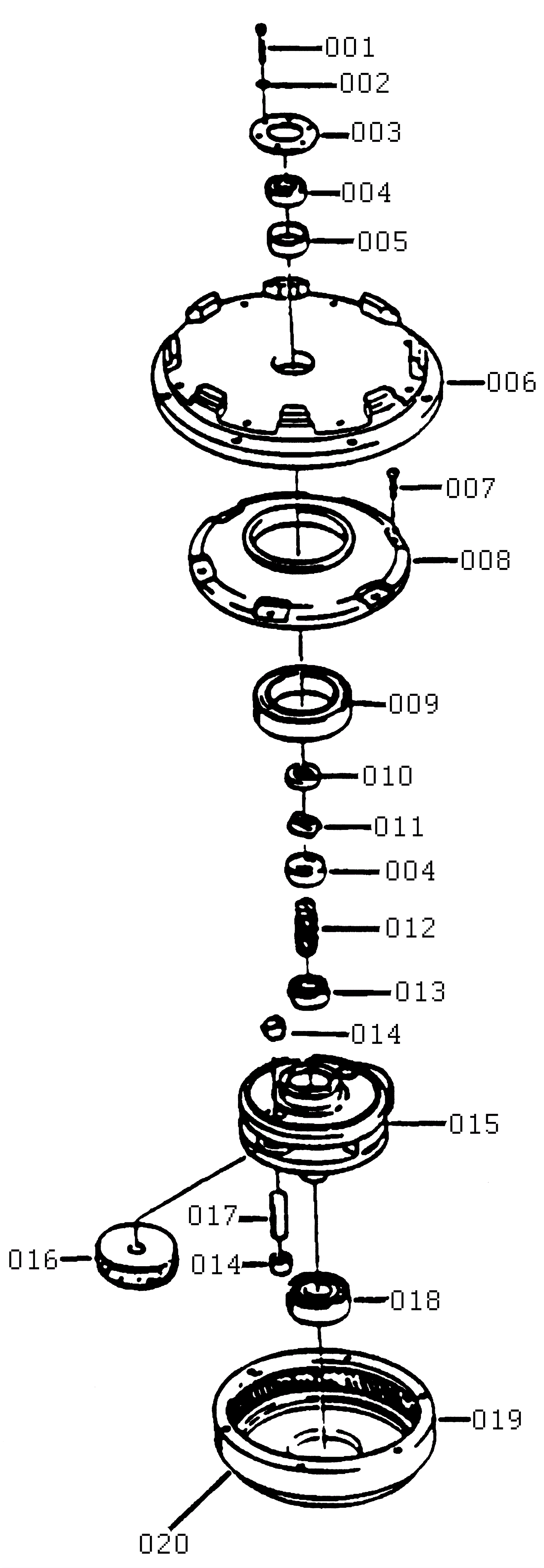

VP-16 Gearbox Assembly Beginning with SN OK

#PartDescription ReqNotesAvailability
001 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated 6 usually ships 11-14 days
002 170-6125 Washer 1/8 lock 6 usually ships 1-5 days
003 170-0337 Retaining plate 1 usually ships 1-5 days
004 170-6365 Bearing (OBSOLETE) 2 usually ships 1-5 days
005 170-0339 Sleeve spacer (OBSOLETE) 1 usually ships 1-5 days
006 170-1224 Mounting plate (OBSOLETE) 1 usually ships 1-5 days
007 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 6 usually ships 11-14 days
008 170-0341 Housing cover (OBSOLETE) 1 usually ships 1-5 days
009 170-0342 Ball bearing 1 usually ships 14-19 days
010 170-0343 Shaft retainer 1 usually ships 14-19 days
011 170-0694 Odum coupling 1 usually ships 13-16 days
012 170-0345 Pinon 1 usually ships 14-19 days
013 170-0338 Ball bearing 1 usually ships 14-19 days
014 170-0348 Needle bearing 4 usually ships 1-5 days
015 170-0350 Gearbox cage (OBSOLETE) 1 usually ships 1-5 days
016 170-0349 Idle gear 2 usually ships 1-5 days
017 170-0347 Shaft 2 usually ships 14-19 days
018 164-0355 Bottom bearing large 1 usually ships 17-22 days
019 170-1225 Drive housing 1 usually ships 1-5 days
020 170-5668 Gear unit gasket 1 usually ships 14-19 days
