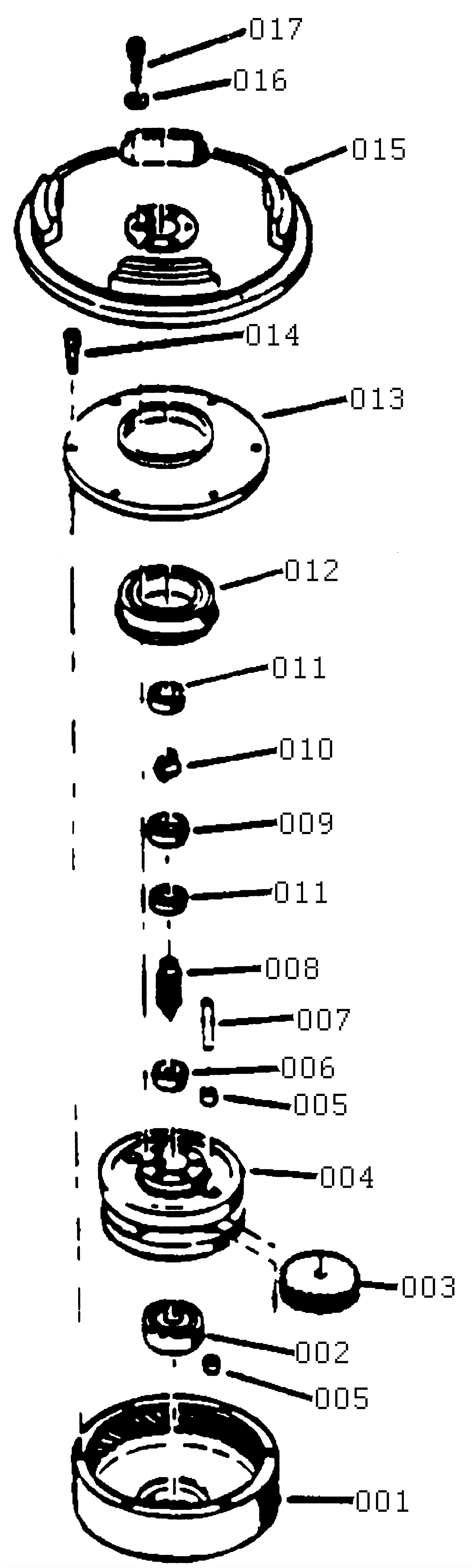

Gearbox Assembly

#PartDescription ReqNotesAvailability
001 170-0487 Housing (OBSOLETE) 1
002 164-0355 Bottom bearing large 1
003 170-0694 Odum coupling 2
004 170-0498 Housing (OBSOLETE) 1
005 170-0348 Needle bearing 4
006 170-0499 Bearing (OBSOLETE) 1
007 170-1218 Shaft (OBSOLETE) 2
008 170-1219 Pinion (OBSOLETE) 1
009 170-0695 Spacer-bearing (OBSOLETE) 1
010 170-0694 Odum coupling 1
011 170-0338 Ball bearing 1
012 170-0342 Ball bearing 1
013 170-1220 Cover (OBSOLETE) 1
014 170-1221 Screw socket head cap (OBSOLETE) 6
015 170-1222 Adapter (OBSOLETE) 1
016 170-6125 Washer 1/8 lock 6
017 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated 6
